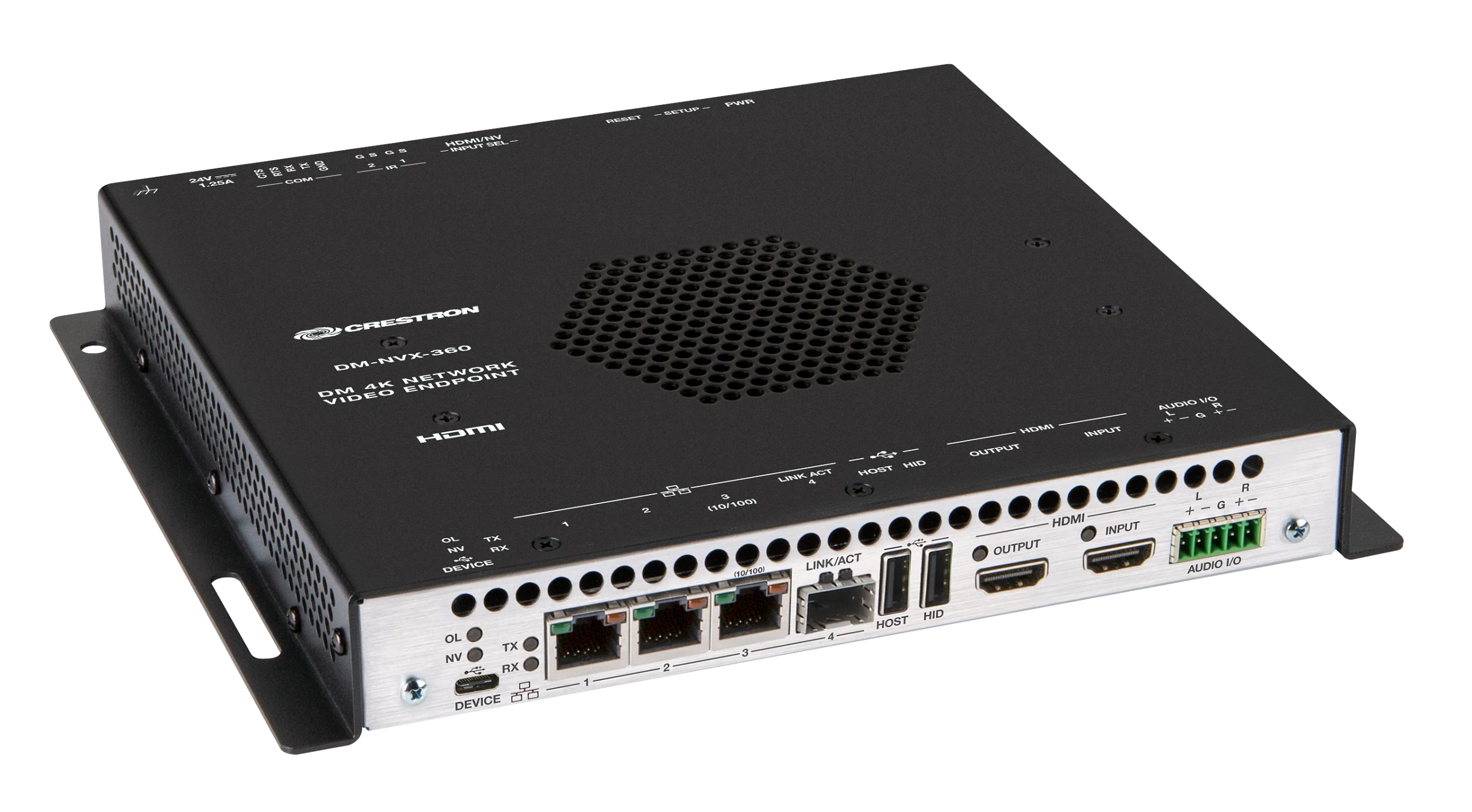

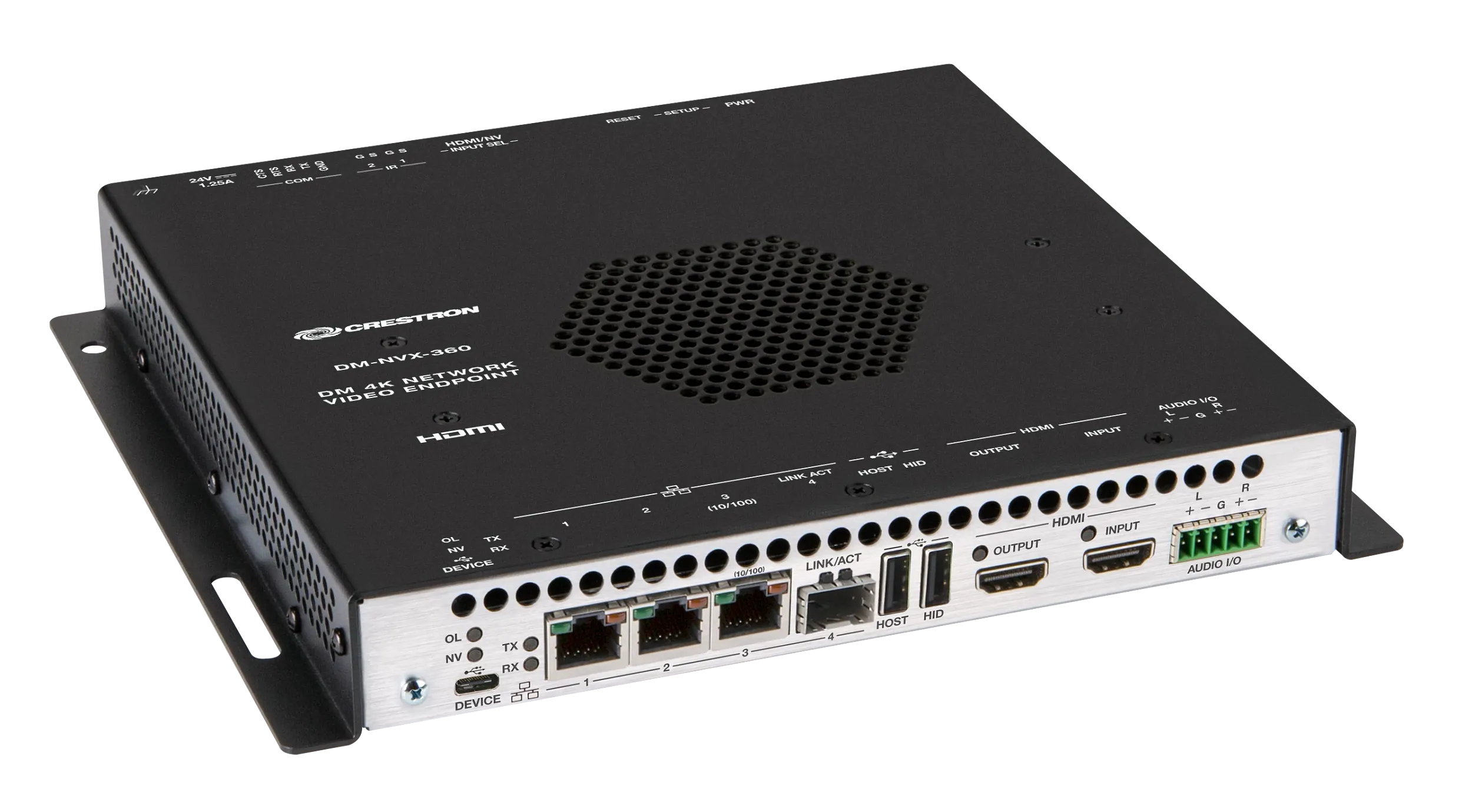

4K60 4:4:4 videoyu standart Gigabit Ethernet üzerinden algılanabilir bir gecikme veya kalite kaybı olmadan aktaran güvenilir, yüksek performanslı IP üzerinden AV kodlayıcı veya kod çözücü. Dahili ölçeklendirme ve video duvarı işleme, uyarlanabilir bit hızı, AES67 iletme ve alma özelliği, USB ve KVM yönlendirme ve isteğe bağlı fiber bağlantısıyla HDR (Yüksek Dinamik Aralık) ve HDCP 2.3'ü destekler. Kurumsal ve kampüs çapındaki içerik dağıtım uygulamaları için güvenli, ölçeklenebilir bir 4K sinyal yönlendirme çözümü sağlar.
Teknik Özellikler
| Stream Type | Encoder: Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series 11 Decoder: Pixel Perfect Processing or DM-NVX-E10/E20 Series 11 |
|---|---|
| Video Resolutions | Up to 4096×2160@60Hz (DCI 4K60); 4:4:4 color sampling; HDR10, HDR10+, Dolby Vision, and Deep Color support |
| Audio Formats | Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), 2-channel LPCM 12 |
| Bit Rates | Encoder: Fixed (200 to 950 Mbps – user specified) 5 , Adaptive (dependent on input resolution of the stream), or Variable (less than 150 Mbps to maximum of 750 Mbps, dependent on content and input resolution of the stream) Decoder: Based on the stream received from the encoder |
| Streaming Protocols | RTP, SDP |
| Container | MPEG-2 transport stream (.ts) |
| Session Initiation | Multicast via secure RTSP |
| Copy Protection | HDCP 2.3 |
| Output Signal Types | HDMI, analog stereo 6 |
| Switcher | 2×1 in decoder mode (HDMI, Stream), manual or auto-switching, limited audio breakaway 7 , Crestron QuickSwitch HD™ technology |
| Scaler (Decoder Mode Only) | 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, HDR10, HDR10+, and Dolby Vision support, widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1), video wall processing up to 8 wide x 8 high |
| Resolutions | Common resolutions are listed in the following table. |
| Input Signal Types | HDMI (Dual-Mode DisplayPort interface compatible 14 ), analog stereo 6 |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels |
| Analog Formats | Stereo 2-channel |
| Analog-To-Digital Conversion | 24-bit 48 kHz |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| AES67 | 24-bit 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >90 dB |
| Analog Output Volume Adjustment | −80 to +20 dB |
| Ethernet | Auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, IPv4 only or both IPv4 and IPv6, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron 3-Series or later control system integration |
| USB | USB 2.0 host or device signal extension and routing, Layer 2 or Layer 3 |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking via control system |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL (0-5 V) up to 19.2k baud (via control system) |
| HDMI | HDCP 2.3, EDID, CEC |
| DM NVX (via Ethernet) | HDCP 2.3, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction) |
| USB DEVICE | (1) USB 2.0 Type-C ™ connector, female; USB 2.0 device port; USB signal extender port for connection to a computer or other USB 2.0 host 9,10 |
| USB HOST | (1) USB Type-A connector, female; USB 2.0 host port; USB signal extender port for connection to a mouse, keyboard, or other USB 2.0 device; 9 Available Power: 500 mA at 5 VDC 15 |
| USB HID | 1) USB Type-A connector, female; USB 2.0 host port; USB signal extender port for connection to a mouse, keyboard, or other USB 2.0 device; Available Power: 500 mA at 5 VDC 15 |
| Ethernet 1 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port ;2 PoE+ PD (powered device) port, IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant 8, 16 |
| Ethernet 2 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port 2 |
| Ethernet 3 (10/100) | (1) 8-pin RJ-45 connector, female; 100BASE-TX Ethernet port |
| Ethernet 4 | (1) SFP port; Accepts one Crestron SFP-1G Series transceiver module 3 |
| HDMI OUTPUT | (1) Green LED, indicates video signal transmission at the HDMI output |
| HDMI INPUT | (1) Green LED, indicates sync detection at the HDMI input |
| AUDIO I/O | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio input or output ;6 Input Impedance: 24k Ohms balanced/unbalanced; Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
| IR 1 – 2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR/Serial ports; IR output up to 1.1 MHz; 1-way serial TTL (0-5 V) up to 19200 baud; IRP2 emitter sold separately |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW-2412WU power pack (sold separately) |
| G | (1) 6-32 screw; Chassis ground lug |
| PWR | (1) Bi-color green/amber LED, indicates operating power is being supplied, lights amber while booting and green when operating |
| SETUP | (1) Red LED and (1) push button, displays onscreen IP address and also used to change operating mode (TX or RX) |
| RESET | (1) Recessed push button, reboots the device |
| INPUT SEL | (1) Push button, enables manual input selection; (2) Bi-color green/amber LEDs, indicate the current active input and signal presence at each corresponding input (HDMI and NV) |
| OL | (1) Green LED, indicates an online connection to a control system via Ethernet |
| NV | (1) Green LED, indicates unit is encoding (transmitting) or decoding (receiving) network video |
| TX | (1) Green LED, indicates unit is in encoder (transmitter) mode |
| RX | (1) Green LED, indicates unit is in decoder (receiver) mode |
| Ethernet 1-2 | (2) LEDs per port, green indicates Ethernet link status, amber indicates Ethernet activity |
| Ethernet 3 | (2) LEDs, amber indicates Ethernet link status, green indicates Ethernet activity |
| Ethernet 4 LNK | (1) Green LED, indicates Ethernet link status |
| Ethernet 4 ACT | (1) Green LED, indicates Ethernet activity |
| PoE+ | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant; Compatible with Crestron DM-PSU-ULTRA-MIDSPAN , PoE+ compliant Ethernet switch, or third-party IEEE 802.3at compliant PSE 16 |
| Power Pack (Optional) | Input: 1.5 A maximum @ 100-240 VAC, 50/60 Hz Output: 1.25 A @ 24 VDC Model: PW-2412WU (sold separately) |
| Power Consumption | 20 W typical |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 74 BTU/hr |
| Acoustic Noise | 33 dBA typical |
| Chassis | Metal, black finish, integral mounting flanges, fan cooled; vented top, front, rear, and sides |
| Mounting | Freestanding, surface mount, or attachment to a single rack rail |
| Height | 8.61 in. (219 mm) |
| Width | 9.27 in. (236 mm) |
| Depth | 1.25 in. (32 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde video endpoint çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NVX-360 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
