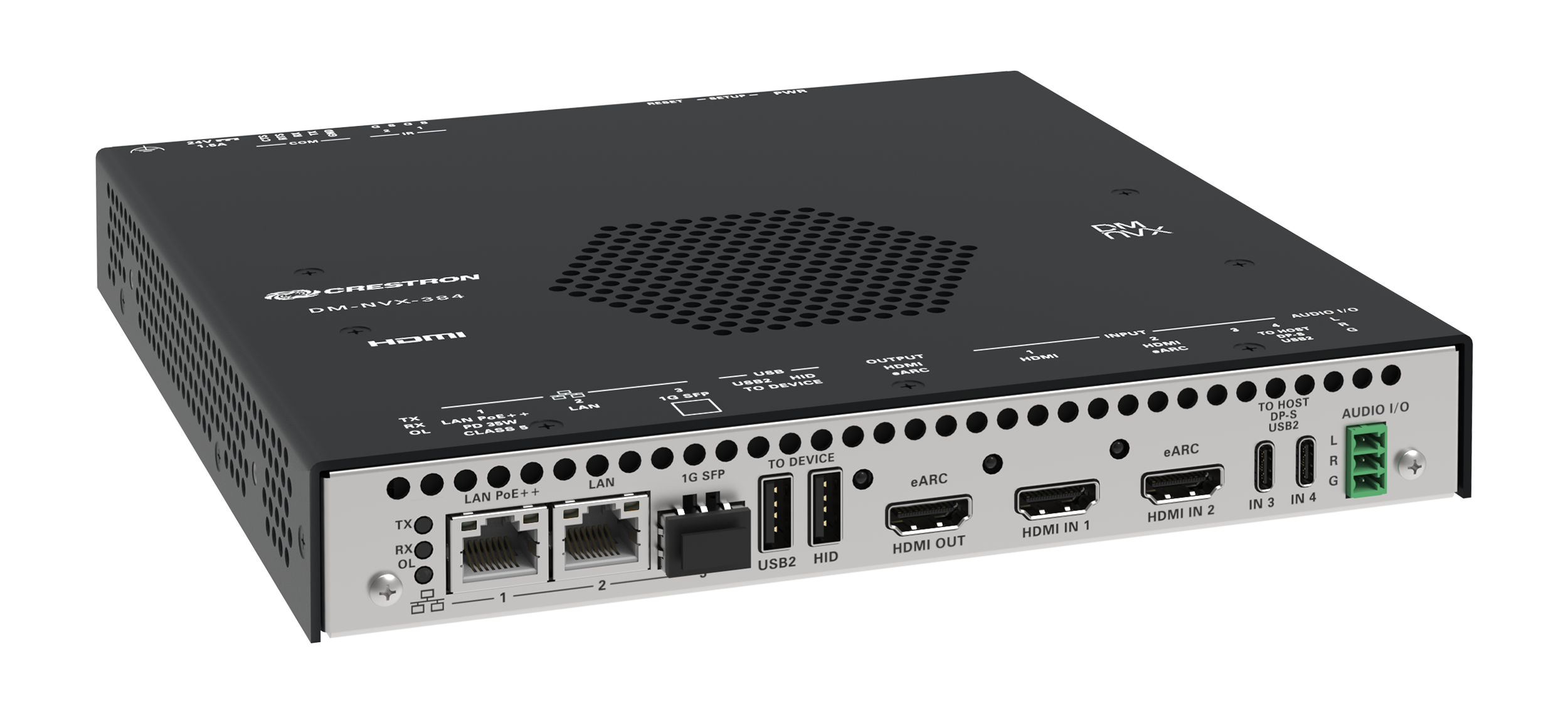

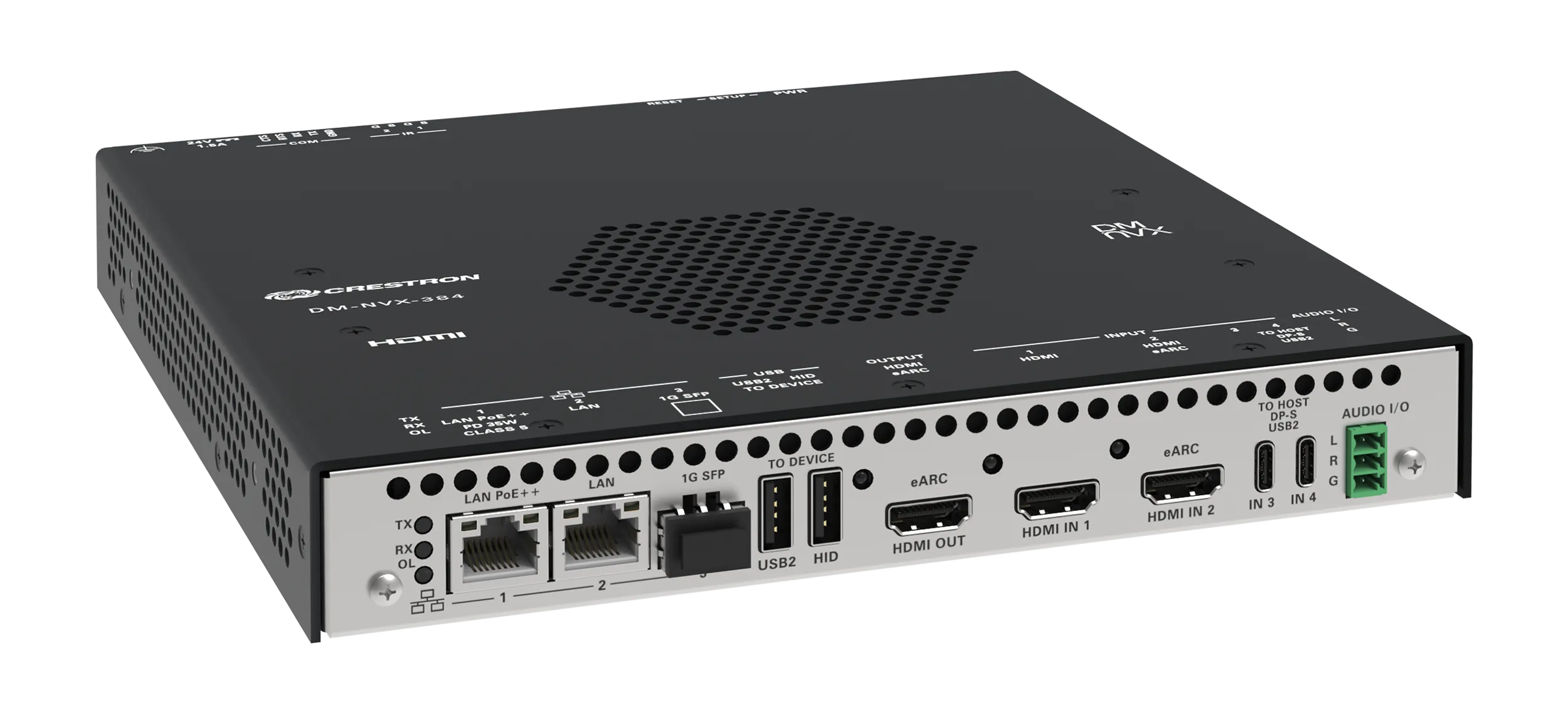

Standart Gigabit Ethernet üzerinden 5K'ya kadar videoyu algılanabilir bir gecikme veya kalite kaybı olmadan aktaran, yerleşik 4×1 HDMI® ve USB‑C® giriş değiştiriciye sahip, güvenilir, yüksek performanslı IP üzerinden AV kodlayıcı veya kod çözücü. Dahili ölçeklendirme ve video duvarı işleme, uyarlanabilir bit hızı, surround ses desteği, yerel AES67 iletme ve alma özelliği, USB ve KVM yönlendirme ve isteğe bağlı fiber bağlantısıyla HDR (Yüksek Dinamik Aralık) ve HDCP 2.3'ü destekler. Kurumsal ve kampüs çapındaki içerik dağıtım uygulamaları için güvenli, ölçeklenebilir bir 5K sinyal yönlendirme çözümü sağlar.
Teknik Özellikler
| Video Codec | Encoder: Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series 11 , H.264 AV-over-IP streaming; Decoder: Pixel Perfect Processing or DM-NVX-D10/D20 Series 11 |
|---|---|
| Video Resolutions | Up to 5120×2160 @30 Hz (5K Ultra-Wide) or 5120×1440 @60 Hz (5K Super‑Wide); Up to 4:4:4 color sampling; HDR10, HDR10+, Dolby Vision, and Deep Color support |
| Audio Formats | Primary multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), secondary 2-channel LPCM 12 |
| Bit Rates | 200 to 950 Mbps 10 |
| Streaming Protocols | RTP, SDP |
| Container | MPEG-2 transport stream (.ts) |
| Session Initiation | Multicast via secure RTSP |
| Copy Protection | HDCP 2.3 |
| Input Signal Types | HDMI (Dual-Mode DisplayPort interface compatible 14 ), DisplayPort over USB-C (DisplayPort Alt Mode), 15 eARC (via HDMI OUT ), AES67 (2-channel), BTS (multichannel network stream), analog stereo 6 |
| Output Signal Types | HDMI (multichannel pass-through), eARC (via HDMI IN 2 ), AES67 (2-channel), BTS (multichannel network stream), analog stereo (2-channel) |
| Switcher | 4×1 in encoder mode (Two HDMI, Two USB-C), manual or auto-switching, breakaway audio, 7 Crestron QuickSwitch HD™ technology 5×1 in decoder mode (HDMI, Stream), manual or auto-switching, breakaway audio, 7 Crestron QuickSwitch HD™ technology |
| Scaler (Decoder Mode Only) | 5K video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, HDR10, HDR10+, and Dolby Vision support, widescreen format selection (zoom, stretch, maintain aspect ratio, or 1:1), video wall processing up to 8 wide x 8 high, static or dynamic text overlay |
| Maximum Resolutions | Common resolutions are shown in the table below. Custom resolutions are supported at pixel clock rates up to 600 MHz. |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels |
| Analog Formats | Stereo 2-channel |
| Analog-to-Digital Conversion | 24-bit, 48 kHz |
| Digital-to-Analog Conversion | 24-bit, 48 kHz |
| AES67 or DM NAX Audio-over-IP | 24-bit, 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >90 dB |
| Analog Output Volume Adjustment | -80 to +20 dB |
| Ethernet | Auto-switching, auto-negotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, IPv4, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron 3-Series or later control system integration |
| USB | USB 2.0 host or device signal extension and routing, Layer 2 or Layer 3 |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL (0-5 V) up to 19.2k baud (via control system) |
| HDMI | HDCP 2.3, EDID, CEC, ARC, eARC |
| USB-C (DisplayPort Alt Mode) 15 | HDCP 2.3, EDID, USB 2.0 |
| DM NVX (via Ethernet) | HDCP 2.3, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction) |
| USB2 TO DEVICE | (1) USB Type-A connector, female; USB 2.0 device port; USB signal extender port for connection to a mouse, keyboard, or other USB 2.0 device; 9 Available Power: 500mA at 5 VDC 16 |
| HID TO DEVICE | (1) USB Type-A connector, female; USB 2.0 device port; USB signal extender port for connection to a USB HID compliant mouse, keyboard, or other USB HID compliant device; Available Power: 500mA at 5VDC 16 |
| Ethernet 1 (LAN PoE++) | (1) 8-pin 8P8C connector, female; 100BASE-TX/1000BASE-T Ethernet port; 2 PoE++ PD (powered device) port, IEEE 802.3bt Type 3 Class 6 (60 W) compliant 8, 17 |
| Ethernet 2 (LAN) | (1) 8-pin 8P8C connector, female; 100BASE‑TX/1000BASE‑T Ethernet port 2 |
| Ethernet 3 (1G SFP) | (1) SFP port; Accepts one Crestron SFP-1G Series transceiver module 3 |
| HDMI OUT (eARC) | (1) HDMI Type A connector, female; HDMI digital video/audio output 1 (DVI compatible 14 ); eARC audio return support |
| HDMI IN 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input; 1 (DVI and Dual-Mode DisplayPort interface compatible 14 ) |
| HDMI IN 2 (eARC) | (1) HDMI Type A connector, female; HDMI digital video/audio input; 1 (DVI and Dual-Mode DisplayPort interface compatible 14 ); eARC audio output support |
| TO HOST DP‑S USB2 (IN 3-4) | (2) USB Type-C® connectors, female; USB 2.0 host ports; USB signal extender ports for connection to a computer or other USB 2.0 host; DisplayPort single stream video inputs 15 |
| AUDIO I/O | (1) 3-pin 3.5 mm detachable terminal block; Unbalanced stereo line-level audio input or output; 6 Input Impedance: 24 kΩ; Maximum Input Level: 2Vrms; Output Impedance: 100 Ω; Maximum Output Level: 2Vrms |
| IR 1-2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR/Serial ports; IR output up to 1.1 MHz; 1-way serial TTL (0-5 V) up to 19200 baud; IRP2 emitter sold separately |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| 24VDC 1.5A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2420RU power pack (sold separately) |
| G | (1) 6-32 screw; Chassis ground lug |
| PWR | (1) Bicolor green/amber LED, indicates operating power is being supplied; Amber indicates device is booting; Green indicates device is operational |
| SETUP | (1) Red LED and (1) push-button for onscreen IP address display and changing operating modes (TX or RX) |
| RESET | (1) Recessed push-button for hardware reset |
| OL | (1) Green LED, indicates an online connection to a control system via Ethernet |
| TX | (1) Green LED, indicates unit is in encoder (transmitter) mode |
| RX | (1) Green LED, indicates unit is in decoder (receiver) mode |
| Ethernet 1-3 | (2) LEDs per port; Left amber indicates 1 Gbps Ethernet link; Left green indicates 100 Mbps Ethernet link; Amber indicates Ethernet activity |
| HDMI OUT | (1) Green LED, indicates video signal transmission at the HDMI output |
| HDMI IN 1-2 | (2) Green LEDs, indicates sync detection at the HDMI inputs |
| PoE++ | IEEE 802.bt Type 3 Class 6 (60 W) compliant; Compatible with PoE++ compliant Ethernet switch or third-party IEEE 802.3bt compliant PSE 17 |
| Power Pack (Optional) | Input: 1.5 A maximum @ 100-240 VAC, 50/60 Hz; Output: 2.5 A @ 24 VDC; Model: PW‑2420RU (sold separately) |
| Power Consumption | 35 W typical |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 85 BTU/hr |
| Acoustic Noise | 33 dBA typical |
| Chassis | Metal, black finish, integral mounting flanges, fan cooled; Vented top, front, rear, and sides |
| Mounting | Freestanding, surface mount, or attachment to a single rack rail |
| Height | 8.21 in. (209 mm) |
| Width | 8.21 in. (209 mm) |
| Depth | 1.22 in. (31 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde video endpoint çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NVX-384 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
