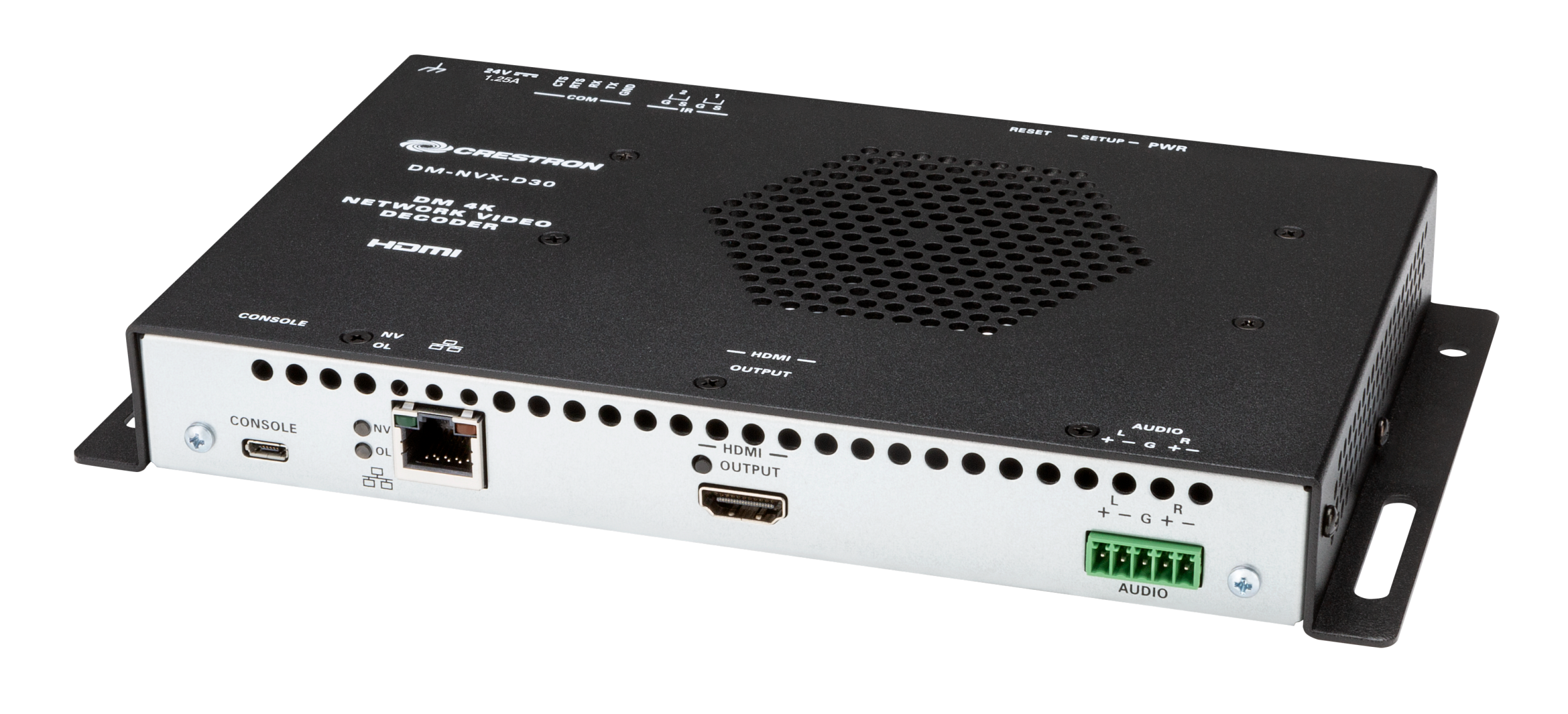

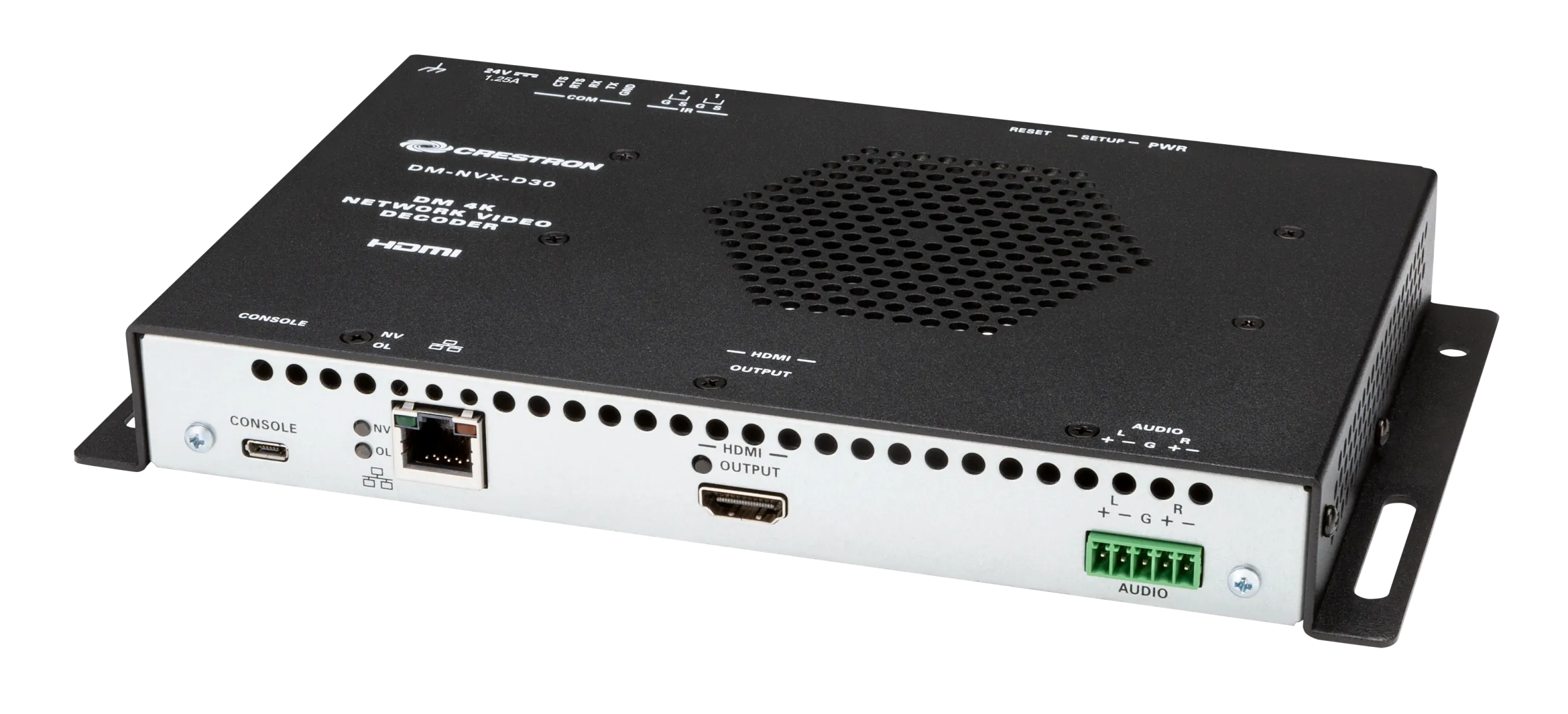

Standart Gigabit Ethernet üzerinden 4K60 4:4:4 videoyu algılanabilir bir gecikme veya kalite kaybı olmadan alan, güvenilir, yüksek performanslı IP üzerinden AV kod çözücü. HDR (Yüksek Dinamik Aralık) ve HDCP 2.3'ü destekler. Kurumsal ve kampüs çapında içerik dağıtım uygulamaları için güvenli bir 4K sinyal yönlendirme çözümü sağlar.
Teknik Özellikler
| Stream Type | Pixel Perfect Processing or DM-NVX-E10/E20 Series 5 |
|---|---|
| Video Resolutions | Up to 4096×2160@60Hz (DCI 4K60), 4:4:4 color sampling, HDR10, HDR10+, Dolby Vision®, and Deep Color support |
| Audio Formats | Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound) |
| Bit Rates | Based on the stream received from the encoder 6 |
| Streaming Protocols | RTP, SDP |
| Container | MPEG-2 transport stream (.ts) |
| Session Initiation | Multicast via secure RTSP |
| Copy Protection | HDCP 2.3 |
| Output Signal Types | HDMI, analog stereo 3 |
| Resolutions | Common resolutions are listed in the following table. |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels |
| Analog Formats | Stereo 2-channel |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| AES67 | 24-bit 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >90 dB |
| Analog Output Volume Adjustment | −80 to +20 dB |
| Ethernet | (2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity |
| USB | USB 2.0 computer console (for setup) |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system); computer console (for setup) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system) |
| HDMI | HDCP 2.3, EDID, CEC |
| DM NVX (via Ethernet) | HDCP 2.3, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction) |
| HDMI OUTPUT | (1) Green LED, indicates video signal transmission at the HDMI output |
| AUDIO | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output 3 ; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
| CONSOLE, USB | (1) Micro USB connector, female; USB 2.0 computer console port (for setup) |
| IR 1 – 2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR/Serial ports; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 V) up to 19200 baud; IRP2 emitter sold separately |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW-2412WU power pack (sold separately) |
| G | (1) 6-32 screw; Chassis ground lug |
| NV | (1) Green LED, indicates unit is decoding (receiving) network video |
| OL | (1) Green LED, indicates an online connection to a control system via Ethernet |
| PWR | (1) Bi-color green/amber LED, indicates operating power supplied via PoE+ or optional power pack (sold separately), lights amber while booting and green when operating |
| SETUP | (1) Red LED and (1) push button, displays onscreen IP address |
| RESET | (1) Recessed push button, reboots the device |
| PoE+ | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant; Compatible with Crestron DM-PSU-ULTRA-MIDSPAN , PoE+ compliant Ethernet switch, or approved third-party PSE |
| Power Pack (Optional) | Input: 0.8 A maximum @ 100-240 VAC, 50/60 Hz; Output: 1.25 A @ 24 VDC; Model: PW-2412WU (sold separately) |
| Power Consumption | 16 W typical |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 48 BTU/hr |
| Acoustic Noise | 33 dBA typical |
| Chassis | Metal, black finish, integral mounting flanges, fan cooled; vented top, front, rear, and sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Height | 5.41 in. (138 mm) |
| Width | 9.27 in. (236 mm) |
| Depth | 1.15 in. (30 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde video endpoint çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NVX-D30 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
