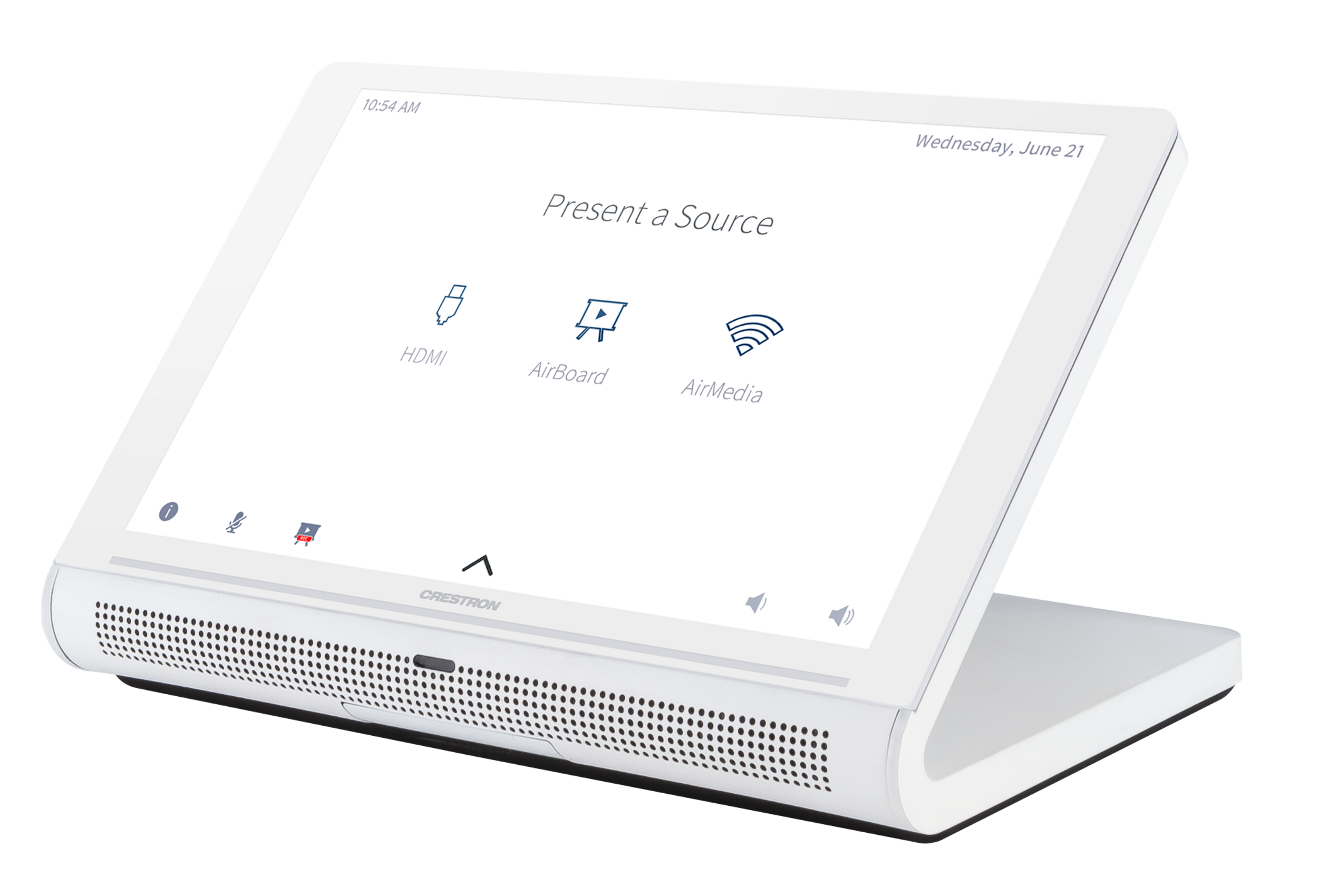

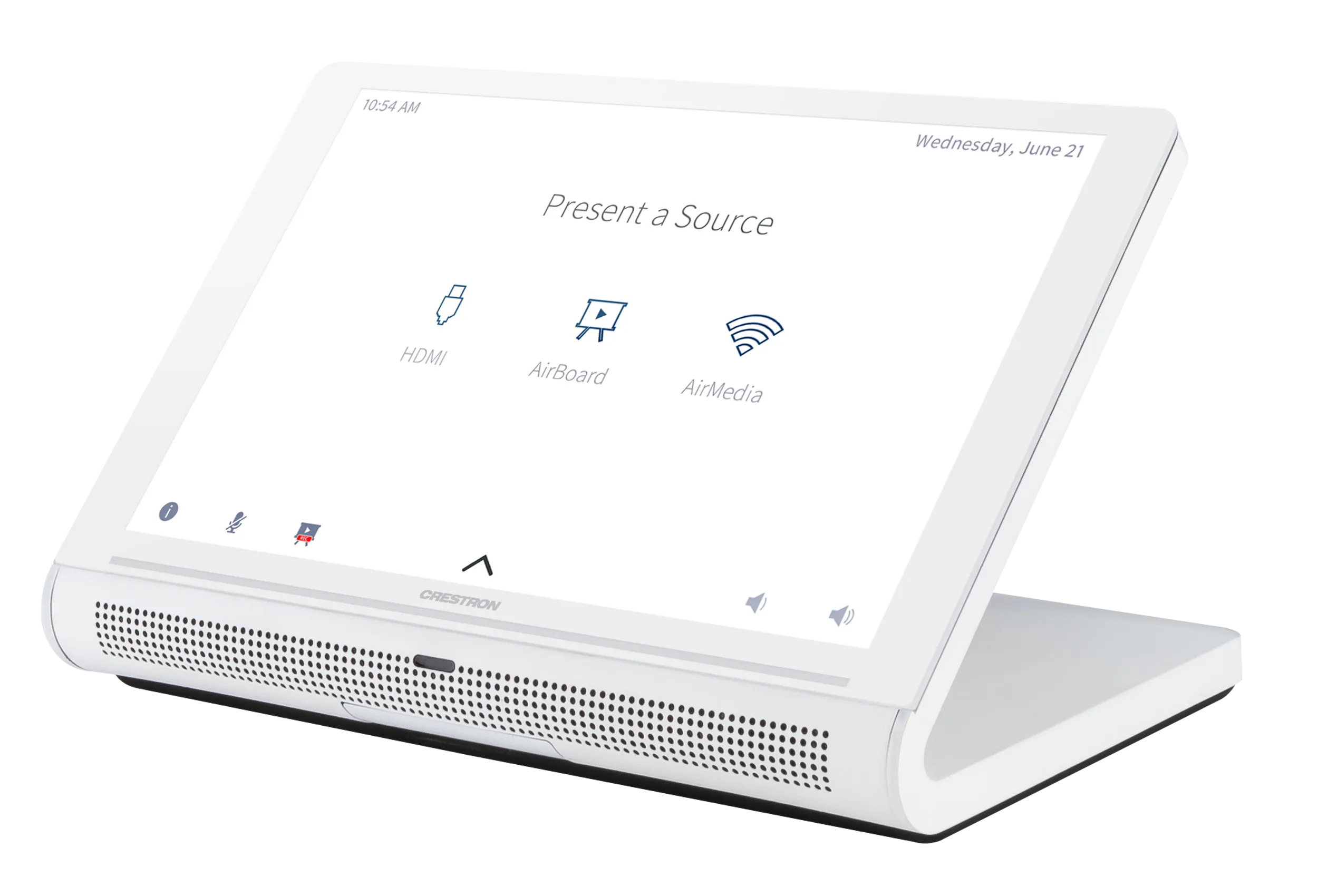

Crestron TS-770-W-S — 7 inç Masaüstü Dokunmatik Ekran, Beyaz Pürüzsüz

Crestron TS-770-W-S — 7 inç Masaüstü Dokunmatik Ekran, Beyaz Pürüzsüz

Web’de gezinme, Crestron HTML5 ve Smart Graphics® yazılım teknolojisi, özel programlanabilir simgeler, H.265/H.264 video akışı, Rava® SIP interkomu, Wi‑Fi ağ® bağlantısı ve PoE+ (Power over Ethernet Plus) ağ gücü özelliklerine sahip şık ve çok yönlü bir masaüstü dokunmatik ekran. Oda planlama, konfe

Stok kodu: TS-770-W-S Kategoriler:

Web'de gezinme, Crestron HTML5 ve Smart Graphics® yazılım teknolojisi, özel programlanabilir simgeler, H.265/H.264 video akışı, Rava® SIP interkomu, Wi‑Fi ağ® bağlantısı ve PoE+ (Power over Ethernet Plus) ağ gücü özelliklerine sahip şık ve çok yönlü bir masaüstü dokunmatik ekran. Oda planlama, konferans ve ev kontrolü için yerleşik uygulamalar sağlanır.

Öne Çıkan Özellikler

  • Yeni nesil Crestron® masaüstü dokunmatik ekran
  • 7 inç (178 mm) geniş ekran aktif matris renkli ekran ve 1280 x 800 WXGA ekran çözünürlüğü
  • Kapasitif dokunmatik ekran
  • Özel programlanabilir sanal kontrol düğmeleri
  • Crestron HTML5 ve Smart Graphics® yazılımı özel kullanıcı projelerini destekler
  • Dahili Rava® SIP interkom
  • Dahili hoparlörler ve mikrofon
  • H.265, H.264 veya MJPEG akışlı video ekranı
  • Crestron Home® İşletim Sistemi, Sonos® ev ses kontrolü, Zoom Rooms™ konferans kontrolü ve çeşitli oda planlama hizmetleri için yerel uygulamalar
  • Dahili Bluetooth® iletişim işaretçisi
  • Yerleşik web tarama
  • PoE veya PoE+ gücüyle tek kablolu Ethernet bağlantısı
  • Wi‑Fi® ağ bağlantısı
  • Oda müsaitliği aksesuarları için USB 2.0 bağlantı noktası
  • Kurumsal düzeyde güvenlik ve kimlik doğrulama

Teknik Özellikler

Display Type TFT active matrix color LCD
Size 7 in. (178 mm) diagonal
Aspect Ratio 16:10 WXGA
Resolution 1280 x 800 pixels
Brightness 350 nits (cd/m²)
Contrast 850:1
Color Depth 24 bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80° horizontal, ±80° vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Hard Keys (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions
Reset (1) Pin hole on bottom for hardware reset
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) 4
Third-Party Apps Includes support for various third-party scheduling applications. 5,6
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
Onscreen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Voice Recognition 1 Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
Web Browser 1 Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling 4 Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
RAM 2 GB LPDDR3
Storage Firmware/Application: 16 GB eMMC pSLC
Maximum Project Size 600 MB
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
USB (1) USB Type A connector, female; USB 2.0 host port
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50 ft (15 m), subject to site-specific conditions
Bluetooth® Hardware Crestron Bluetooth beacon 2,8
Video Formats H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Audio Formats AAC stereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920×1080@30fps
Protocol RTSP
Features Built-in microphone and speakers, Rava® SIP Intercom, voice recognition 1,2
Audio Feedback Formats MP3
LAN PoE (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
PoE (Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44 BTU/hr
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Height 4.02 in. (102 mm)
Width 6.87 in. (175 mm)
Depth 4.37 in. (111 mm)

Kullanım Alanları

  • Kurumsal ve ticari projelerde dokunmatik paneller çözümü
  • Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
  • Profesyonel kurulum ve merkezi yönetim

Sıkça Sorulan Sorular

Crestron TS-770-W-S Türkiye’de satılıyor mu?

Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.

Teknik destek ve kurulum sağlanıyor mu?

Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.

Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.

Marka

Crestron
Display Type

TFT active matrix color LCD
Size

7 in. (178 mm) diagonal
Aspect Ratio

16:10 WXGA
Resolution

1280 x 800 pixels
Brightness

350 nits (cd/m²)
Contrast

850:1
Color Depth

24 bit, 16.7M colors
Illumination

Edgelit LED with auto brightness control
Viewing Angle

±80° horizontal, ±80° vertical
Touch Screen

Projected capacitive, 5-point multitouch capable
Hard Keys

(6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions
Reset

(1) Pin hole on bottom for hardware reset
Crestron Scheduling App

Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) 4
Third-Party Apps

Includes support for various third-party scheduling applications. 5,6
Smart Graphics

Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
Onscreen Keyboard

Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Voice Recognition 1

Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey)
Web Browser 1

Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling 4

Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
RAM

2 GB LPDDR3
Storage

Firmware/Application: 16 GB eMMC pSLC
Maximum Project Size

600 MB
Ethernet

100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
USB

(1) USB Type A connector, female; USB 2.0 host port
Transceiver

IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security

64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range

Up to 50 ft (15 m), subject to site-specific conditions
Bluetooth® Hardware

Crestron Bluetooth beacon 2,8
Video Formats

H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Audio Formats

AAC stereo
