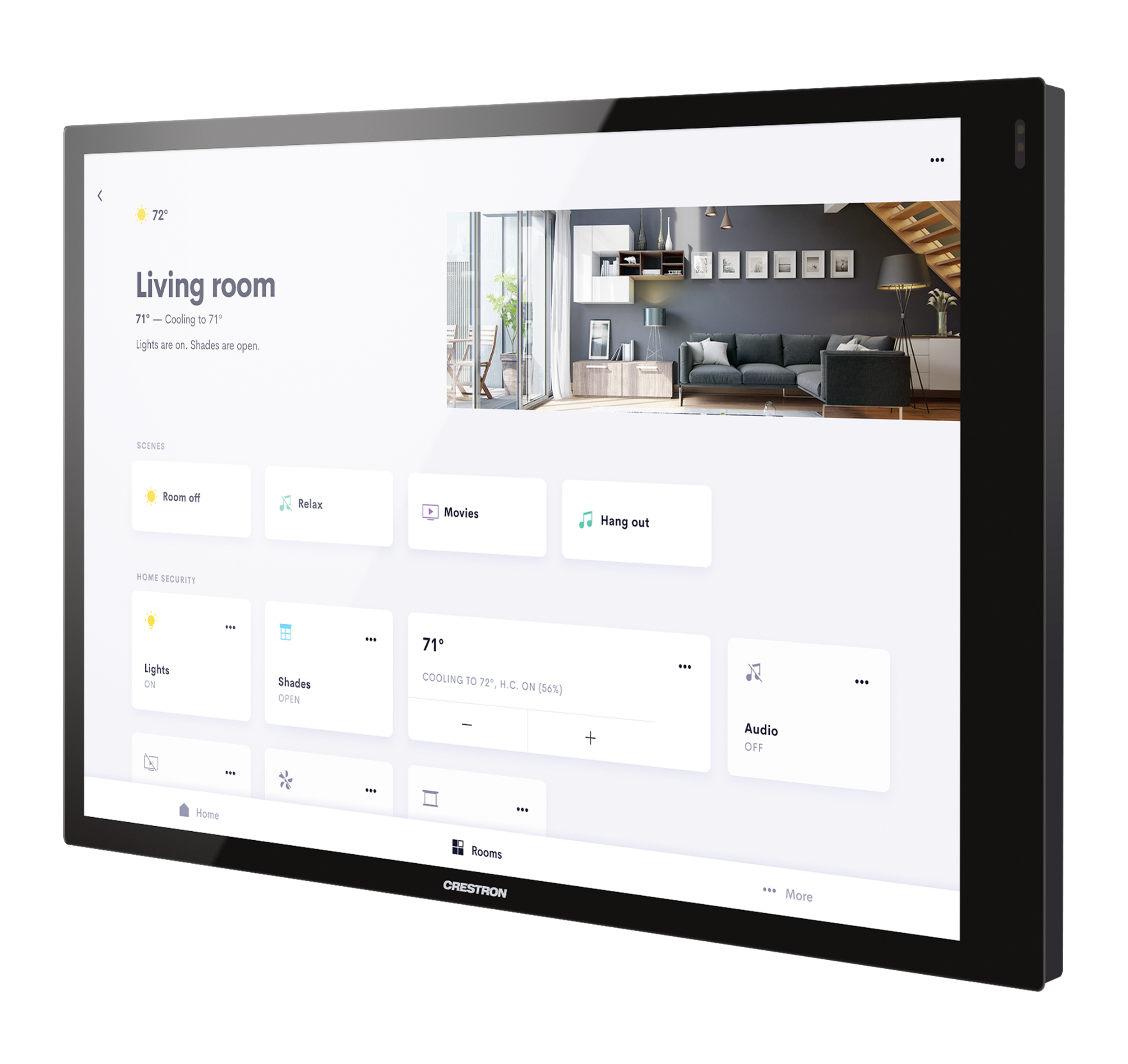

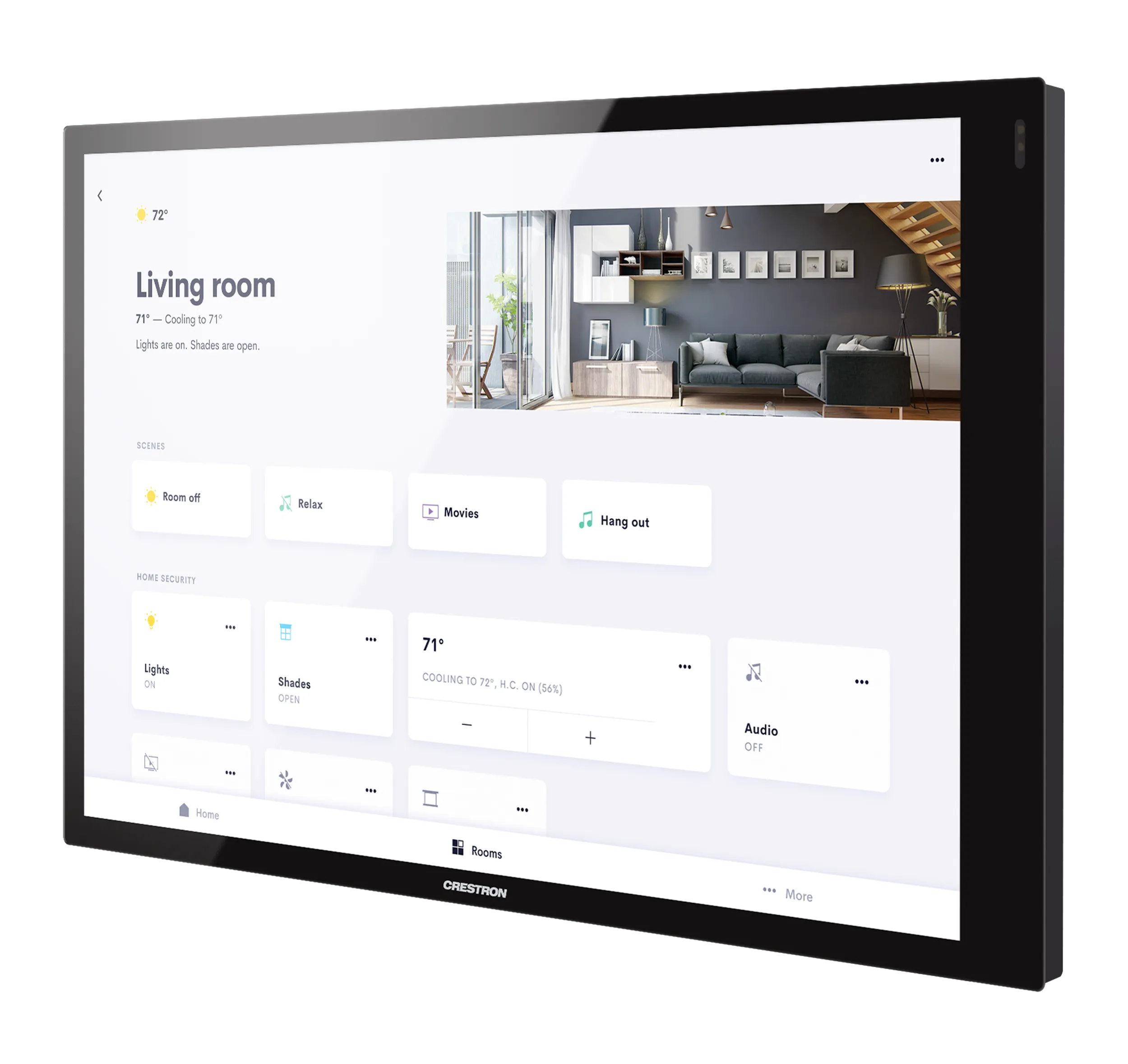

Crestron TSW-1070R-B — 10,1 inç Duvara Monte Dokunmatik Ekran, Crestron Home® İşletim Sistemi Sürümü, Siyah

Crestron TSW-1070R-B — 10,1 inç Duvara Monte Dokunmatik Ekran, Crestron Home® İşletim Sistemi Sürümü, Siyah

Crestron Home® İşletim Sistemi uygulamasını içeren şık ve çok yönlü duvara monte dokunmatik ekran. H.265/H.264 video akışını, Rava® SIP dahili telefonunu, Wi‑Fi ağ® bağlantısını ve PoE+ (Power over Ethernet Plus) ağ gücünü destekler.

Stok kodu: TSW-1070R-B Kategoriler:

Crestron Home® İşletim Sistemi uygulamasını içeren şık ve çok yönlü duvara monte dokunmatik ekran. H.265/H.264 video akışını, Rava® SIP dahili telefonunu, Wi‑Fi ağ® bağlantısını ve PoE+ (Power over Ethernet Plus) ağ gücünü destekler.

Öne Çıkan Özellikler

  • Yerel bir Crestron Home® işletim sistemi uygulaması içeren yeni nesil Crestron® duvara monte dokunmatik ekran
  • 10,1 inç (257 mm) geniş ekran aktif matris renkli ekran ve 1920 x 1200 WUXGA ekran çözünürlüğü
  • Kapasitif dokunmatik ekran
  • Dahili Rava® SIP interkom
  • Dahili hoparlörler ve mikrofon
  • H.265, H.264 veya MJPEG akışlı video ekranı
  • PoE veya PoE+ gücüyle tek kablolu Ethernet bağlantısı
  • Wi‑Fi® ağ bağlantısı
  • Çift USB 2.0 bağlantı noktası
  • Kurumsal düzeyde güvenlik ve kimlik doğrulama
  • Web veya cihaz tabanlı yapılandırma
  • Sağlanan montaj braketi ile elektrik kutusu montajı

Teknik Özellikler

Display Type TFT active matrix color LCD
Size 10.1 in. (257 mm) diagonal
Aspect Ratio 16:10 WUXGA
Resolution 1920 x 1200 pixels
Brightness 400 nits (cd/m²)
Contrast 1000:1
Color Depth 24 bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80° horizontal, ±80° vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Hard Keys (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone
Reset (1) Pin hole on rear panel for hardware reset
Onscreen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
RAM 2 GB LPDDR3
Storage Firmware/Application: 16 GB eMMC pSLC
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE 802.3at compliant
USB (2) USB Type A connectors, female; USB 2.0 host ports
Transceiver IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range Up to 50 ft (15 m), subject to site-specific conditions
Video Formats H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Audio Formats AAC stereo
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920×1080@30fps
Protocol RTSP
Features Built-in microphone and speakers, Rava® SIP Intercom 1,2
Audio Feedback Formats MP3
LAN PoE (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
PoE (Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44 BTU/hr
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 or 3‑gang US electrical box, 2‑gang European (DIN 49073) electrical box, or 2‑gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
Height 5.87 in. (149 mm)
Width 9.46 in. (240 mm)
Depth 2.01 in. (51 mm)

Kullanım Alanları

  • Kurumsal ve ticari projelerde dokunmatik paneller çözümü
  • Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
  • Profesyonel kurulum ve merkezi yönetim

Sıkça Sorulan Sorular

Crestron TSW-1070R-B Türkiye’de satılıyor mu?

Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.

Teknik destek ve kurulum sağlanıyor mu?

Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.

Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.

Marka

Crestron
Display Type

TFT active matrix color LCD
Size

10.1 in. (257 mm) diagonal
Aspect Ratio

16:10 WUXGA
Resolution

1920 x 1200 pixels
Brightness

400 nits (cd/m²)
Contrast

1000:1
Color Depth

24 bit, 16.7M colors
Illumination

Edgelit LED with auto brightness control
Viewing Angle

±80° horizontal, ±80° vertical
Touch Screen

Projected capacitive, 5-point multitouch capable
Hard Keys

(6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone
Reset

(1) Pin hole on rear panel for hardware reset
Onscreen Keyboard

Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
RAM

2 GB LPDDR3
Storage

Firmware/Application: 16 GB eMMC pSLC
Ethernet

100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE 802.3at compliant
USB

(2) USB Type A connectors, female; USB 2.0 host ports
Transceiver

IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
Security

64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
Range

Up to 50 ft (15 m), subject to site-specific conditions
Video Formats

H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Audio Formats

AAC stereo
Bitrates

Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions

Up to 1920×1080@30fps
Protocol

RTSP
Features

Built-in microphone and speakers, Rava® SIP Intercom 1,2
Audio Feedback Formats

MP3
LAN PoE

(1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
PoE (Power over Ethernet)

IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Temperature

32 to 104°F (0 to 40°C)
