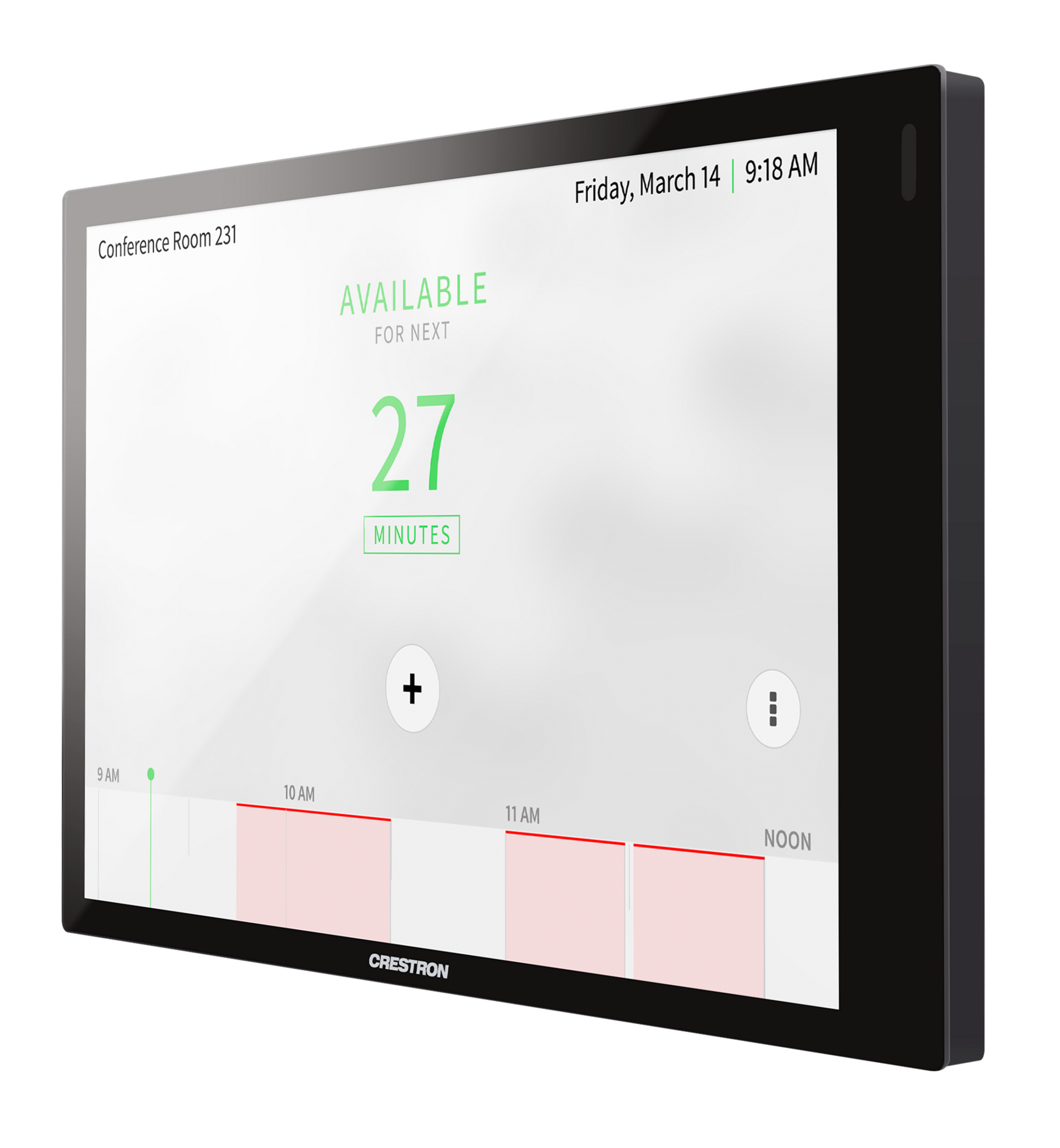

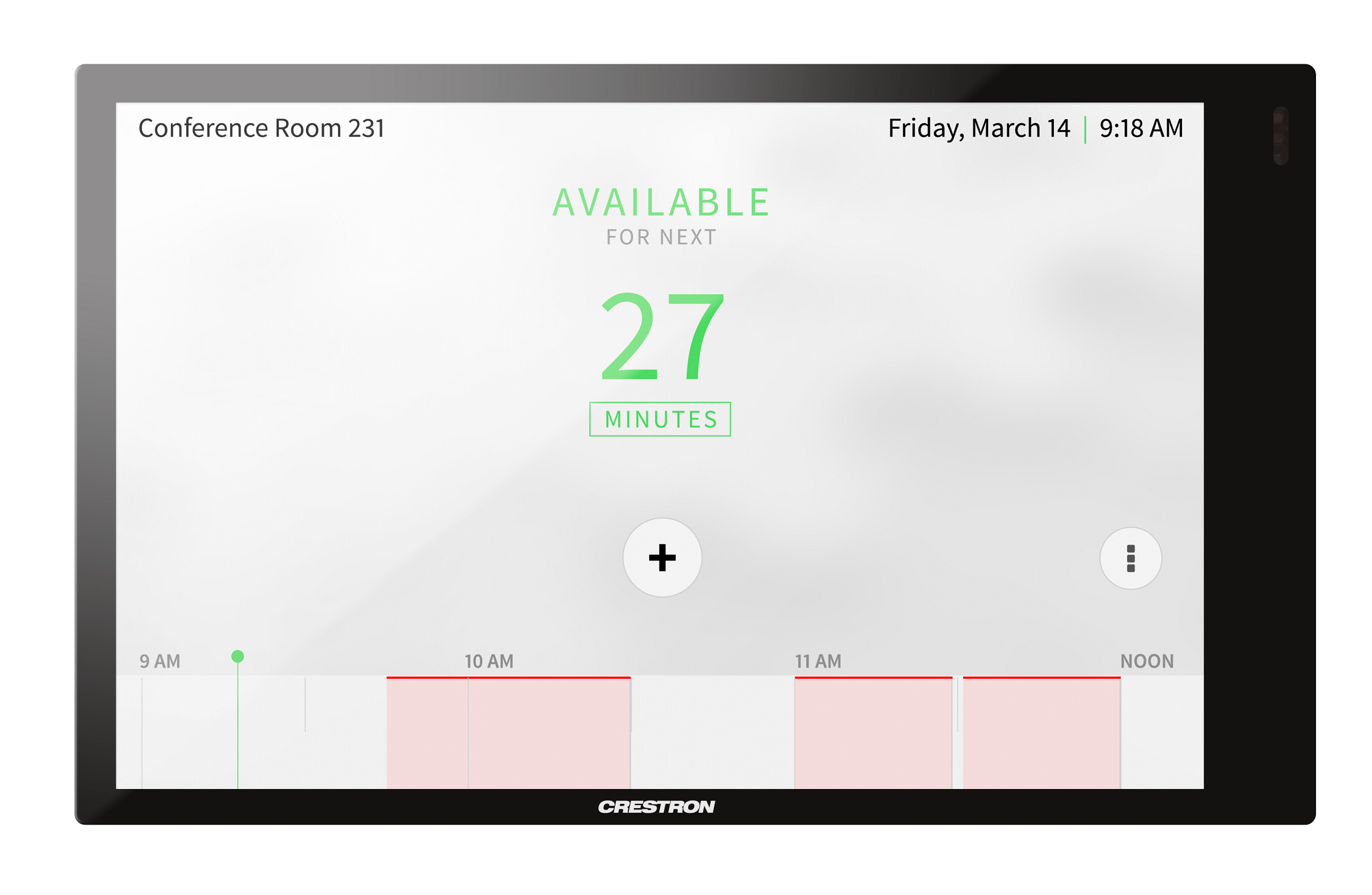

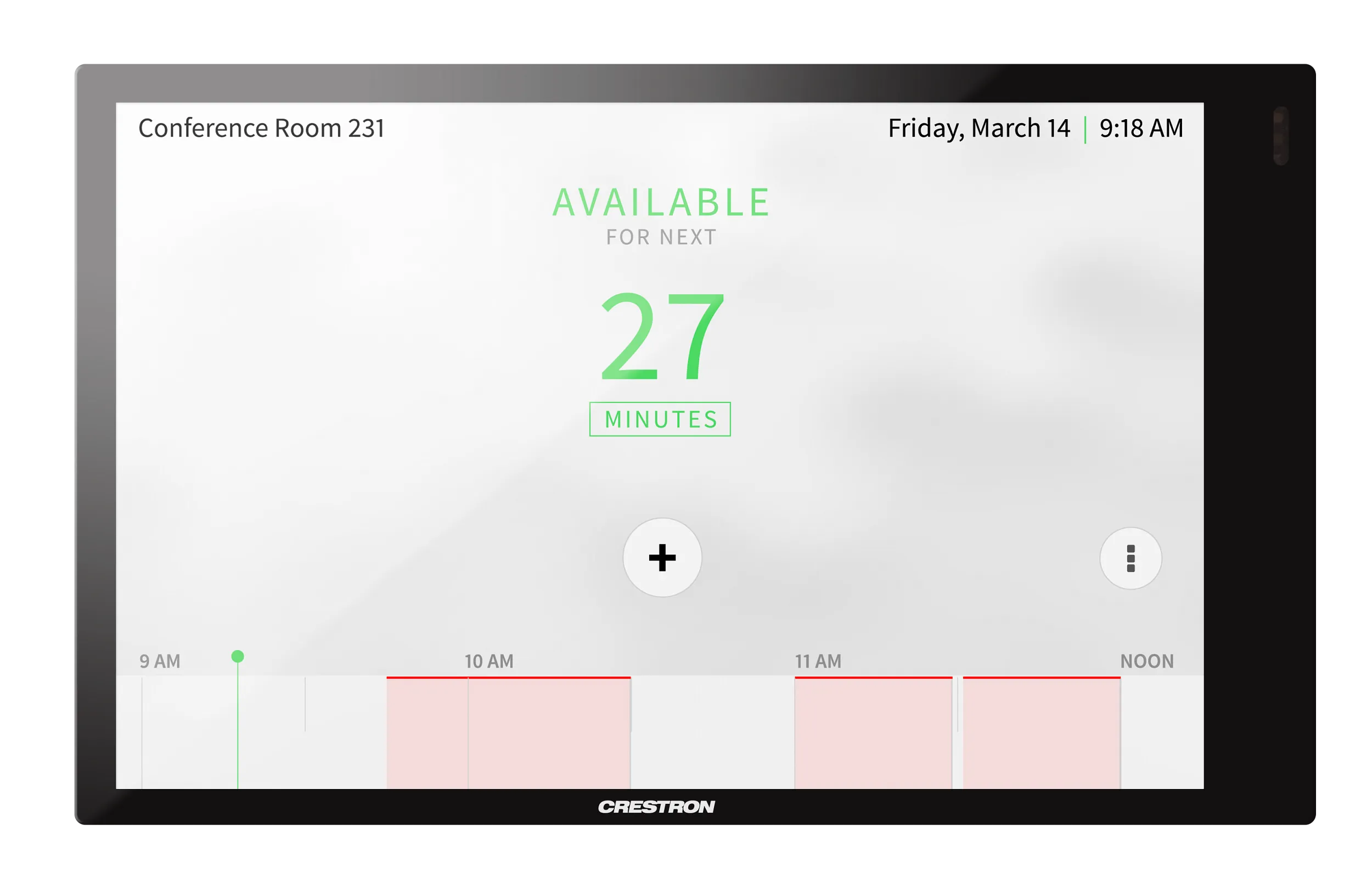

Web'de gezinme, Crestron HTML5 ve Smart Graphics® yazılım teknolojisi, özel programlanabilir simgeler, H.265/H.264 video akışı, Rava® SIP interkom, Wi‑Fi ağ® bağlantısı ve PoE+ (Power over Ethernet Plus) ağ gücü özelliklerine sahip şık ve çok yönlü, duvara monte dokunmatik ekran. Oda planlama, konferans ve ev kontrolü için yerleşik uygulamalar sağlanır.
Öne Çıkan Özellikler
- Yeni nesil Crestron® duvara monte dokunmatik ekran
- 7 inç (178 mm) geniş ekran aktif matris renkli ekran ve 1280 x 800 WXGA ekran çözünürlüğü
- Kapasitif dokunmatik ekran
- Özel programlanabilir sanal kontrol düğmeleri
- Crestron HTML5 ve Smart Graphics® yazılımı özel kullanıcı projelerini destekler
- Dahili Rava® SIP interkom
- Dahili hoparlörler ve mikrofon
- H.265, H.264 veya MJPEG akışlı video ekranı
- Crestron Home® İşletim Sistemi, Sonos® ev ses kontrolü, Zoom Rooms™ konferans kontrolü ve çeşitli oda planlama hizmetleri için yerel uygulamalar
- Dahili Bluetooth® iletişim işaretçisi
- Yerleşik web tarama
- PoE veya PoE+ gücüyle tek kablolu Ethernet bağlantısı
- Wi‑Fi® ağ bağlantısı
- Oda müsaitliği aksesuarları için çift USB 2.0 bağlantı noktası
- Kurumsal düzeyde güvenlik ve kimlik doğrulama
Teknik Özellikler
| Display Type | TFT active matrix color LCD |
|---|---|
| Size | 7 in. (178 mm) diagonal |
| Aspect Ratio | 16:10 WXGA |
| Resolution | 1280 x 800 pixels |
| Brightness | 350 nits (cd/m²) |
| Contrast | 850:1 |
| Color Depth | 24 bit, 16.7M colors |
| Illumination | Edgelit LED with auto brightness control |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Hard Keys | (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone, optional custom programming via control system for additional functions |
| Reset | (1) Pin hole on rear panel for hardware reset |
| Crestron Scheduling App | Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) 4 |
| Third-Party Apps | Includes support for various third-party scheduling applications. 5,6 |
| Smart Graphics | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai |
| Onscreen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Voice Recognition 1 | Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey) |
| Web Browser 1 | Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese |
| Room Scheduling 4 | Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish |
| RAM | 2 GB LPDDR3 |
| Storage | Firmware/Application: 16 GB eMMC pSLC |
| Maximum Project Size | 600 MB |
| Ethernet | 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant |
| USB | (2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories 3 |
| Transceiver | IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP |
| Security | 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES |
| Range | Up to 50 ft (15 m), subject to site-specific conditions |
| Bluetooth® Hardware | Crestron Bluetooth beacon 2,8 |
| Video Formats | H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG) |
| Audio Formats | AAC stereo |
| Bitrates | Up to 25 Mbps (20 Mbps maximum recommended) |
| Input Resolutions | Up to 1920×1080@30fps |
| Protocol | RTSP |
| Features | Built-in microphone and speakers, Rava® SIP Intercom, voice recognition 1,2 |
| Audio Feedback Formats | MP3 |
| LAN PoE | (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status |
| PoE (Power over Ethernet) | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
| Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 44 BTU/hr |
| Housing | Plastic, smooth black or white finish, edge-to-edge glass with black or white surround |

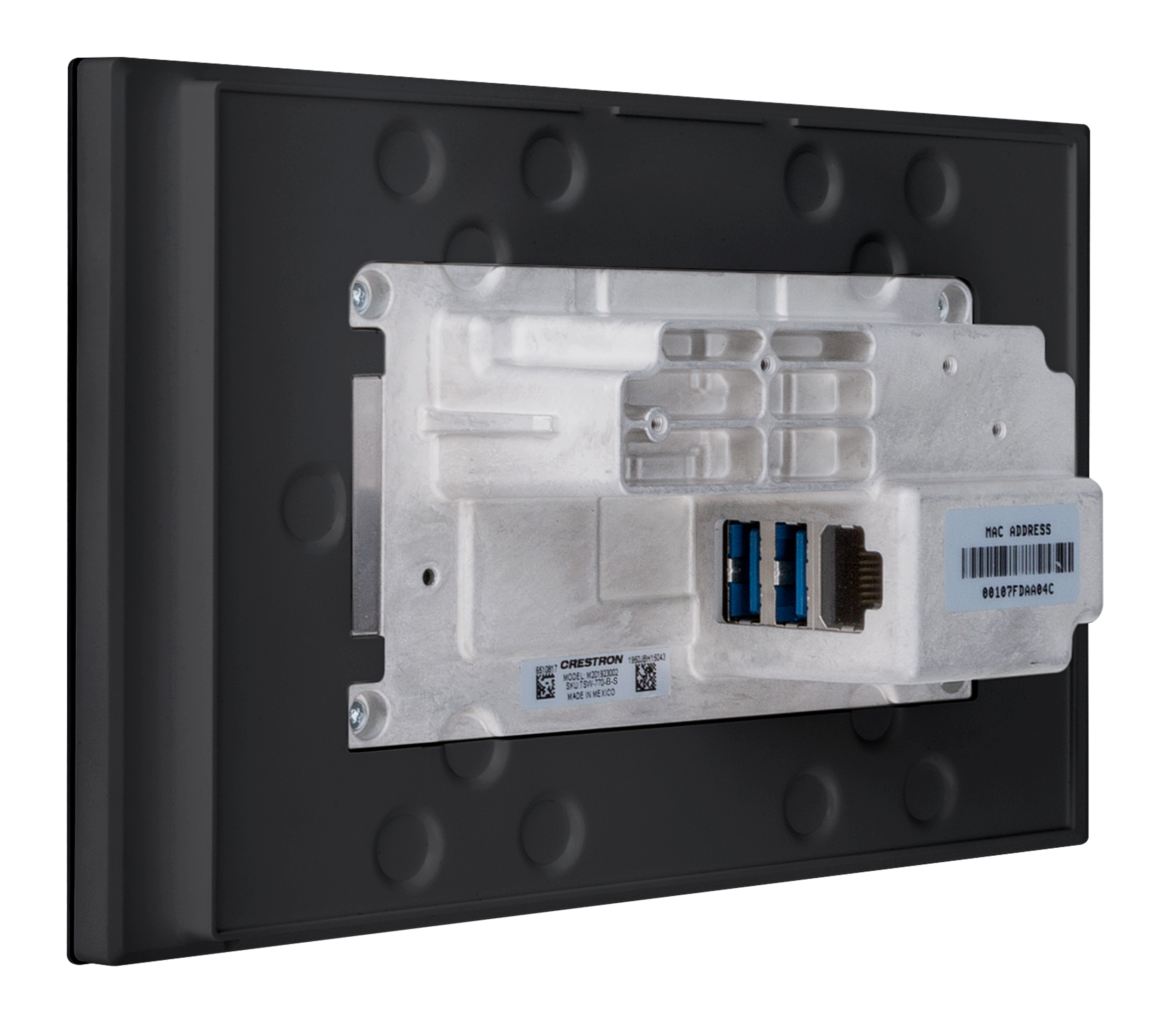

| Mounting | Surface mount over a 2 or 3‑gang US electrical box, 2‑gang European (DIN 49073) electrical box, or 2‑gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately |
| Height | 4.17 in. (106 mm) |
| Width | 6.80 in. (173 mm) |
| Depth | 1.99 in. (51 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde dokunmatik paneller çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron TSW-770-B-S Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.

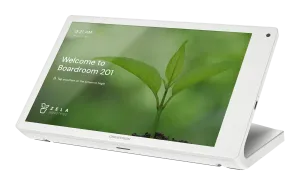

![Crestron TS-880-W — 8,1 inç Masaüstü Dokunmatik Ekran, Beyaz
[Temmuz 2026'da geliyor]](https://crestron.avelkon.com/wp-content/uploads/2026/06/ts-880-w-1-300x185.png)
![Crestron TS-1080-GV-B — 10,1 inç Masaüstü Dokunmatik Ekran, Devlet Sürümü
[Temmuz 2026'da geliyor]](https://crestron.avelkon.com/wp-content/uploads/2026/06/ts-1080-gv-b-1-300x191.png)

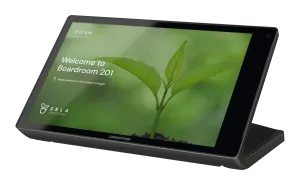

![Crestron TS-880-B — 8,1 inç Masaüstü Dokunmatik Ekran, Siyah
