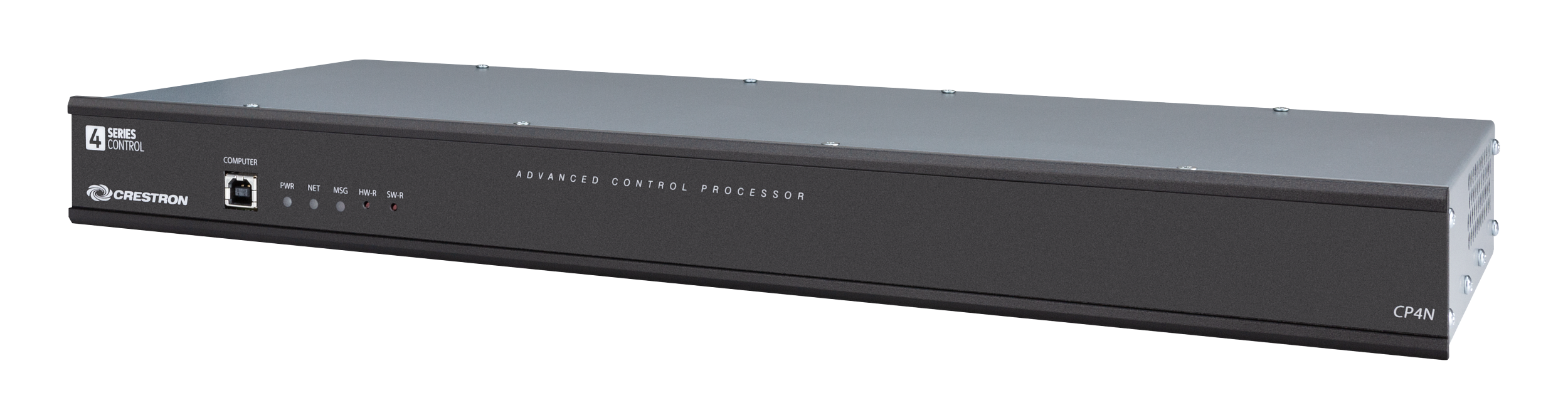

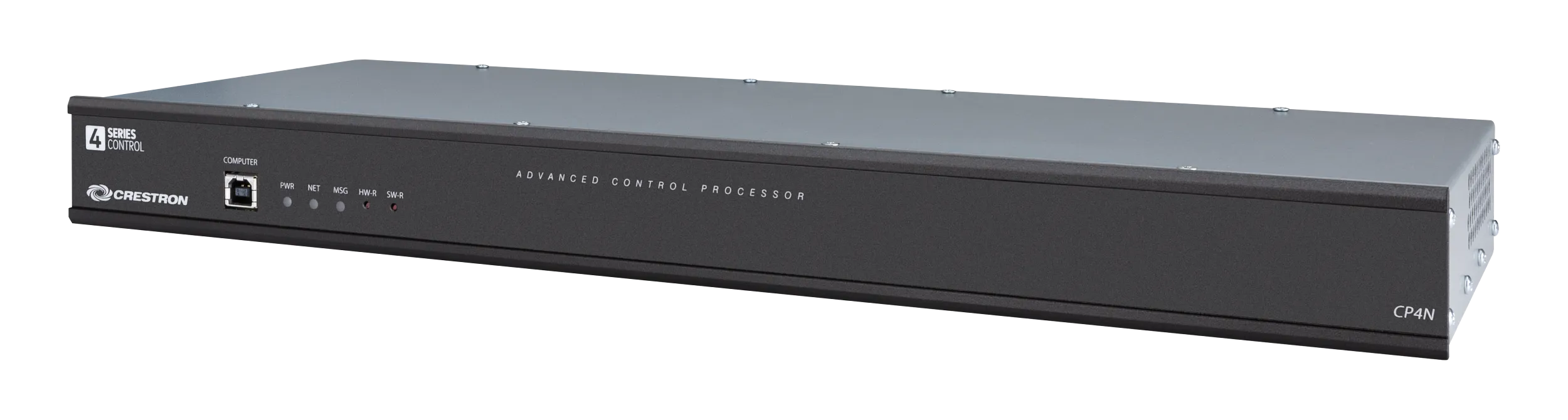

Güçlü bir 4 Serisi kontrol motoruna ve çok sayıda entegre kontrol bağlantı noktasına sahip, rafa monte edilebilir bir kontrol sistemi. Crestron cihazlarına ayrılmış bir Gigabit Ethernet LAN sağlayan yalıtılmış bir kontrol alt ağına sahiptir.
Teknik Özellikler
| Ethernet | 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP 1 , IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client |
|---|---|
| Control Subnet | 100/1000 Mbps Ethernet, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP server, DNS server, port forwarding, isolation mode |
| Cresnet® Network | Cresnet primary mode |
| USB | (1) USB Type A connector, female; USB 2.0 port for storage devices |
| RS-232/422/485 | For 2-way device control and monitoring, COM port supports RS‑232 up to 115.2k baud with software handshaking, one port also supports RS‑422 or RS‑485 and hardware handshaking |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5V) up to 115.2k baud |
| SDRAM | 2 GB |
| Flash | 8 GB |
| Memory Card | Supports SD and SDHC cards up to 32 GB |
| External Storage | Supports USB mass storage devices up to 1 TB |
| RELAY OUTPUT 1–8 | (2) 8-pin 3.5 mm detachable terminal blocks; Comprises (8) normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
| I/O 1–8 | (1) 9-pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5V, 2k Ω pull-up resistor per pin |
| IR – SERIAL OUTPUT 1–8 | (2) 8-pin 3.5 mm detachable terminal blocks; Comprises (8) IR output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5V) up to 115.2k baud IRP2 IR emitters sold separately |
| COM 1 | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/422/485 port; Up to 115.2k baud; hardware and software handshaking support |
| COM 2–3 | (2) 3-pin 3.5 mm detachable terminal blocks; Bidirectional RS-232 ports; Up to 115.2k baud; software handshaking support |
| MEMORY | (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files |
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
| CONTROL SUBNET | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; Provides a dedicated local network for Crestron devices |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| 24VDC 2.0A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included; Passes through to the NET port to power Cresnet devices; See "Power" section for additional specifications |
| G | (1) 6-32 screw; Chassis ground lug |
| COMPUTER (front) | (1) USB Type B connector, female; USB 2.0 computer console port; For setup only |
| PWR | (1) Green LED, indicates operating power is supplied from the power pack or Cresnet power supply |
| MSG | (1) Red LED, indicates control processor has generated an error message |
| HW-R | (1) Recessed push button for hardware reset |
| SW-R | (1) Recessed push button for software reset |
| LAN (rear) | (1) Bicolor green/amber and (1) Amber LEDs; Green/amber LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| CONTROL SUBNET (rear) | (1) Bicolor green/amber and (1) Amber LEDs; Green/amber LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| Power Source Options | Power pack or Cresnet (connect only one) |
| Power Pack (included) | Input: 100–240VAC, 50/60 Hz; Output: 2.5A @ 24VDC; Model: PW-2420RU |
| Cresnet Power Usage | 15 W (0.625A @ 24VDC) when powered by a Cresnet power supply only |
| Available Cresnet Power | 24 W (1A @ 24VDC) when powered by the included power pack only |
| Power Consumption | 15 W (not including any connected Cresnet devices) |
| Temperature | 41 to 113°F (5 to 45°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 50 BTU/hr |
| Chassis | Metal, aluminum, black finish |
| Faceplate | Extruded metal, black finish, polycarbonate label overlay |
| Mounting | Freestanding or 1 RU 19-in. rack-mountable (adhesive feet and rack ears included) |
| Height | 1.70 in. (44 mm) without feet |
| Width | 17.28 in. (439 mm); 19.00 in. (483 mm) with rack ears |
| Depth | 6.56 in. (167 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde rack mount çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron CP4N Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
