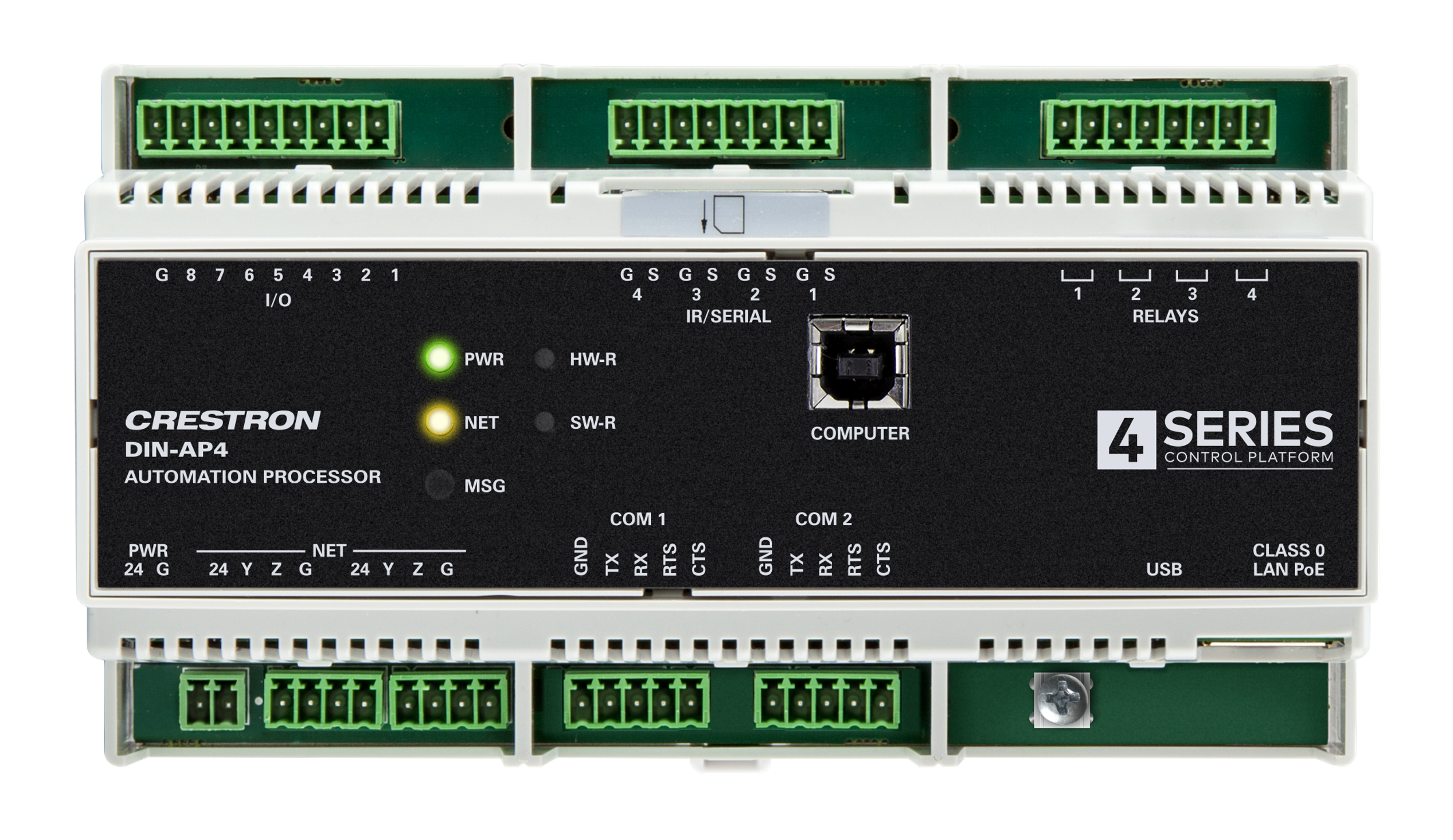

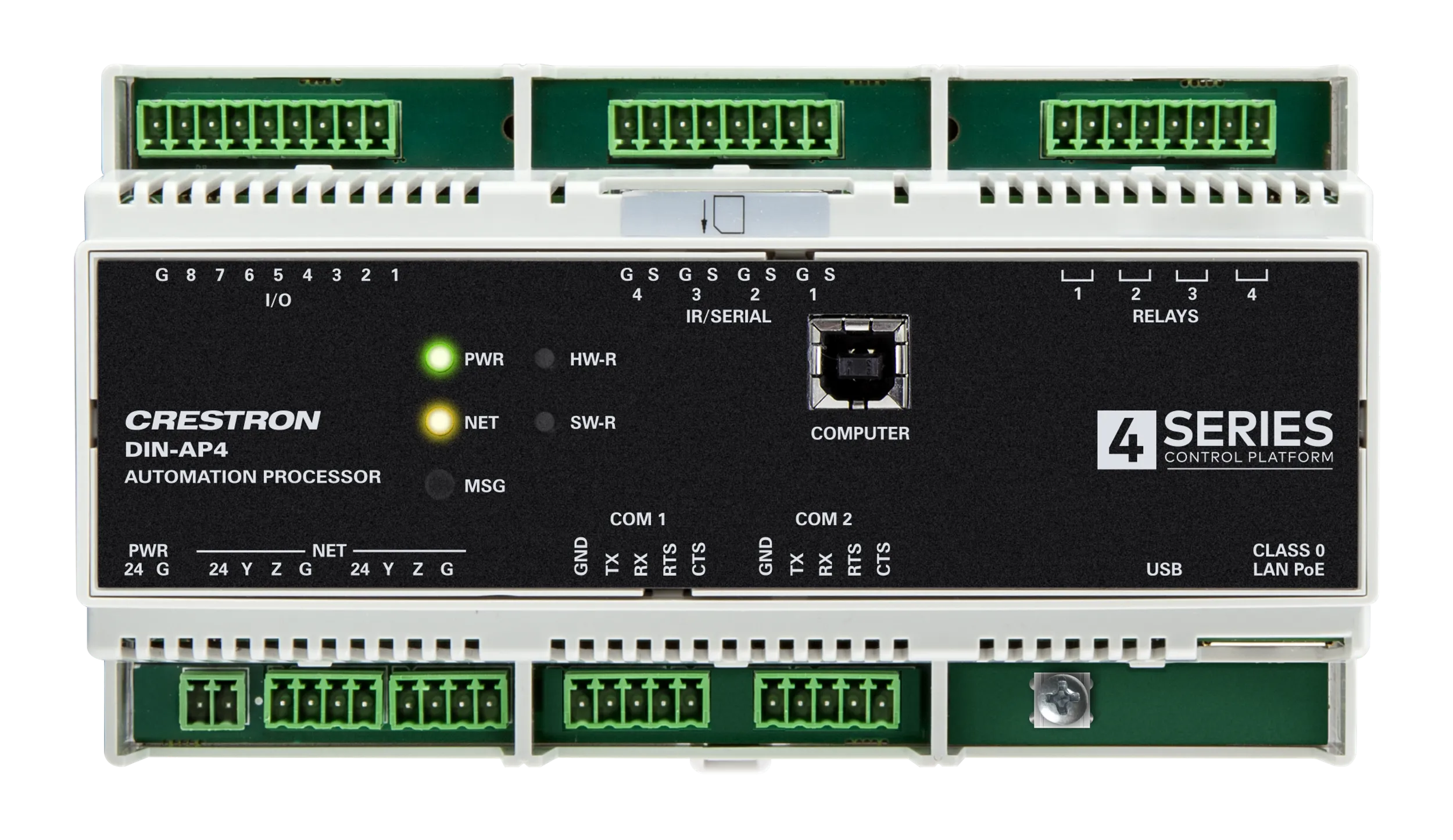

Güçlü bir 4‑Serisi™ kontrol motoruna ve özellikle DIN ray montaj uygulamaları için tasarlanmış çok sayıda entegre kontrol bağlantı noktasına sahip bir kontrol sistemi sağlar. Eksiksiz bir DIN rayı otomasyon sistemini kontrol etmek için çekirdek işlemci görevi görür.
Teknik Özellikler
| Ethernet | 100 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP1, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client |
|---|---|
| Cresnet® Network | Cresnet master mode |
| USB | (1) USB Type A connector, female; USB 2.0 port for storage devices |
| RS-232/422/485 | For 2-way device control and monitoring, supports RS-232, RS-422, or RS-485 up to 115.2k baud with hardware and software handshaking |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud |
| DDR3 SDRAM | 1GB |
| Flash | 8 GB |
| Memory Card | Supports microSD® cards up to 32 GB |
| External Storage | Supports USB storage devices up to 1 TB |
| I/O 1–8 | (1) 9-pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125 V low/0 and <1.875 V high/1; Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5 V, 2k Ω pull-up resistor per pin |
| MEMORY | (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files |
| IR/SERIAL 1–4 | (1) 8-pin 3.5 mm detachable terminal block; Comprises (4) IR output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5 V) up to 115.2k baud; IRP2 IR emitters sold separately |
| RELAYS 1–4 | (1) 8-pin 3.5 mm detachable terminal block; Comprises (4) normally open, isolated relays; Rated 1 A, 30 VAC/VDC; MOV arc suppression across contacts |
| COMPUTER | (1) USB Type B connector, female; USB 2.0 computer console port; For setup only |
| PWR | (1) Bicolor green/amber LED, indicates operating power is present; Amber indicates that the device is booting and is not yet ready to operate; Green indicates that the device is ready to operate |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| COM 1–2 | (2) 5-pin 3.5 mm detachable terminal blocks; Bidirectional RS‑232/422/485 port; Up to 115.2k baud; hardware and software handshaking support |
| G | (1) 6-32 screw; Chassis ground lug |
| LAN PoE | (1) 8-pin RJ-45 connector, female; 100BASE-T Ethernet port; PoE (Power over Ethernet) PD (Powered Device) port |
| MSG | (1) Red LED, indicates processor has generated an error message |
| HW-R | (1) Recessed miniature push button, initiates hardware reset |
| SW-R | (1) Recessed miniature push button, initiates software reset |
| LAN | (1) Green and (1) Amber LEDs; Green LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| Power Source Options | Power pack (sold separately) or PoE |
| Power Pack | Must supply 24 VDC to 2-pin terminal block via flying leads; Use model PW-2407WUL or equivalent |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Available Cresnet Power | 2.5 W maximum via PoE; 10 W maximum via 0.75 @ 24 VDC power pack |
| Power Consumption | 9.7 W (not including any connected Cresnet devices) |
| Temperature | 41 to 113 °F (5 to 45 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 33 BTU/hr |
| Height | 3.57 in (91 mm) |
| Width | 6.33 in (161 mm) |
| Depth | 2.28 in (58 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde din rail çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DIN-AP4 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
