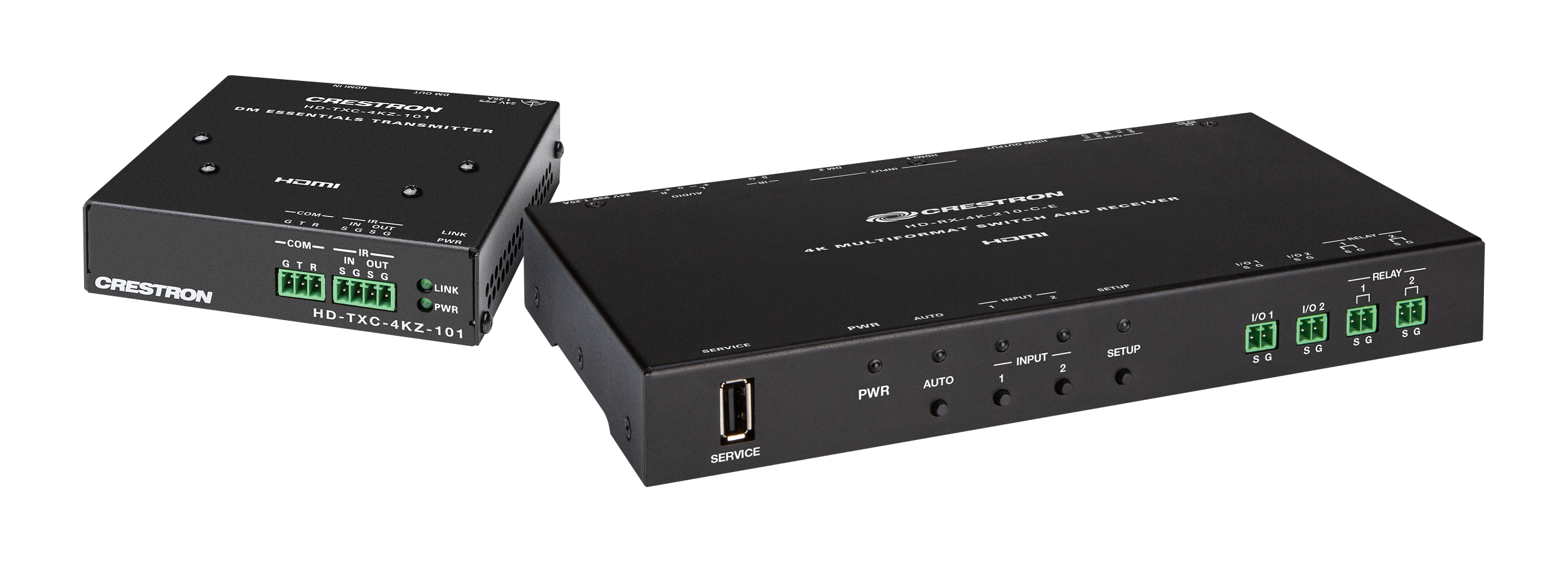

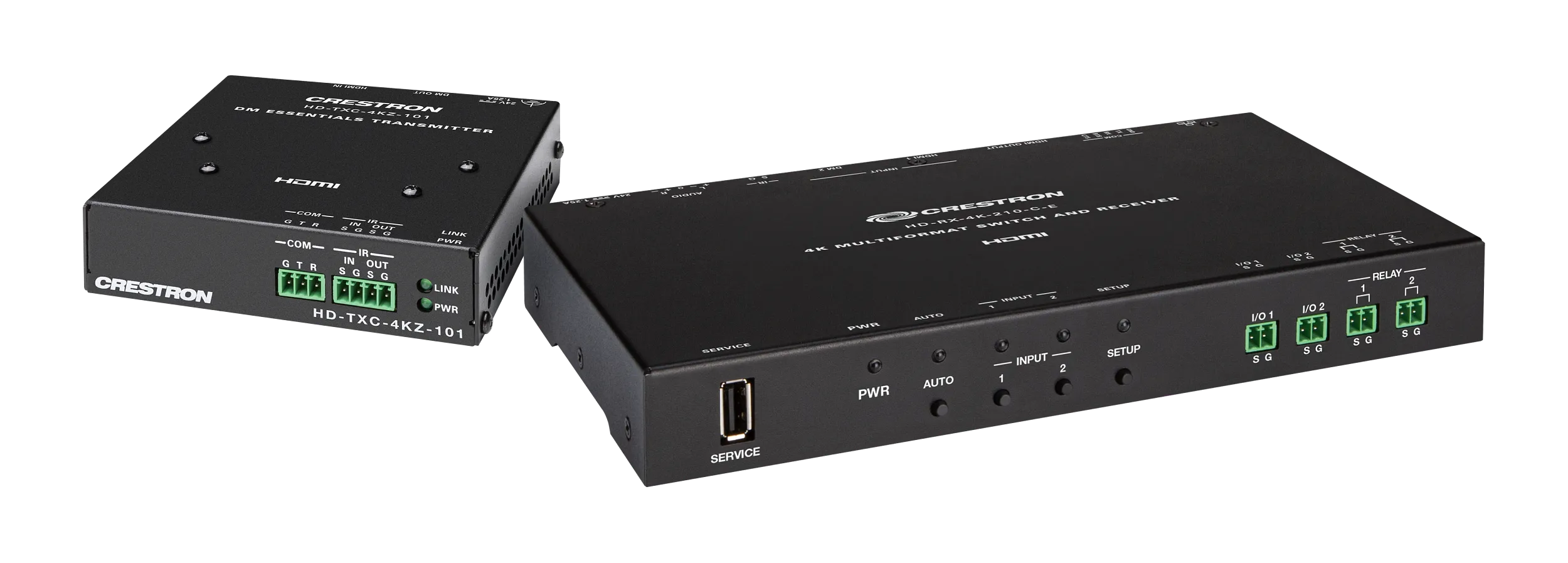

Sınıflar ve toplantı alanları için uygun maliyetli, yüksek çözünürlüklü bir AV sunum çözümü sağlar. Tek bir CATx kablosu üzerinden 70 m'ye (230 ft) kadar AV anahtarlama, ölçeklendirme ve sinyal uzatma olanağı sağlayan bir verici (HD-TXC-4KZ-101) ve alıcıdan (HD-RX-4K-210-C-E) oluşur. Vericide tek bir HDMI® girişi ve alıcıda ek bir HDMI girişi sağlar. 4K ölçeklendirmeli HDMI çıkışı, güvenilir, yüksek kaliteli bir video görüntüsü sağlar. 4K60 4:2:0 videoyu destekler.
Teknik Özellikler
| Switcher | 2×1 (1 input at transmitter plus 1 input at receiver x 1 output at receiver) auto-switching or manual, audio-follows-video, Crestron Auto‑Locking® and QuickSwitch HD™ technology |
|---|---|
| Scaler, HDMI Output | 4K video scaler with intelligent frame rate conversion, Deep Color support, content adaptive noise reduction, 3:2/2:2 pull-down detection and recovery |
| Input Signal Type | HDMI (Dual-Mode DisplayPort interface compatible 2 ) |
| Output Signal Type | HDMI, analog stereo line-level |
| Copy Protection | HDCP 2.2 |
| Maximum Resolutions | Common resolutions are listed in the following table. |
| Digital Formats | 2-channel LPCM |
| Digital to Analog Conversion | 24-bit, 48 kHz |
| Output Volume | -80 to +20 dB level adjustment range; Independent mute for HDMI and analog audio outputs |
| Analog Output Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted; THD+N: <0.005% @ 1 kHz and 10 dBV; Stereo Separation: 20 Hz to 20 kHz ≤80 dB |
| Ethernet | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that Ethernet link is established; Flashing amber indicates Ethernet activity |
| RS-232 | Two way device control and monitoring up to 115.2k baud; Hardware and software handshaking |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR output control port; Supports IR up to 60 kHz; IRP2 emitter sold separately NOTE: The IR port provides Power On/Off control of the display device with the use of a control system. |
| HDMI | HDCP 2.2, EDID, CEC |
| DM | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non-HDCP video; Solid amber indicates HDCP video |
| 24 VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2412WU power pack included NOTE: Either included power pack will power both the receiver and the connected transmitter. Do not connect both power packs at once. |
| HDMI IN | (1) Green LED, indicates that the device is receiving an HDMI signal |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Supports RS-232 up to 115.2k baud; Hardware and software handshaking NOTE: The COM port provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system. |
| IR IN/OUT | (1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port; IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the HD‑RX‑4K‑210‑C‑E receiver; IR OUT is for connection to an IR emitter ( IRP2 , sold separately) and transmits the IR signal from the IR IN port on the HD‑RX‑4K‑210‑C‑E receiver; Supports IR up to 60 kHz |
| HDMI INPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible 2 |
| DM INPUT 2 | (1) 8-pin RJ-45 yellow connector, female, shielded; DM link port for connection to the HD‑TX‑4KZ‑101 transmitter 1 |
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible 3 ) NOTE: CEC over the HDMI output provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system. |
| AUDIO L/R | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4Vrms balanced, 2Vrms unbalanced; Output Impedance: 200Ω balanced, 100Ω unbalanced |
| I/O 1-2 | (2) 2-pin detachable terminal blocks; Comprised of 2 Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated to 0-24VDC, input impedance 20kΩ, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0-10VDC, protected to 24VDC maximum, input impedance 21kΩ with pull-up resistor disabled; Programmable 5V, 2kΩ pull-up resistor per pin |
| RELAY 1-2 | (2) 2-pin detachable terminal blocks; Comprised of 2 normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
| SERVICE | (1) USB Type A connector, female; For factory use only |
| LINK | (1) Green LED, indicates that DM link is established. |
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
| DM OUT | (2) LEDs on RJ‑45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non‑HDCP video; Solid amber indicates HDCP video |
| INPUT 1-2 | (2) Push buttons for manual input selection and (2) LEDs; Green indicates that video source is selected; Amber indicates that video is detected but source is not selected |
| AUTO | (1) Push button to enable or disable automatic switching; (1) LED, green indicates that automatic switching is enabled |
| SETUP | (1) Red LED and (1) push button for display of IP address on the HDMI output |
| Power Pack (included with Transmitter and Receiver) | Input: 100-240VAC; Output: 24VDC 2.5A; Models: PW‑2420RU and PW-2412WU NOTE: Either included power pack will power both the transmitter and receiver. Do not connect both power packs at once. |
| Power Consumption | 14.8 W typical |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | Transmitter: 20% to 90% RH (non-condensing); Receiver: 10% to 90% RH (non-condensing) |
| Heat Dissipation | 50.5 BTU/hr |
| Ambient Noise Level | N/A (fanless) |
| Chassis | Metal, black finish, vented sides, 2 mounting flanges |
| Mounting | Surface or rack rail mount |
| Height | 5.11 in. (130 mm) |
| Width | 4.19 in. (106 mm) with mounting flanges attached |
| Depth | 7.94 in. (202 mm) |
| Transmitter | 1.2 lb (0.55 kg) |
| Receiver | 1.19 lb (0.54 kg) |
Kullanım Alanları
- Kurumsal ve ticari projelerde kits çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-EXT-1021-KIT Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
