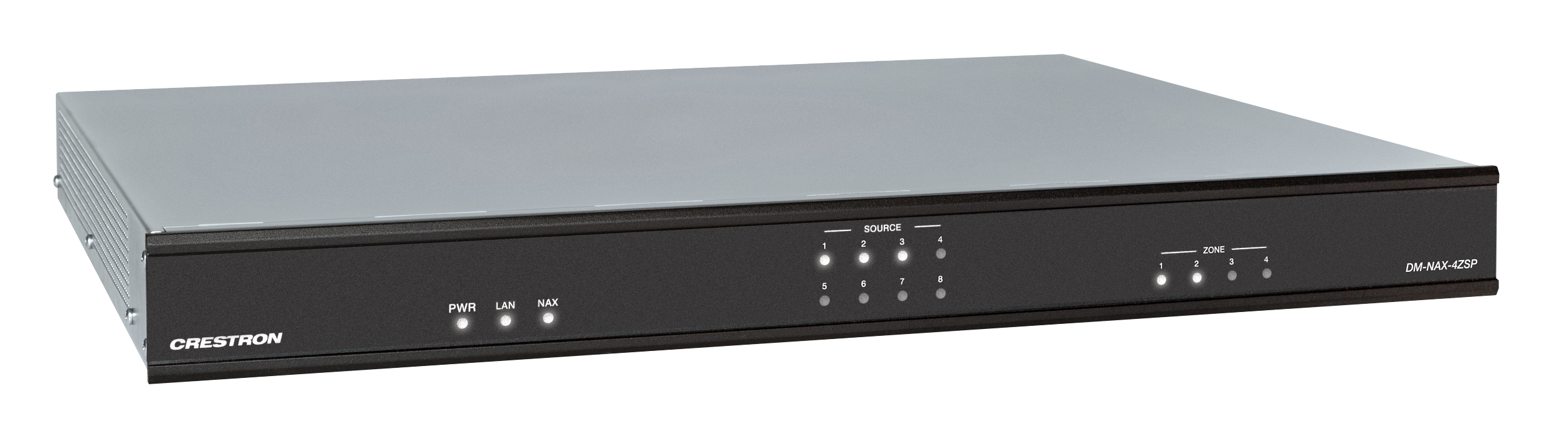

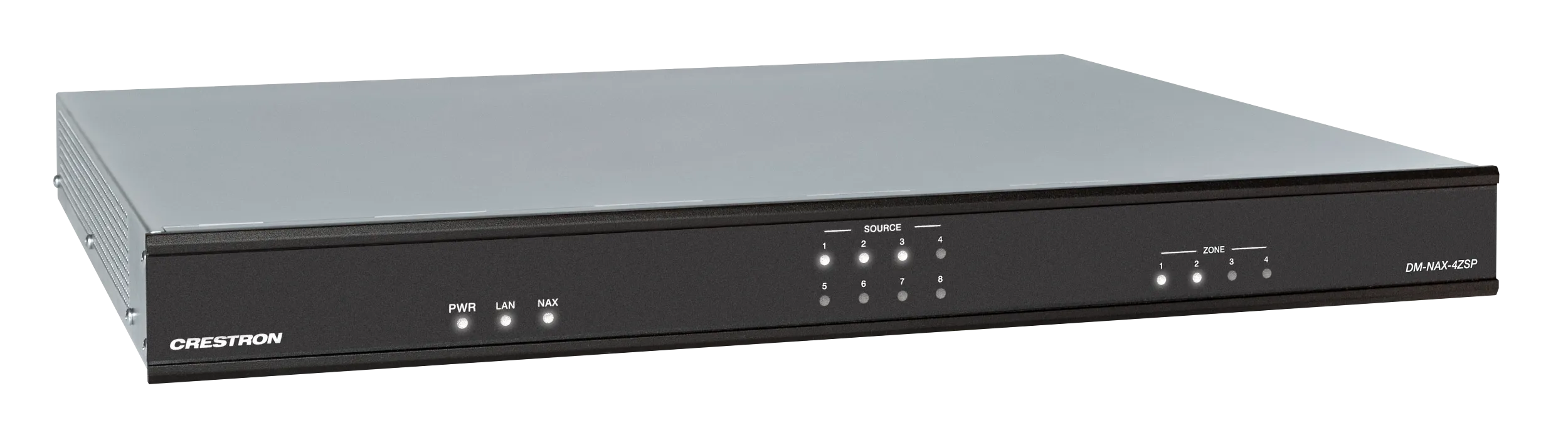

Crestron DM-NAX-4ZSP, Crestron'un çok odalı ses dağıtımını ağa yerleştiren yeni nesil IP Üzerinden Ses (AoIP) ön amplifikatörüdür. Akış hizmetleri, her stereo ön amplifikatörlü bölge için mevcut medya oynatıcı erişimiyle yerleşiktir.
Teknik Özellikler
| Input Signal Types | 4 stereo analog (RCA); 4 digital S/PDIF (2 TOSLINK and 2 Coaxial); Up to 4 stereo DM NAX or AES67 audio-over-IP streams; Up to 4 stereo cloud-based media streams from streaming service providers |
|---|---|
| Output Signal Types | 4 stereo line-level analog outputs; Up to 16 stereo DM NAX or AES67 audio-over-IP streams |
| Sampling Rates and Bit Depths | Digital Input (Coaxial): Up to 192 kHz, 24-bit; Digital Input (Optical): Up to 96 kHz, 24-bit; Media Players: Up to 192 kHz, 24-bit |
| Source Compensation | ±10.0 dB per input |
| Input Monitoring | Source Signal Detect |
| Frequency Response | 20 Hz to 20 kHz ±0.2 dB |
| THD | 0.006% |
| S/N Ratio | 110 dB digital in, 108 dB analog in |
| Zone Volume Level Control | -80.0 to +20.0 dB, adjustable from 0% to 100% plus mute |
| Bass Control | ±12.0 dB |
| Treble Control | ±12.0 dB |
| Loudness Compensation | On/Off |
| Dynamic Range Control | Off/Low/Medium/High |
| Balance Control | Left/right adjustable |
| Tone Profiles | Flat, Classical, Jazz, Pop, Rock, Spoken Word |
| EQ Filter Types | EQ, High Pass, Low Pass, Treble Shelf, Bass Shelf, Notch |
| EQ Center Frequency | 10 to 20,000 Hz per band |
| EQ Gain | +20/-40 dB per band |
| EQ Bandwidth | 0.1 to 4.0 octaves per band |
| Bus Volume Offset | ±12.0 dB per zone for output bussing |
| Ethernet | For control, AoIP, and or console, 100/1000 Mbps, auto-switching, auto‑negotiating, auto-discovery, full/half duplex, DHCP |
| USB | (1) USB Type B connector, female; USB computer console port (cable included); For setup only |
| SPDIF SOURCES 1 – 2 | (2) JIS F05 female (TOSLINK) optical fiber connector; S/PDIF optical digital audio input |
| SPDIF SOURCES 3 – 4 | (2) RCA female; S/PDIF coaxial digital audio inputs; Input Impedance: 75 Ohms |
| ANALOG SOURCES L/R 5 – 8 | (8) RCA female comprising (4) unbalanced stereo line-level audio inputs; Input Impedance: 10k Ohms; Maximum Input Level: 2 Vrms |
| ANALOG OUT L/R 1 – 4 | (8) RCA connectors, female; Comprises (4) unbalanced line-level stereo audio outputs (mirror corresponding amplified output pairs 1 – 4); Output Impedance: 100 Ohms; Maximum Output Level: 2 Vrms |
| ANALOG OUT L/R 1 – 2 | (2) 5-pin 3.5mm detachable terminal blocks; Balanced stereo line-level audio outputs (mirror corresponding unbalanced output pairs 1 – 2); Output Impedance: 150 Ohms; Maximum Output Level: 4 Vrms |
| Ethernet 1 | (1) 8-wire RJ45 female; 100Base-T/1000Base-TX Ethernet port |
| Ethernet 2 | (1) 8-wire RJ45 female; 100Base-T/1000Base-TX Ethernet port |
| 100-240V~50/60Hz Universal AC | (1) IEC 60320 C14 main power inlet, mates with removable power cord (included) |
| I/O | (1) 5-pin 3.5 mm detachable terminal block; Comprises (4) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5V, 2k Ω pull-up resistor per pin |
| G | 6-32 screw, chassis ground lug |
| PWR | (1) LED. White indicates that the device is switched on with audio passing. Red indicates that the device is in standby mode. Off indicates that there is no power from the power supply. |
| LAN | (1) LED. White indicates that the device is switched on and has a valid IP address. Off indicates that the device is not connected to a network or the IP address is invalid. |
| NAX | (1) LED. White indicates that any audio-over-IP traffic is passing in or out of the DM NAX unit (if any audio-over-IP streams are transmitting out of, or being received by the unit, then the NAX LED will illuminate white). Off indicates that no audioover- IP traffic is passing in or out of the DM NAX unit. |
| SOURCE 1-8 | (8) LEDs. White indicates signal presence on the specified input/source. Red indicates there is a clipping on an analog input or a bitstream issue on a digital input. Off indicates that there is no signal detected on the specified input/source. |
| ZONE 1-4 | (4) LEDs. White indicates there is audio output on the indicated zone. Red indicates clipping is detected on the output audio. |
| SETUP | (1) LED. Blinking red indicates that a network reset or factory restore has been initiated via the adjacent SETUP button. |
| Power Consumption | 15.9 W |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 57 BTU/hr |
| Chassis | Metal, black and silver finish, vented sides |
| Mounting | 1 RU rack-mountable |
| Height | 1.73 in. (44 mm) |
| Width | 19 in. (482 mm) 17.28 in. (439 mm) without rack ears |
| Depth | 14.50 in. (368 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde pre amplifier çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NAX-4ZSP Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
