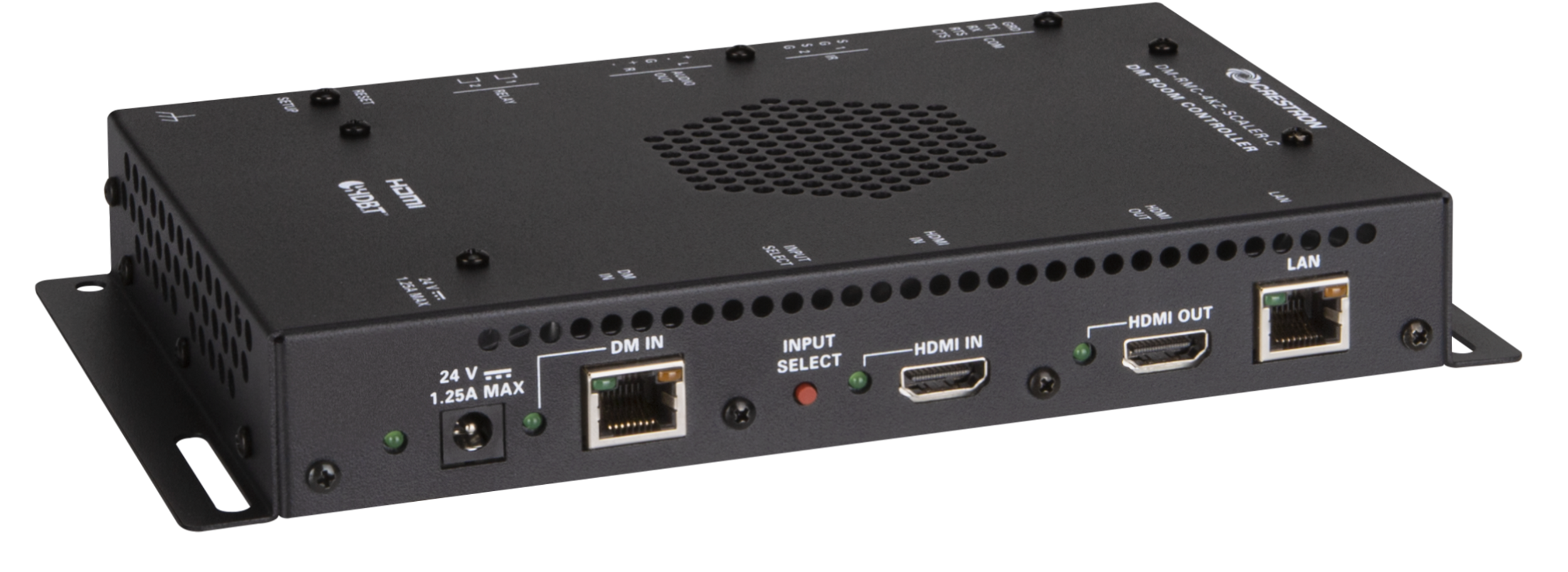

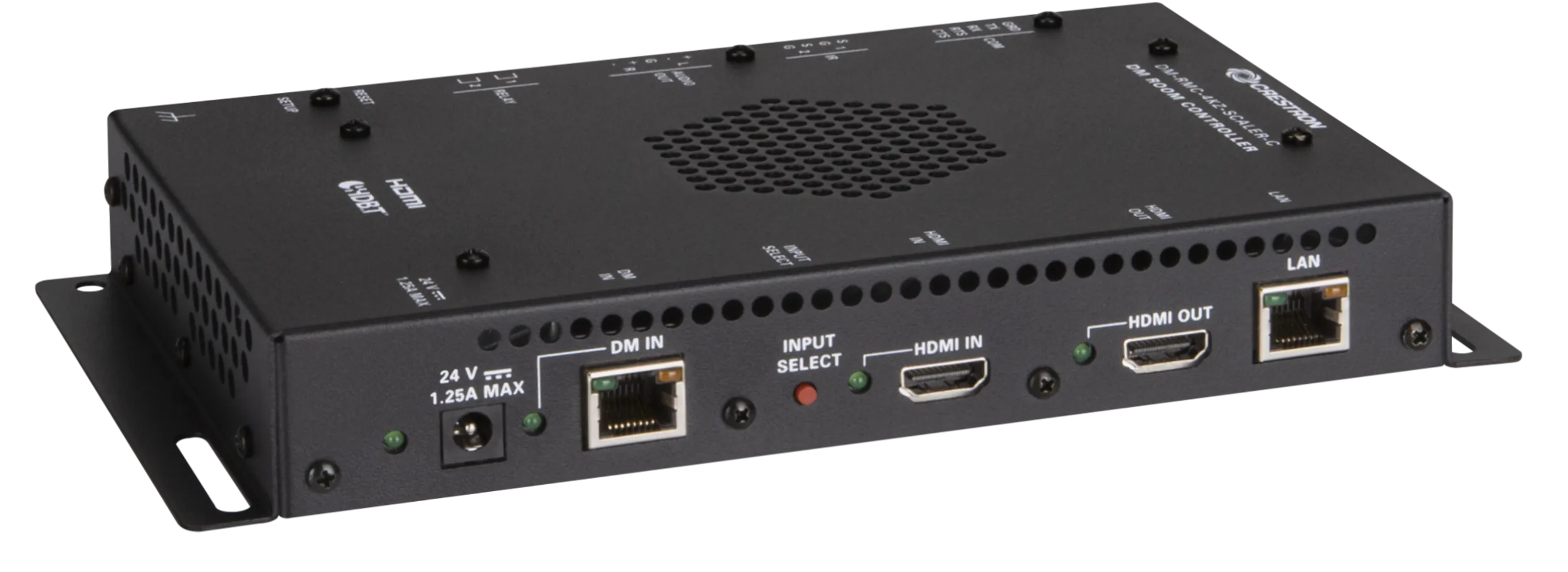

Eksiksiz bir DigitalMedia™ sisteminin parçası olarak HD veya 4K görüntüleme cihazı için bir denetleyici ve arayüz sağlar. 4K60 4:4:4 ve HDR video sinyallerini destekler. Dahili 4K60 4:4:4 ölçekleyici içerir. CAT5e (veya üzeri) kablo aracılığıyla bir DM® değiştiricinin veya vericinin DM 8G+ çıkışına bağlanan bir DM 8G+® girişi sağlar. HDBaseT® standardıyla uyumludur. Ayrıca bir HDMI® girişi ve analog ses çıkışının yanı sıra IR, RS-232, Ethernet ve röle kontrol bağlantı noktaları da sağlar.
Teknik Özellikler
| Resolution | Cable Type |
|---|---|
| Scaler | 4K60 4:4:4 video scaler with motion-adaptive deinterlacer, intelligent frame rate conversion, Deep Color support, HDR10 support, content-adaptive noise reduction, widescreen format selection (zoom, stretch, maintain aspect ratio, or 1:1), video wall processing up to 8 wide x 8 high 9 |
| Input Signal Types | DM 8G+, HDBaseT, HDMI |
| Output Signal Types | HDMI, analog stereo 3 |
| Copy Protection | HDCP 2.2 |
| Maximum Scaler Input, Pass-Through, and Output Resolutions | Custom resolutions may be supported at pixel clock rates up to 600 MHz*. *Due to DSC codec limitations, only 4K60 and 4K50 resolutions can be supported at pixel clock rates between 300-600MHz. For detailed information, refer to Online Help Answer ID 1001200. |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels |
| Analog Formats | Stereo 2-channel 3 |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >90 dB |
| Analog Volume Adjustment | -80 to 0 dB |
| Ethernet | 100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system) |
| DigitalMedia | DM 8G+, HDCP 2.2, EDID, CEC, PoDM+, Ethernet |
| HDBaseT | HDCP 2.2, EDID, CEC, PoE+, Ethernet |
| HDMI | HDCP 2.2, EDID, CEC |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| IR 1 – 2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR/Serial ports; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud |
| AUDIO OUT L, R | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output 3 ; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
| RELAY 1 – 2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression across contacts |
| Ground | (1) 6-32 screw; Chassis ground lug |
| 24VDC 1.25A MAX | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack sold separately |
| DM IN | (1) LED, solid green indicates video signal is detected at the DM IN port and is the active input source, flashing green indicates video signal is detected at the DM IN port but is not the active input source |
| HDMI IN | (1) LED, solid green indicates video signal is detected at the HDMI IN port and is the active input source, flashing green indicates video signal is detected at the HDMI IN port but is not the active input source |
| HDMI OUT | (1) Green LED, indicates video signal is detected at the HDMI output |
| LAN | (2) LEDs, green indicates Ethernet link is established, flashing amber indicates Ethernet activity |
| RESET | (1) Recessed push button, for hardware reset |
| SETUP | (1) Red LED and (1) recessed push button, for Ethernet setup |
| INPUT SELECT | (1) Push button for manual input selection |
| DM IN (RJ-45) | (2) LEDs, green indicates DM or HDBaseT link is established; solid amber indicates HDCP video is detected at the input, flashing amber indicates non‑HDCP video is detected at the input |
| 24 VDC | (1) Green LED, indicates operating power supplied via PoDM+, HDBaseT PoE+, or local power pack |
| Power over DM | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant PoDM+ PD (Powered Device), capable of being powered by PoDM+ PSE (Power Sourcing Equipment) 7 |
| Power over HDBaseT | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant HDBaseT PoE+ PD (Powered Device), capable of being powered by an HDBaseT PoE+ PSE (Power Sourcing Equipment) 8 |
| Power Pack (Optional) | Input: 100‑240 Volts AC, 50/60 Hz; Output: 1.25 Amps @ 24 Volts DC; Model: PW-2412WU (sold separately) |
| Power Consumption | 18.2 Watts |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 62.1 BTU/hr |
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented top and sides |
| Mounting | Freestanding, surface mount, or attachment to a single rack rail |
| Height | 9.18 in. (233 mm) |
| Width | 5.35 in (136 mm) |
| Depth | 1.33 in (34 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde receivers çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-RMC-4KZ-SCALER-C Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
