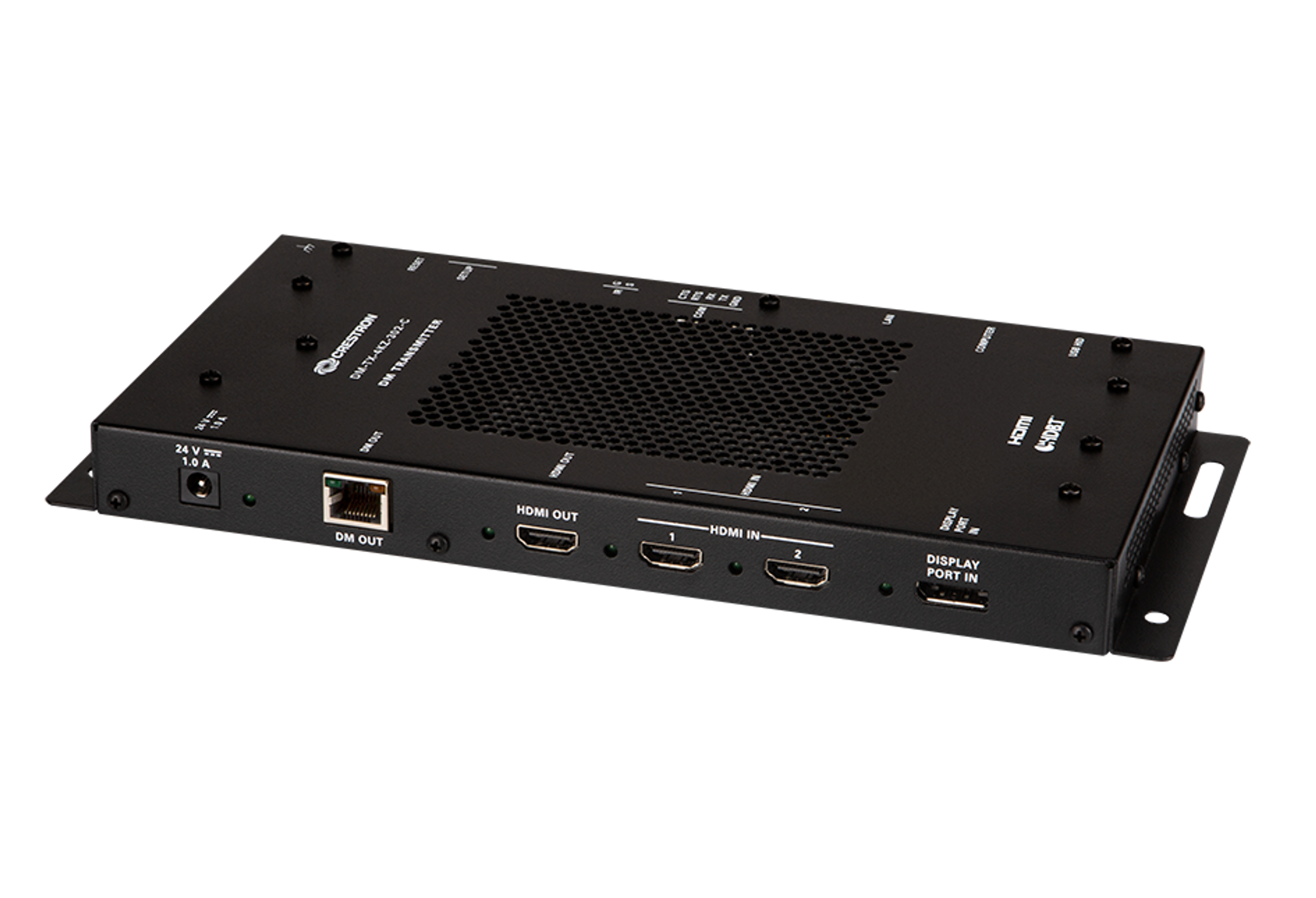

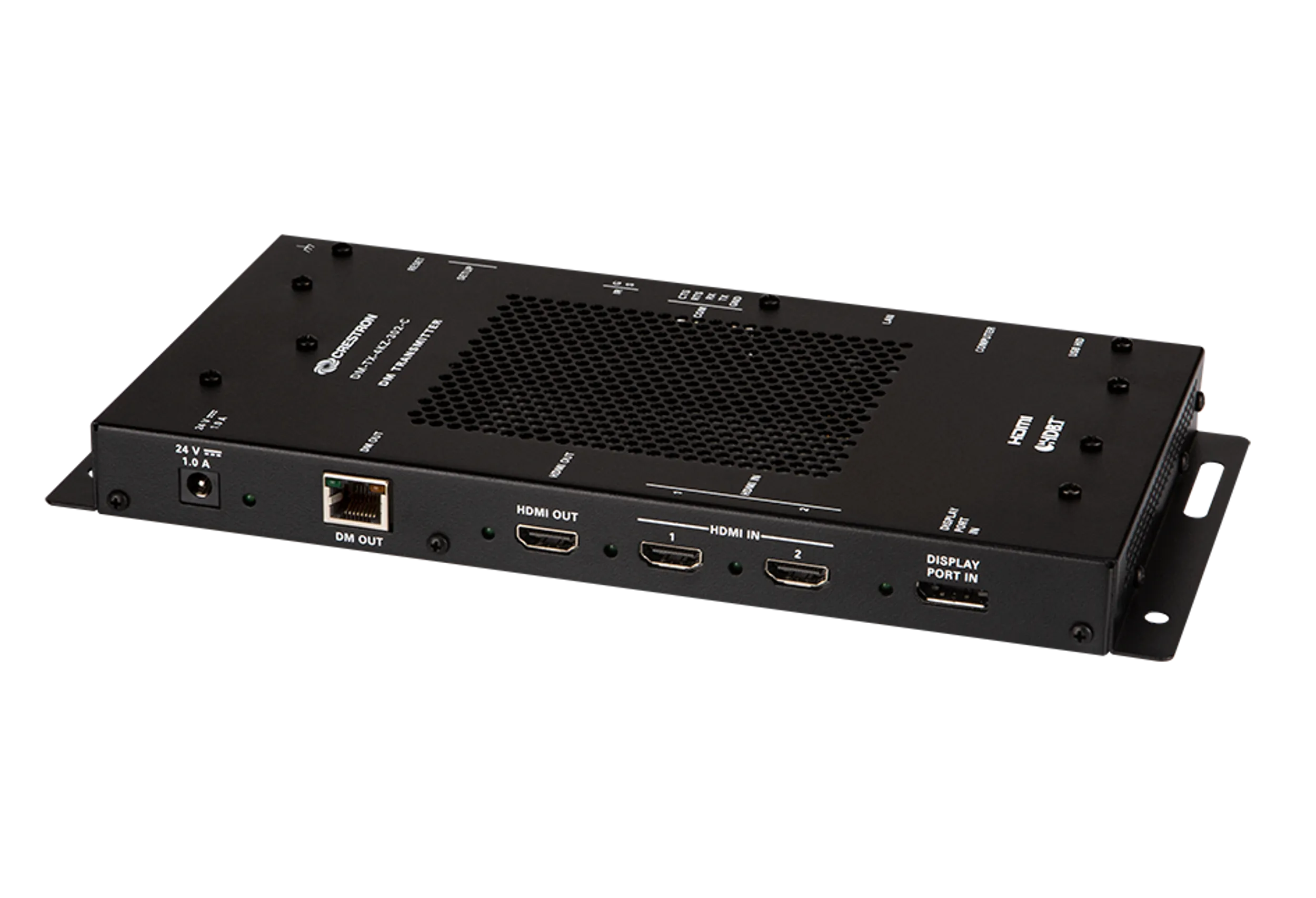

Eksiksiz bir DigitalMedia™ Sisteminin parçası olarak 4K HDMI® ve DisplayPort™ kaynakları için çoklu girişli, otomatik geçişli bir arayüz ve denetleyici sağlar. 4K60 4:4:4 ve HDR video sinyallerini destekler. Tek bir CATx kablo aracılığıyla bir DM® Switcher veya Alıcının DM 8G+® girişine bağlanır. IR, RS-232 ve Ethernet kontrol bağlantı noktaları ile USB HID cihazı ve ana bilgisayar sinyali uzatma bağlantı noktalarını içerir. HDBaseT® teknolojisi ve Crestron Connect It™ kablo kutusuyla uyumludur.
Teknik Özellikler
| Switcher | 3×1 audio-follow-video |
|---|---|
| Input Signal Types | HDMI (Dual-Mode DisplayPort compatible 3 ), DisplayPort |
| Output Signal Types | DM 8G+ & HDBaseT, HDMI |
| Copy Protection | HDCP 2.2 |
| Formats, HDMI | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio™,DTS:X, LPCM up to 8 channels |
| Formats, DisplayPort | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels |
| Ethernet | 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| USB Host | Supports signal extension of USB HID class devices, supports a TT-100 series cable caddy 8 |
| USB Device | USB HID signal extension to a USB host, supports computer console (for setup) |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system) |
| DigitalMedia | DM 8G+, HDCP 2.2, EDID, CEC, PoDM + Ethernet |
| HDBaseT | HDCP 2.2, EDID, RS-232, PoE+, Ethernet |
| HDMI | HDCP 2.2, EDID, CEC NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system. |
| DisplayPort | HDCP 2.2, EDID |
| 24 VDC 1.0 A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW‑2412WU , optional power pack (sold separately) |
| DM OUT | (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence |
| HDMI OUT | (1) Green LED, indicates HDMI signal presence at the HDMI output |
| HDMI IN 1 – 2 | (2) Green LEDs, each indicates HDMI signal presence at the corresponding HDMI input |
| DISPLAY PORT IN | (1) Green LED, indicates video signal presence at the DisplayPort input |
| USB HID | (1) USB Type A, female; SB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device (USB signal extension & routing), or for connection of a Crestron TT-100 series device (Crestron Connect It) 8 |
| COMPUTER | (1) USB Type B, female; USB 2.0 device port for computer console (setup), or for connection to a computer or other USB HID-compliant host (USB signal extension & routing) |
| LAN | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial port; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 V) up to 19200 baud |
| Ground | (1) 6-32 screw; Chassis ground lug |
| 24 VDC | (1) Green LED, indicates operating power supplied via PoDM+, HDBaseT PoE+, or the optional PW‑2412WU power pack (sold separately) |
| SETUP | (1) Red LED and (1) recessed pushbutton for Ethernet setup |
| RESET | (1) Recessed pushbutton for hardware reset |
| Power over DM (PoDM) | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant PoDM+ PD (Powered Device), capable of being powered by a PoDM+ PSE (Power Sourcing Equipment) 4 |
| Power over HDBaseT | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant HDBaseT PoE+ PD (Powered Device), capable of being powered by an HDBaseT PoE+ PSE (Power Sourcing Equipment) 5 |
| Power pack (optional) | Input: 100-240 VAC, 50/60 Hz Output: 1.25 A @ 24 VDC Model: PW‑2412WU (sold separately) |
| Power Consumption | 12.6 Watts typical using power pack; 13.4 Watts typical using PoDM+ or HDBaseT PoE+; (without a USB powered device connected) |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Heat Dissipation | 43 BTU/hr using power pack; 13.4 BTU/hr using PoDM+ or HDBaseT PoE+ (without a USB powered device connected) |
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented top, front, and bottom |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Height | 11.02 in (280 mm) |
| Width | 5.34 in (136 mm) |
| Depth | 1.07 in (27 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde transmitters çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-TX-4KZ-302-C Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
