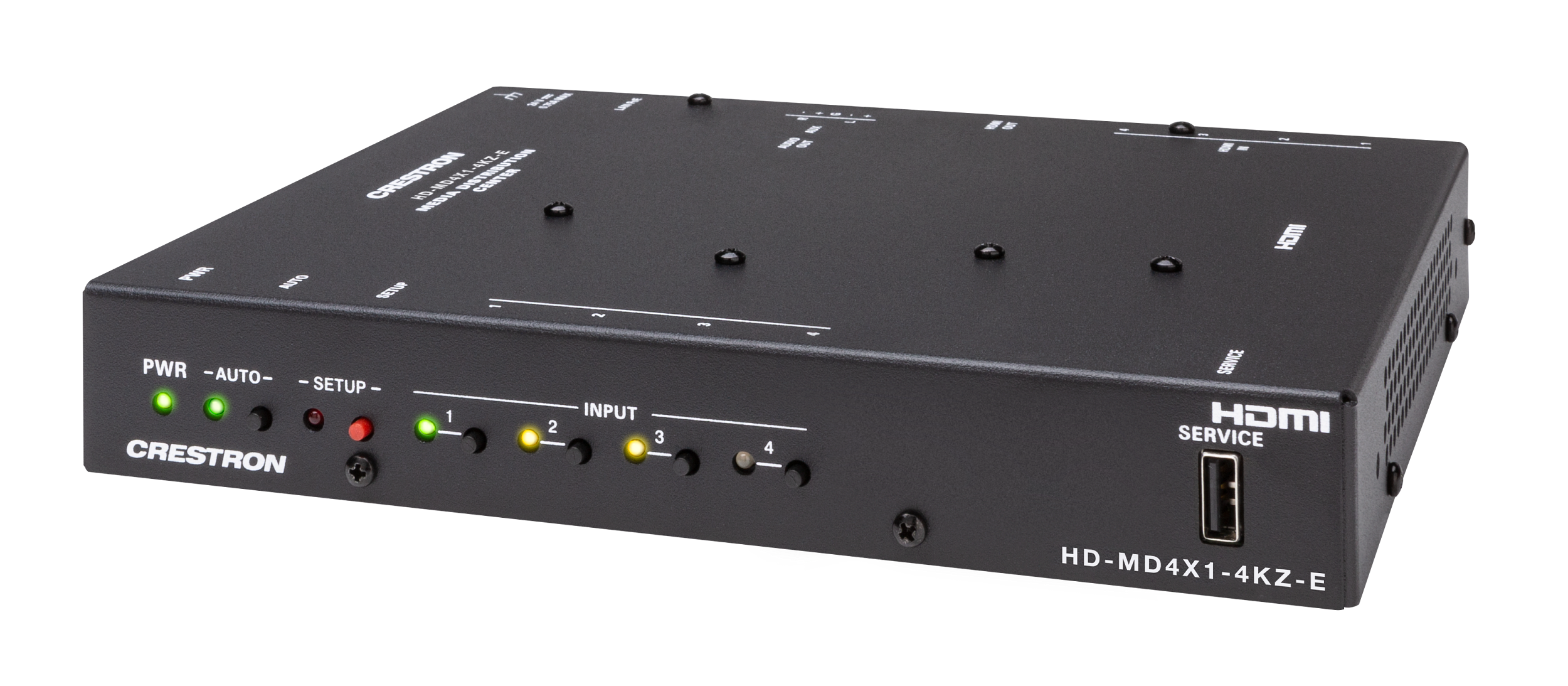

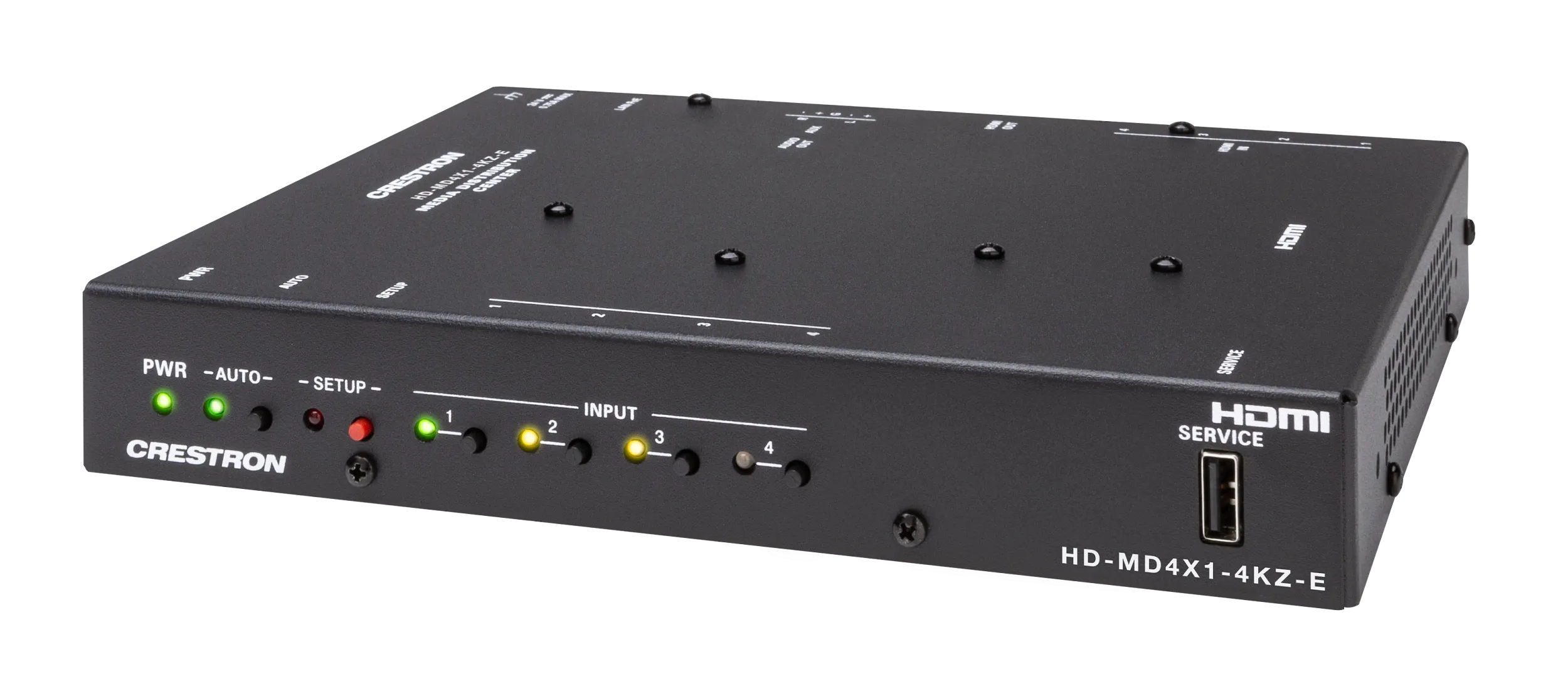

Yüksek performanslı 4K60 4:4:4 AV değiştirici. Dört HDMI® girişi ve bir HDMI çıkışı sağlar. HDR (Yüksek Dinamik Aralık) ve Dolby Vision® video formatları desteğini, HDMI girişlerinin otomatik olarak değiştirilmesini, gelişmiş EDID yönetimini, Ethernet üzerinden yerel Crestron® kontrolünü, XiO Cloud® bağlantısını ve kurumsal düzeyde güvenliği içerir.
Teknik Özellikler
| Input Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, 4K60 4:4:4 support 1, 2 (DVI and Dual-Mode DisplayPort ™ interface compatible 3 ) |
|---|---|
| Output Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support 1, 2 (DVI compatible 4 ) |
| Switcher | 4×1 digital AV switcher |
| Copy Protection | HDCP 2.3 |
| Maximum Resolutions | Common resolutions are listed in the following table. |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| Frequency Response | ±0.5 dB, 20 Hz to 20 kHz |
| THD+N | <0.005%, 1 kHz, 10 dBV |
| S/N Ratio | >95 dB, 10 dBV, 20 Hz to 20 KHz, A-weighted |
| Crosstalk | ≤90 dB, 1 KHz, for multiple inputs only |
| Stereo Separation | ≤80 dB, 20 Hz to 20 kHz |
| Input Signal Type | HDMI (Dual-Mode DisplayPort interface compatible 3 ) |
| Formats | Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels |
| Output Signal Type | HDMI |
| Source | -80 dB to +20 dB adjustment range, plus Mute |
| Master Volume | -80 dB to +20 dB adjustment range, plus Mute |
| Output Signal Type/Format | Stereo 2-channel |
| Volume Control | -80 dB to +20 dB adjustment range, plus Mute, Mono, and Stereo |
| Ethernet | (2) LEDs on RJ-45 LAN connector. Link status LED: Green indicates that a 100BASE-TX link is established. Amber indicates that a 1000BASE-T link is established. Ethernet activity LED: Flashing amber indicates Ethernet activity. |
| USB | For firmware loading and configuration management and to power a USB powered device |
| HDMI | HDCP 2.3, EDID, CEC |
| HDMI IN 1-4 | (4) 19-pin Type A connector, female; HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface compatible 3 ) |
| HDMI OUT | (1) 19-pin Type A connector, female; HDMI digital video/audio output (DVI compatible 4 ) |
| AUDIO OUT, AUX | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Output Impedance: <100 Ohms; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
| LAN PoE | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE (Power over Ethernet) powered device (PD) port; IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) compliant 5 |
| 24 VDC 0.75 A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW-2407WU power pack (sold separately) |
| SERVICE | (1) USB Type A female; For firmware loading and configuration management; Can also provide up to 5 V 500 mA power to a USB powered device |
| G | (1) 6-32 screw, chassis ground lug |
| PWR | (1) LED. Amber indicates that the device is booting. Green indicates that the device is operational. |
| AUTO | (1) Push button to enable or disable automatic switching and (1) green LED to indicate that automatic switching is enabled |
| INPUT 1-4 | (4) Push buttons for manual input selection and (4) LEDs. Green indicates that the corresponding input is routed to the output. Amber indicates that a source is detected at the corresponding input but is not routed to the output. |
| SETUP | (1) Red LED and (1) push button for display of IP address on connected HDMI output |
| PoE | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) compliant, capable of being powered by PoE power sourcing equipment (PSE) 5 |
| Power Pack (Optional) | 0.75 A @ 24 VDC; 100-240 VAC, 50/60 Hz; Model: PW-2407WU (sold separately) |
| Power Consumption | 10 W typical |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 33 BTU/hr typical |
| Acoustic Noise | Not applicable (fanless) |
| Chassis | Metal, black finish, vented sides |
| Mounting | Surface-mountable or attachment to a single rack rail |
| Height | 8.52 in. (217 mm) |
| Width | 7.0 in. (178 mm) |
| Depth | 1.34 in. (34 mm) |
| Regulatory Model | M201946001 |
Kullanım Alanları
- Kurumsal ve ticari projelerde hdmi switcher çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HD-MD4X1-4KZ-E Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
