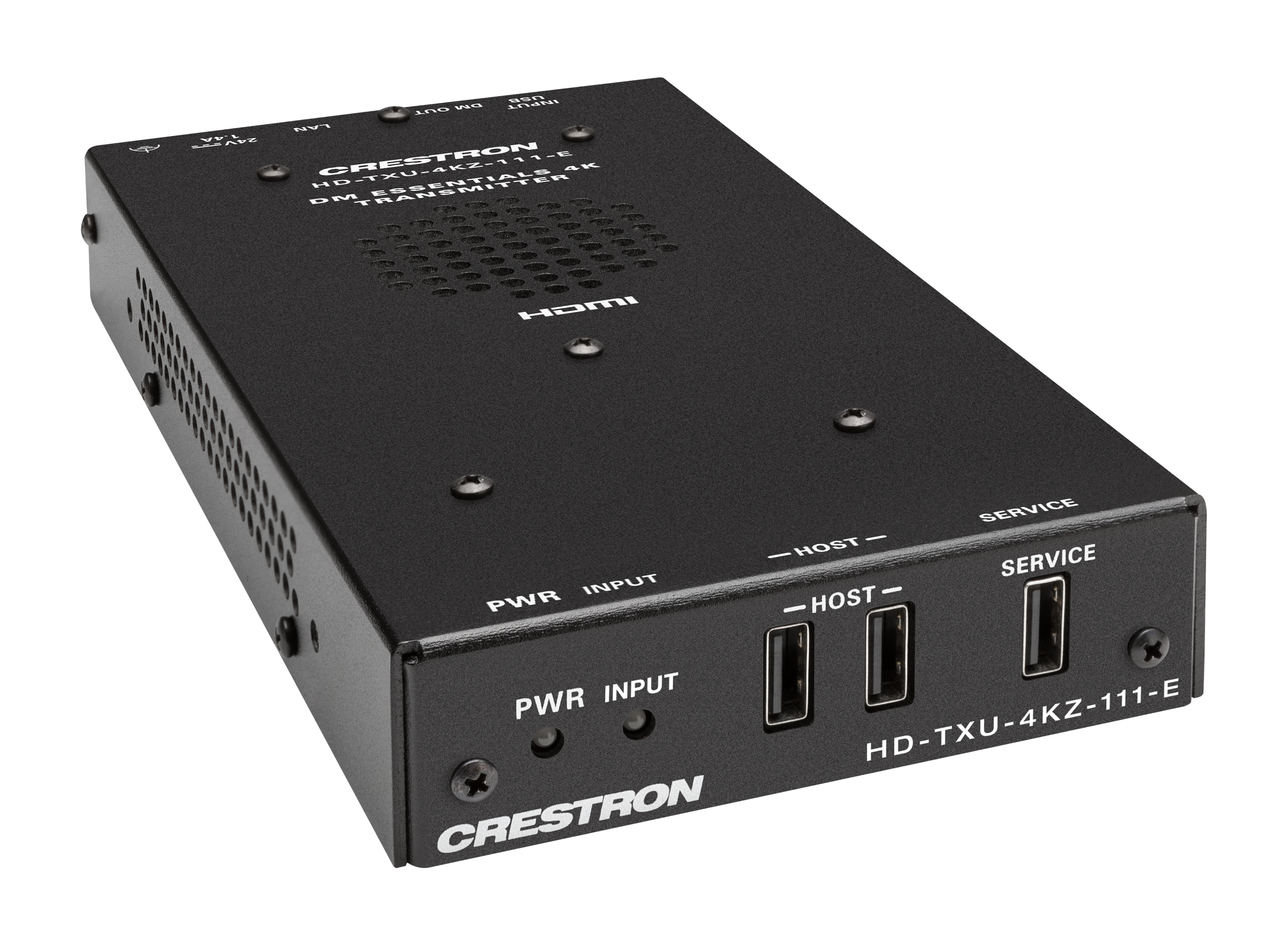

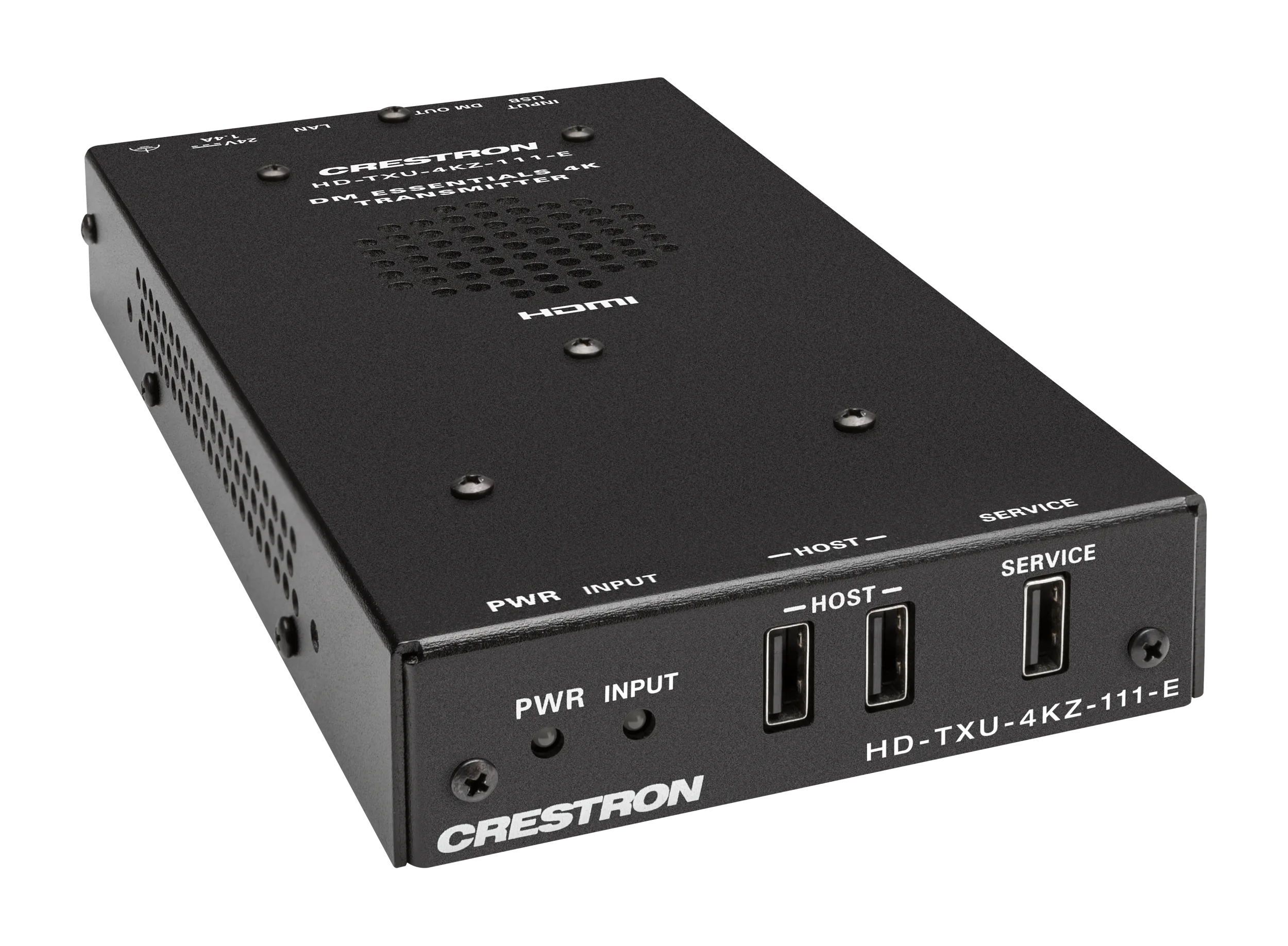

Bir CATx kablosu üzerinden USB-C® DisplayPort™, USB 2.0 ve Ethernet sinyallerinin noktadan noktaya genişletilmesini sağlamak için DM® Essentials HD-RXU-4KZ Serisi alıcıyla birlikte çalışabilirlik. 4K60 4:4:4 videoyu, HDR10+ ve HDCP 2.3'ü destekler.
Teknik Özellikler
| Input Signal Type | DisplayPort over USB-C (DisplayPort Alt Mode) |
|---|---|
| Output Signal Type | DM Essentials |
| Copy Protection | HDCP 2.3 |
| Resolutions | Common resolutions are listed in the following table. |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels |
| USB‑C | HDCP 2.3, EDID, CEC pass-through; USB 2.0 up to 300 Mbps |
| USB | USB signal extension via USB 2.0 host ports; USB host for one TT-100 series cable caddy (sold separately) via SERVICE port |
| DM Essentials | HDCP 2.3, EDID pass-through; USB 2.0 up to 300 Mbps |
| Ethernet | 100/1000 Mbps pass-through |
| USB INPUT | (1) USB Type‑C® connector, female; Digital video/audio input using DisplayPort Alt Mode; 5 USB 2.0 data support |
| DM OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Essentials link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video |
| LAN | (2) LEDs on RJ-45 connector. Green indicates that a 100 Mbps link is established. Solid amber indicates that a 1000 Mbps link is established. Flashing amber indicates 1000 Mbps Ethernet activity. |
| 24V 1.4A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included 4 |
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices; 3 Available Power: 500 mA @ 5VDC per port |
| SERVICE | (1) USB 2.0 Type-A connector, female; Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately); Can also provide up to 5V 500 mA power to a USB powered device |
| Ground | (1) Chassis ground lug |
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. |
| INPUT | (1) Green LED, indicates that the device is receiving a DisplayPort over USB‑C (DisplayPort Alt Mode) input signal |
| Power Pack (Included) | Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU 4 |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 20% to 90% RH (non-condensing) |
| Chassis | Metal, black finish, vented top and sides, 2 mounting brackets included |
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail |
| Height | 1.20 in. (30 mm) |
| Width | 4.19 in. (106 mm) |
| Depth | 7.94 in. (202 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde transmitter w usb çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HD-TXU-4KZ-111-E Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
