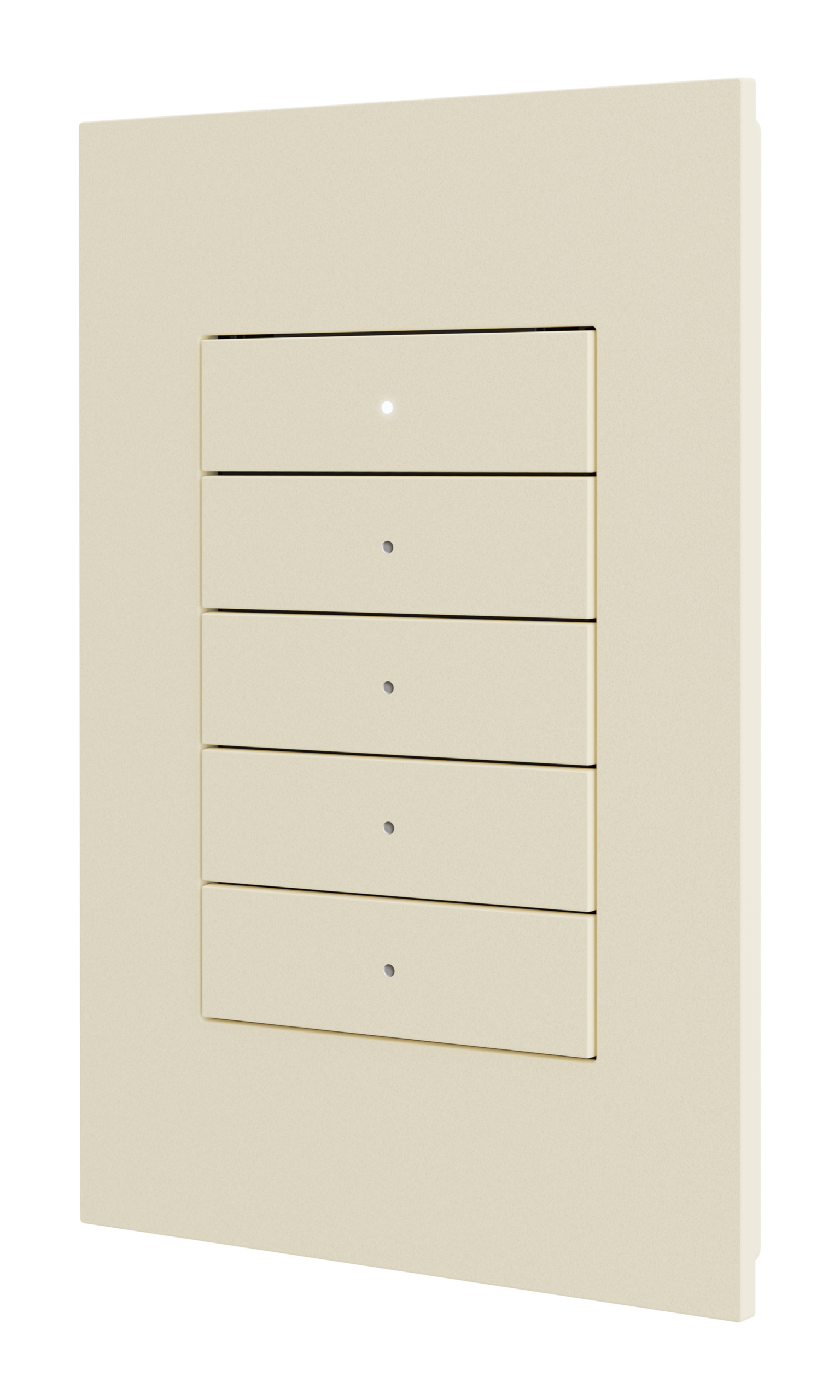

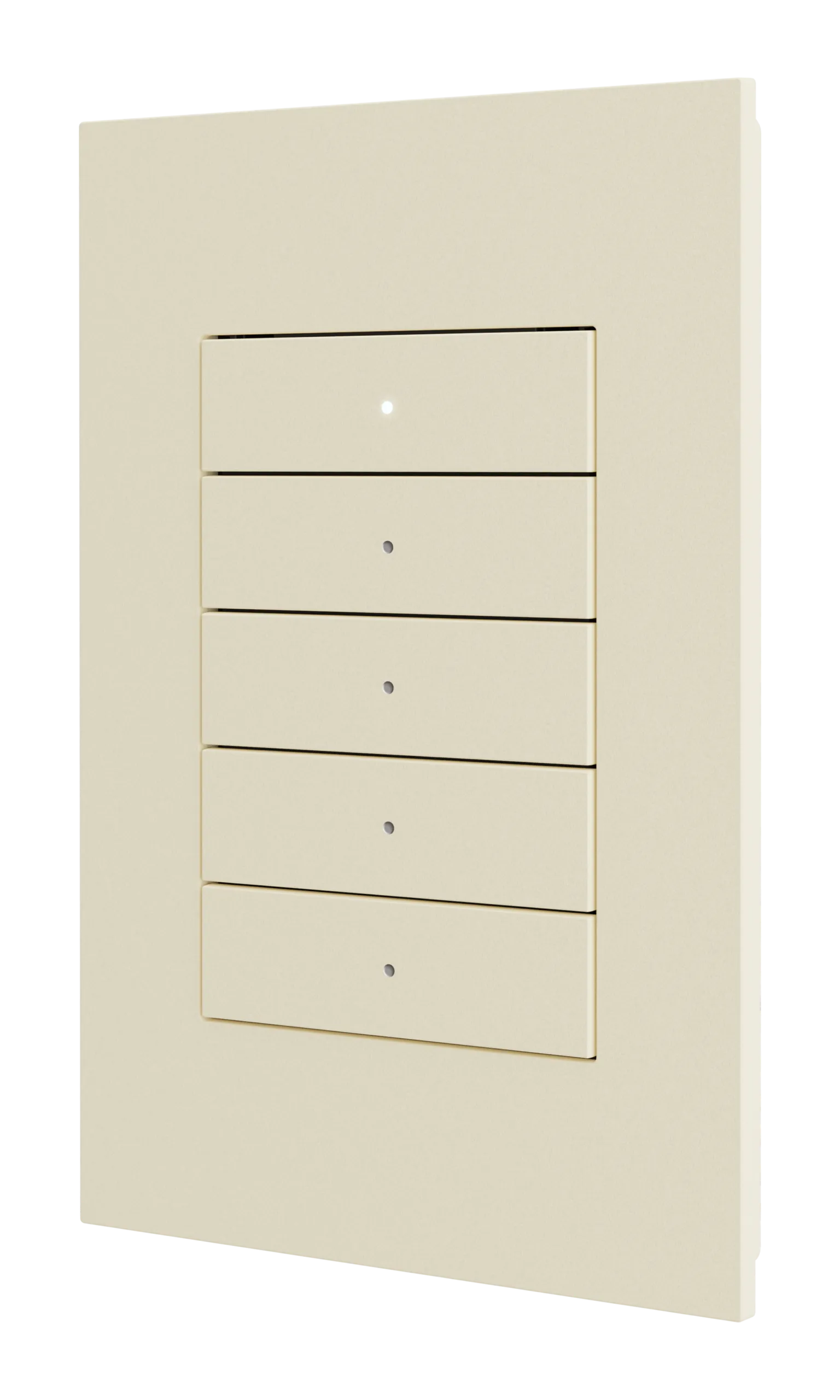

HZ2-KPEX, evdeki aydınlatma, gölgeleme, ses ve diğer olanakların infiNET EX® kablosuz ağ üzerinden kontrolünü sağlayan bir Horizon® 2 tuş takımıdır. Tasarımı, tüm Horizon dimmer, anahtar ve tuş takımı serisiyle eşleşerek yeni veya sonradan takılan kurulumlara mükemmel bir katkı sağlar. HZ2-KPEX-A, beş düğmeli düğme düzeneğinde (Stil 1) Varsayılan Gravür içerir.
Teknik Özellikler
| Line Power | 120VAC, 50/60 Hz; Requires neutral wire connection |
|---|---|
| DC Power | 60VDC, 30 mA ; Requires a SolaHD® SDP™ 1-48-100T power supply (sold separately) |
| Overvoltage Category | III |
| Push button | (9) Push buttons, located under the button assembly; Push buttons are actuated by the installed button assembly |
| Airgap | (1) Switch at the bottom of the device; Controls power to the device and connected loads |
| Button Assembly | (1) Button assembly included; Default engraving: Includes default engraving on a Style 1 button assembly; Custom engraving (ENGRAVED models): Includes custom engraving on any style button assembly; Compatible with Style 1–6 button assemblies NOTE: The center of a rocker-style button cannot be used to actuate a push button. Rocker buttons are included on the HZ2-BTNS-2, HZ2-BTNS-3, HZ2-BTNS-4, HZ2-BTNS-5, and HZ2-BTNS-6 button assemblies. |
| Setup | (1) Push button; Front of the faceplate must be removed to access the push button; Can be used to set the local LED backlight color theme or calibrate the ambient light sensor |
| LED Feedback | (5) RGB LED backlights; Supports one local color theme for all LEDs; Supports one alternate color theme for each backlit position |
| Light Sensor | (1) Photosensor with adjustable sensitivity; Detects the ambient room light level to activate day or night mode and autodimming the backlight |
| RF Transceiver | infiNET EX® 2‑way RF, 2.4 GHz ISM Channels 11‑26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant |
| Range (typical) | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device; Subject to site-specific conditions and individual device capabilities |
| Gateway | Requires a Crestron Wireless Gateway (sold separately) |
| Line | (1) Screw clamp terminal, consists of (2) wire inserts and (1) black screw head; Line power input; Accepts (1) 14-12 AWG wire per insert, do not insert wires behind screw head |
| Neutral | (1) Screw clamp terminal, consists of (2) wire inserts and (1) silver screw head; Neutral input; Accepts (1) 14-12 AWG wire per insert, do not insert wires behind screw head |
| Remote | (1) Screw clamp terminal, consists of (2) wire inserts and (1) blue screw head; Remote input from HZ2‑AUX or HZ2‑KPEX ; Accepts (1) 14-12 AWG wire per insert, do not insert wires behind screw head |
| Ground | (1) 12 AWG flying lead, Class 1, green with yellow stripe; Ground; Wire nut included |
| Temperature | 32° to 86°F (0° to 30°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Pollution Degree | 2 |
| Mounting | Mounts in a 1‑ to 4-gang U.S. electrical box (not included); 3.5 in. (26 mm) electrical box depth recommended; Derating required in multigang applications |
| Faceplate | Requires a Horizon® 2 faceplate ( HZ2‑FP‑G , sold separately, metal backplate included with faceplate); Multigang installations require a 2-, 3-, or 4-gang Horizon® 2 faceplate with metal backplate ( HZ2‑FP‑G , sold separately); The metal backplate is required for all installations where the electrical box is flush with or recessed from the wall surface; The metal backplate is not recommended for electrical boxes that protrude beyond the wall surface |
| Height | 4.13 in. (105 mm) , air-gap switch extends 0.26 in. (7 mm) from bottom of keypad |
| Width | 1.80 in. (46 mm) |
| Depth (Textured) | 1.75 in. (45 mm) overall, extends 0.44 in. (12 mm) from wall surface when installed |
| Depth (Glass, Metal) | 1.83 in. (47 mm) overall, extends 0.46 in. (12 mm) from wall surface when installed |
Kullanım Alanları
- Kurumsal ve ticari projelerde tuş takımları (keypad) çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HZ2-KPEX-A Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
