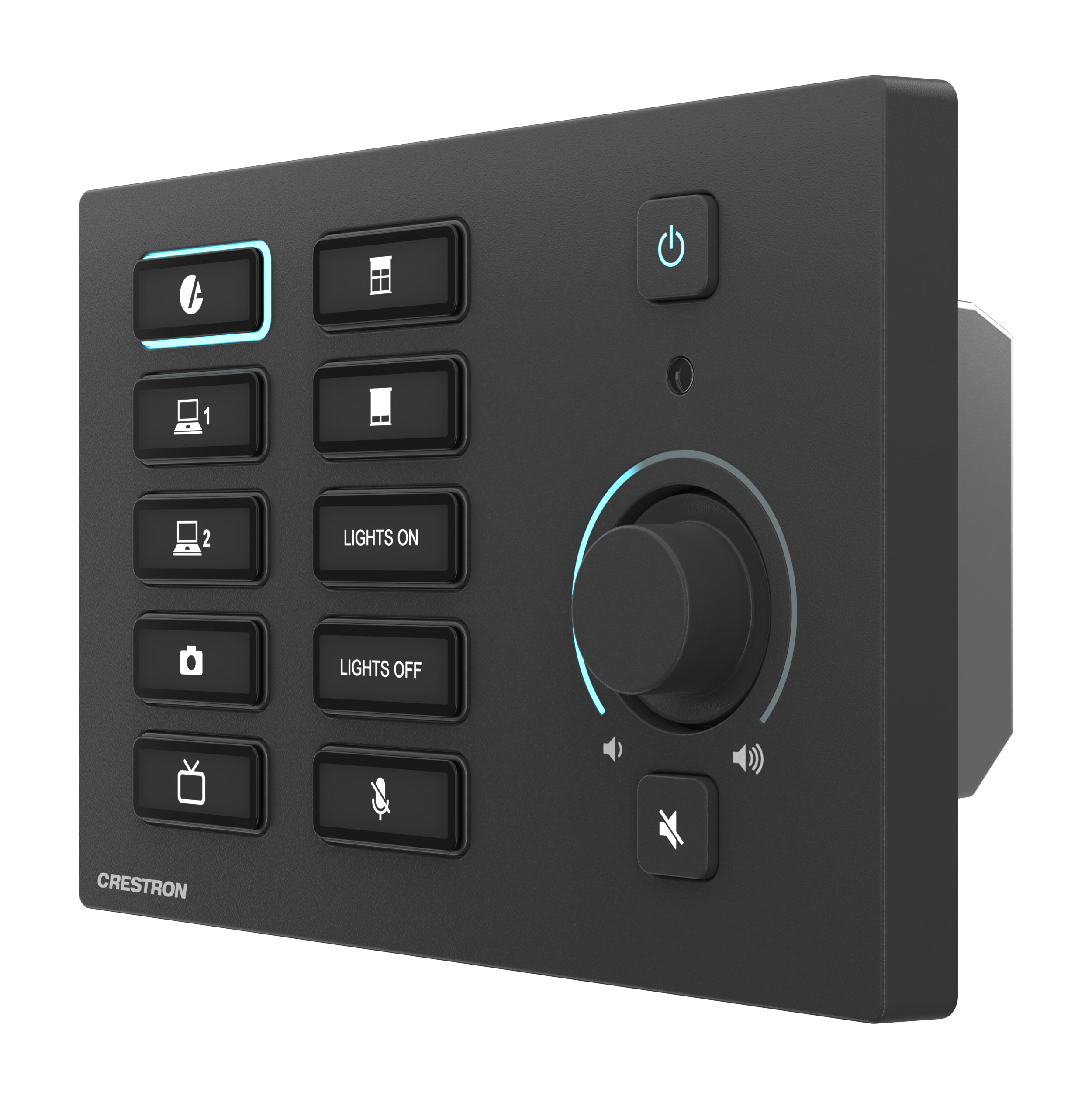

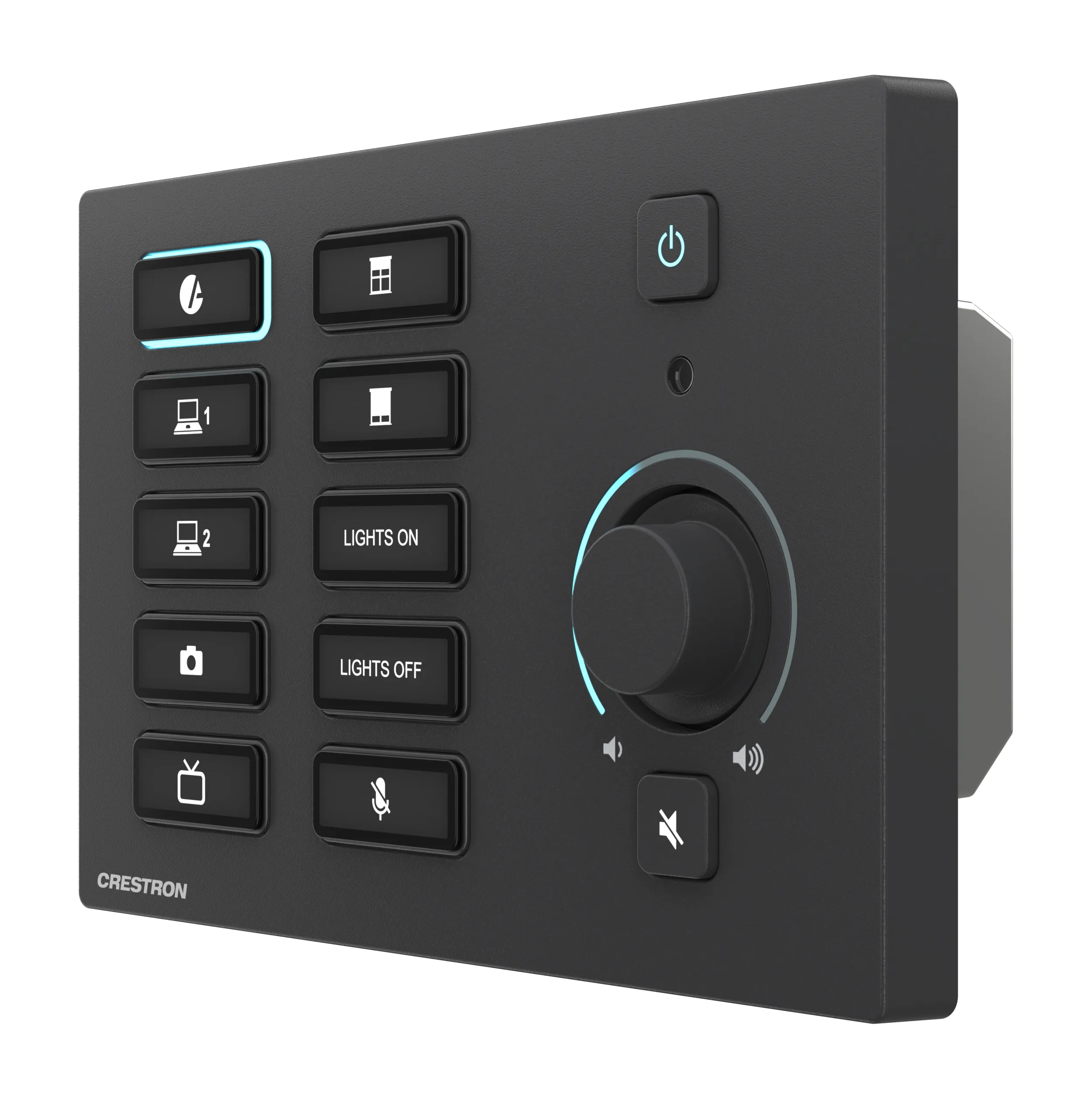

Duvara monte, PoE+ destekli 4-Serisi Control System® otomatik işlemci ve kontrol paneli bir arada. Özelleştirilebilir arkadan aydınlatmalı düğmeler ve ses düğmesiyle modern bir görünüme sahiptir. 3'lü ABD elektrik kutusuna veya masa üstü muhafazaya monte edilir.
Teknik Özellikler
| Ethernet | 1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet/IP 2 , IPv4 or IPv6, Active Directory authentication, SMTP email client, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, I802.3at Type 2 PoE+ compliant |
|---|---|
| Cresnet® Network | Cresnet server mode |
| RS-232 | For 2-way device control and monitoring, supports RS-232 up to 115.2k baud with hardware and software handshaking |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud |
| NET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet server port |
| LAN PoE | (1) 8-pin RJ-45 connector, female; 1000BASE-TX Ethernet port; PoE+ (Power over Ethernet Plus) PD (Powered Device) port |
| RELAY | (1) 4-pin detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5V) up to 115.2k baud; ( IRP2 emitter sold separately) |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; hardware and software handshaking support |
| I/O | (1) 3-pin 3.5 mm detachable terminal block; Comprises (2) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5V, 2k Ω pull-up resistor per pin |
| Ground | (1) 6-32 screw; Chassis ground lug (flying lead with ring terminal included) |
| Assignable Buttons | (10) Push buttons, customizable via labels (25 predesignated labels and five blank included); Custom laser-etched labels available in black ( MPB4/MPC4-BTN5-B ENGRAVED ) or white (MPB4/MPC4-BTN5-W ENGRAVED ), both sold separately |
| Mute | (1) Projected capacitive push button with mute icon |
| -/+ | (2) Projected capacitive push buttons labeled with – (minus) and + (plus) icons for volume control |
| Volume | (1) Knob (continuous turn rotary encoder) for volume control |
| Volume Gauge | (1) Blue LED multisegment circular graph surrounding the volume knob for volume level indication |
| Power | (1) Projected capacitive push button labeled with power icon |
| HW-R | (1) Push button (behind front panel) for hardware reset (reboots the processor) |
| SW-R | (1) Push button (behind front panel) for software reset (restarts the software program) |
| LAN PoE | (2) LEDs (on rear panel LAN port), green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Illumination | Each front panel button is individually backlit—white when inactive and blue when active; autobrightness control adjusts all backlighting in three levels according to the ambient light level; backlighting may be dimmed or extinguished when unit enters idle state |
| SDRAM | 2 GB |
| Power over Ethernet | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP |
| Available Cresnet Power | 2.5 W (104mA @ 24VDC) |
| Power Consumption | 8.5 W typical |
| Temperature | 41 to 95°F (5 to 35°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 23 BTU/hr |
| Housing | Plastic with metal mounting plate, removable front panel with optional security screw |
| Flush Wall Mount | Mounts in a 3-gang U.S. plaster ring or electrical box, ≥2-1/2 in. (64 mm) depth recommended (not included) |
| Lectern Mount | Mounts in a 2-11/16 x 5-13/32 in. (69 x 138 mm) cutout using bracket provided |
| Tabletop Mount | Sits on, or mounts to, a tabletop using optional tabletop kit ( TTK-MP/MPC/IPAC series , sold separately) |
| Height | 4.50 in. (114 mm) |
| Width | 6.70 in. (170 mm) |
| Depth | 2.40 in. (60 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde wall mount keypad çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron MPC4-302-B Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
