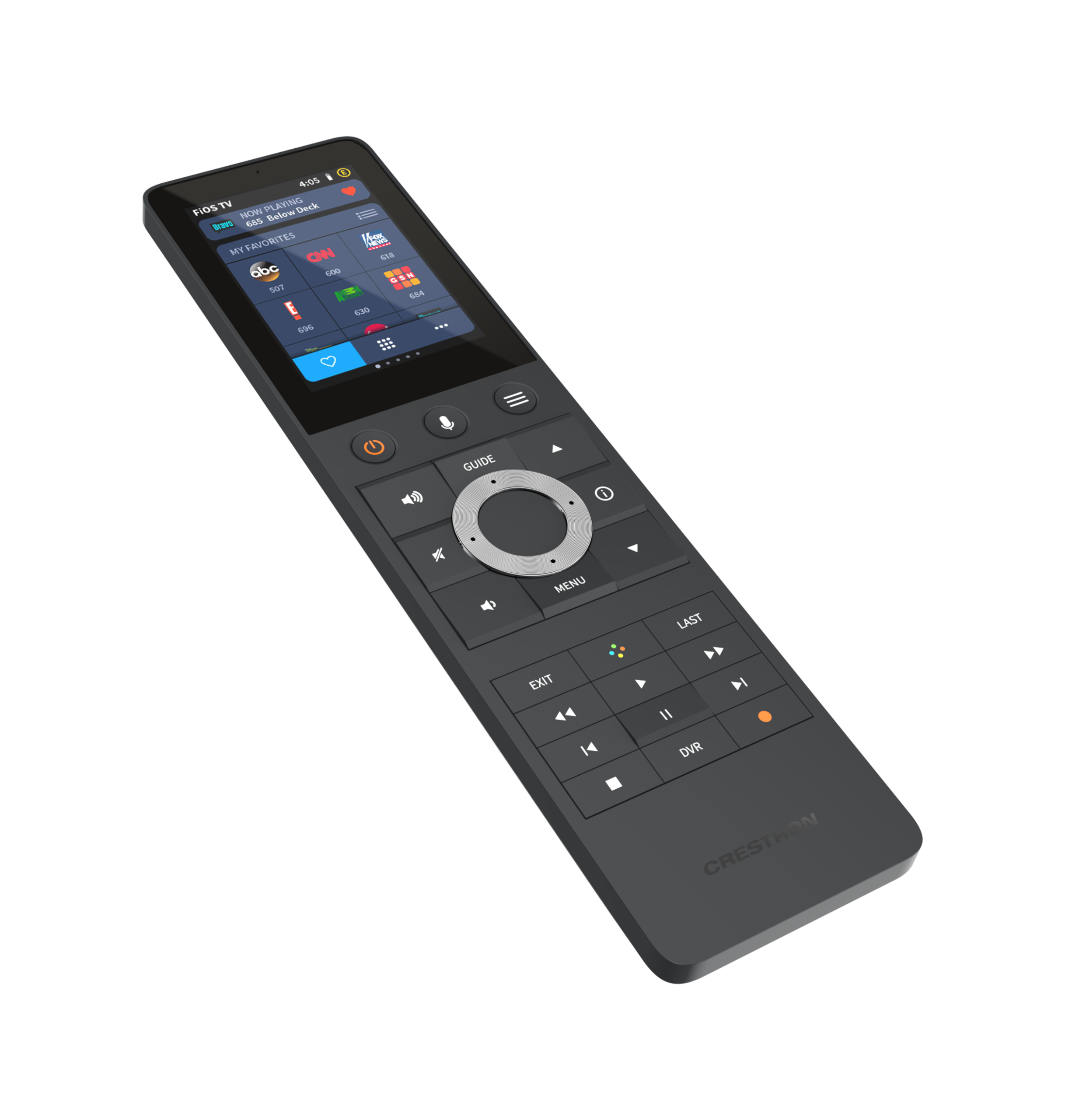

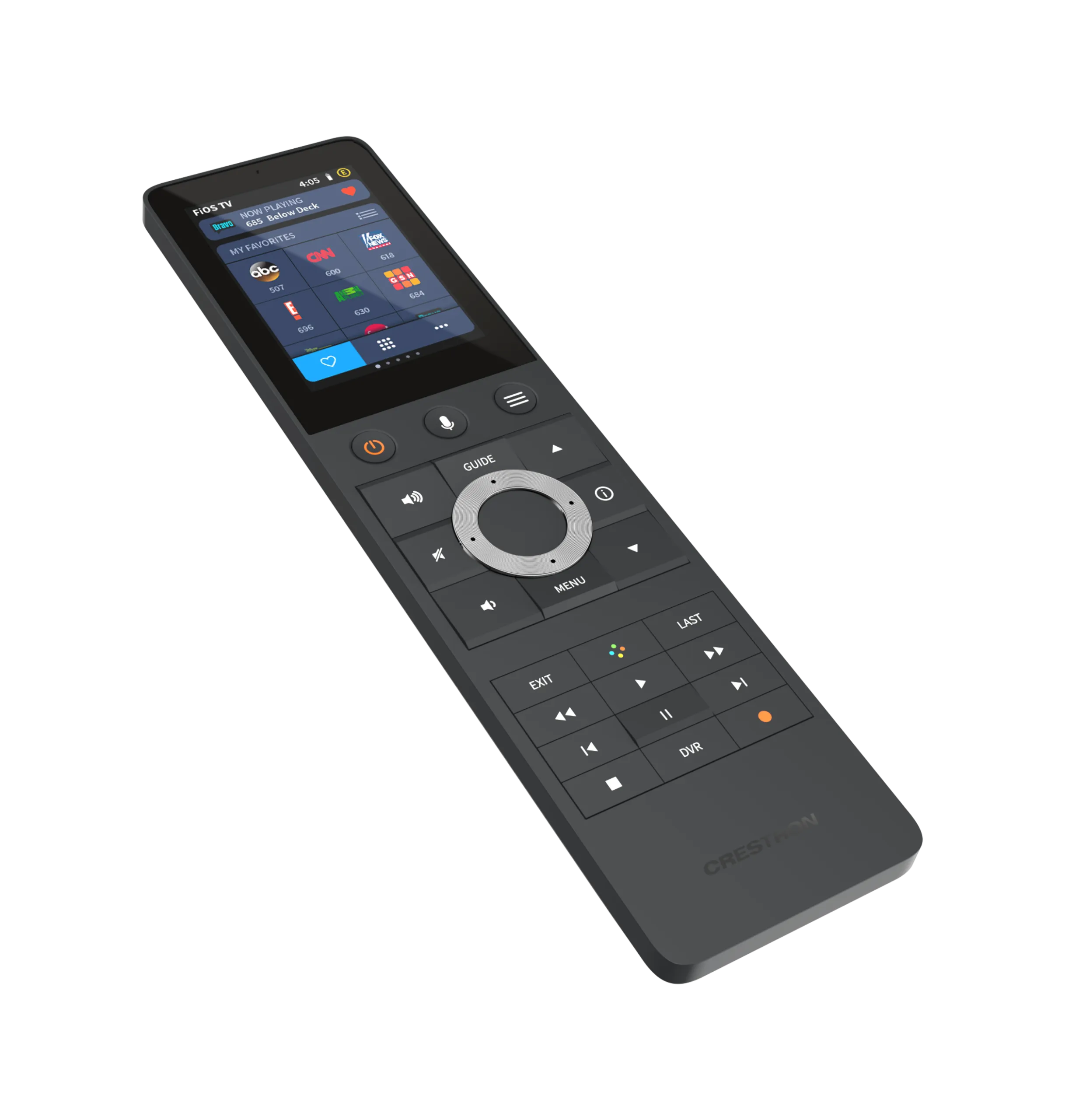

3 inç (76 mm) renkli dokunmatik ekrana, arkadan aydınlatmalı tuşlara, sesle kontrol özelliğine ve gelişmiş Wi-Fi® kablosuz iletişimlere sahip zarif, ergonomik ve sağlam el tipi uzaktan kumanda. Hareket algılama, elinize alındığında uzaktan kumandayı uyandırır, böylece her zaman kullanıma hazır olur.
Teknik Özellikler
| Display Type | TFT active matrix color LCD |
|---|---|
| Size | 3.00 in. (76 mm) diagonal |
| Aspect Ratio | 3:2 HVGA (portrait orientation) |
| Resolution | 320 x 480 pixels |
| Brightness | 410 nits (cd/m 2 ) typical |
| Contrast | 700:1 typical |
| Color Depth | 18-bit, 262,144 colors |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Illumination | White LED backlighting behind all button labels with autobrightness control (adjustable high, medium, and low settings) |
| Touch Screen | Projected capacitive, 3-point multi‑touch capable |
| Power | (1) Programmable pushbutton with red power icon |
| Voice | (1) Pushbutton with microphone icon, initiates voice command capture 2 |
| Home | (1) Programmable pushbutton with list icon |
| Functions | (8) Programmable pushbuttons with text or icons for volume up, volume down, mute, guide, menu, up, down, and info |
| Navigation Pad | (1) Metal-plated programmable five-way directional navigation pad for up, down, left, right, and select; alternately functions as four context dependent option buttons when the ‘four color mode’ button is pressed (navigation pad icons illuminate green, blue, red, and yellow in this mode) |
| Transport | (11) Programmable pushbuttons with text or icons for exit, last, rewind, play, forward, previous, pause, next, stop, DVR, and record |
| Graphics Engine | Crestron Smart Graphics technology, on‑screen numeric keypad and multi‑language keyboard, screensaver, Performance UI for Crestron Home OS |
| Maximum Project Size | 512 MB |
| Smart Graphics | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai |
| On-Screen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Voice Recognition | Afrikaans (South Africa); Chinese, Mandarin (China, Simplified); Chinese, Mandarin (Hong Kong, Simplified); Chinese, Mandarin (Taiwan, Traditional); Chinese, Yue (Hong Kong, Traditional); Czech (Czech Republic); Dutch (Netherlands); English (Australia); English (Canada); English (Generic); English (India); English (New Zealand); English (South Africa); English (UK); English (US); French (France); German (Germany); isiZulu (South Africa); Italian (Italy); Japanese (Japan); Korean (South Korea); Polish (Poland); Portuguese (Brazil); Russian (Russia); Spanish (Spain); Turkish (Turkey) |
| Performance UI | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai |
| Transceiver | IEEE 802.11a/b/g/n Wi-Fi (2.4 or 5GHz 2-way RF), static IP or dynamic IP via DHCP 3 |
| Security | 64 & 128-bit WEP, WPA & WPA2‑PSK with TKIP & AES |
| Range | Up to 50 ft (15 m), subject to site-specific conditions |
| Handoff | Supports handoff between a maximum of four Wi-Fi wireless access points 3 |
| Gateway | Requires an 802.11a/b/g/n wireless access point and Ethernet-enabled Crestron control system |
| USB | (1) Micro-USB Type B console port behind battery compartment cover, for installer use only |
| Features | Built-in microphone for multi‑language voice recognition 2 |
| Charging Contacts | (2) Contacts which mate with the charging terminals on the table dock |
| Rechargeable Battery | Li-Polymer, 3.7V, 2000 mAh, model TSR-310-BTP |
| Usage per Charge | 5.5 hours continuous |
| Charging Time | 3 hours |
| Power Pack (included) | Input: 100-240VAC, 50/60 Hz; Output: 2A @ 5VDC; Power connection is made via the charging dock. |
| Temperature | 32° to 104°F (0° to 40°C); 50° to 104°F (10° to 40°C) while charging |
| Humidity | 10% to 90% RH (noncondensing) |
| Height | 0.95 in. (24 mm) |
| Width | 2.28 in. (58 mm) |
| Depth | 8.68 in. (221 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde handheld remote çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron TSR-310-B Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
