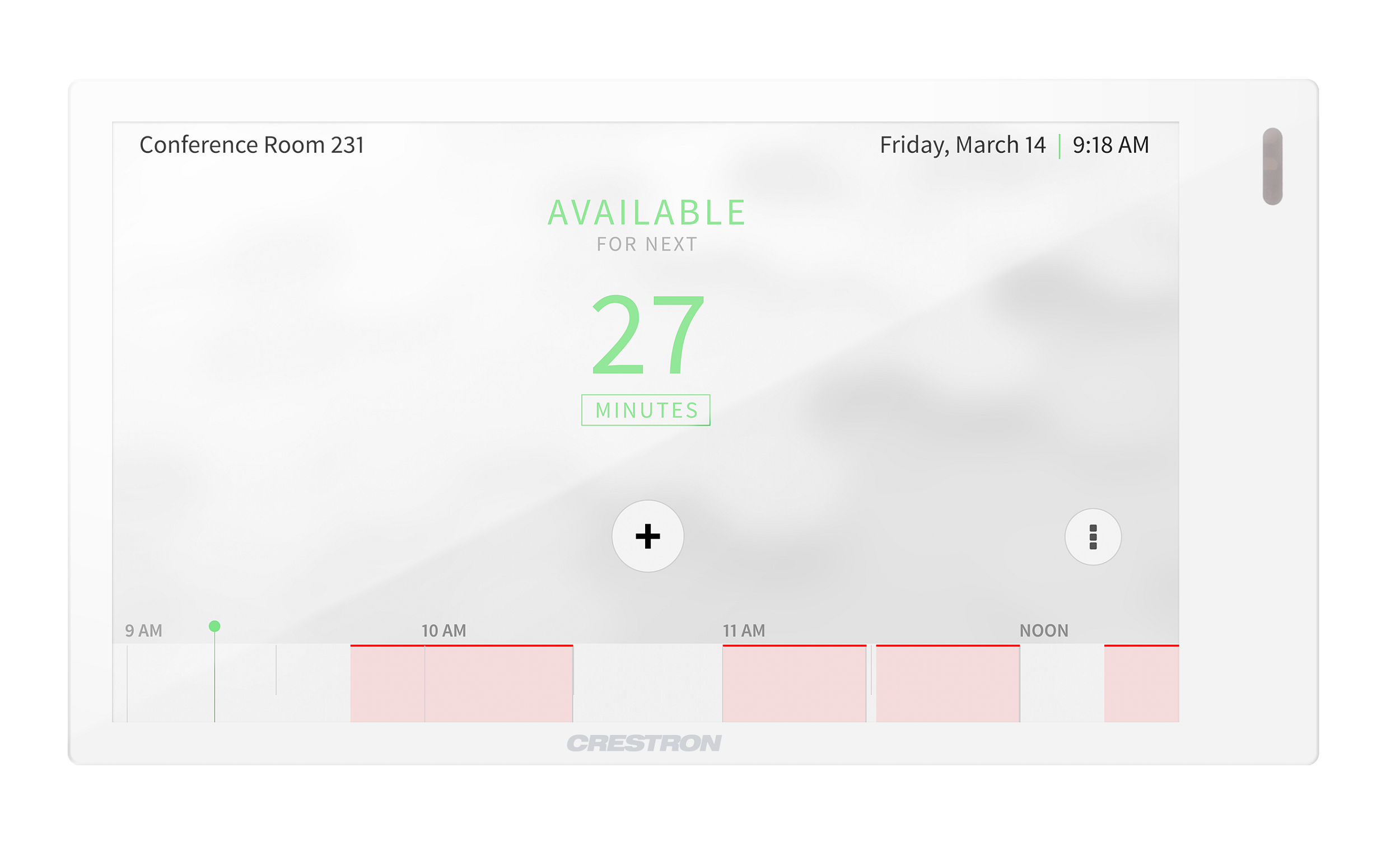

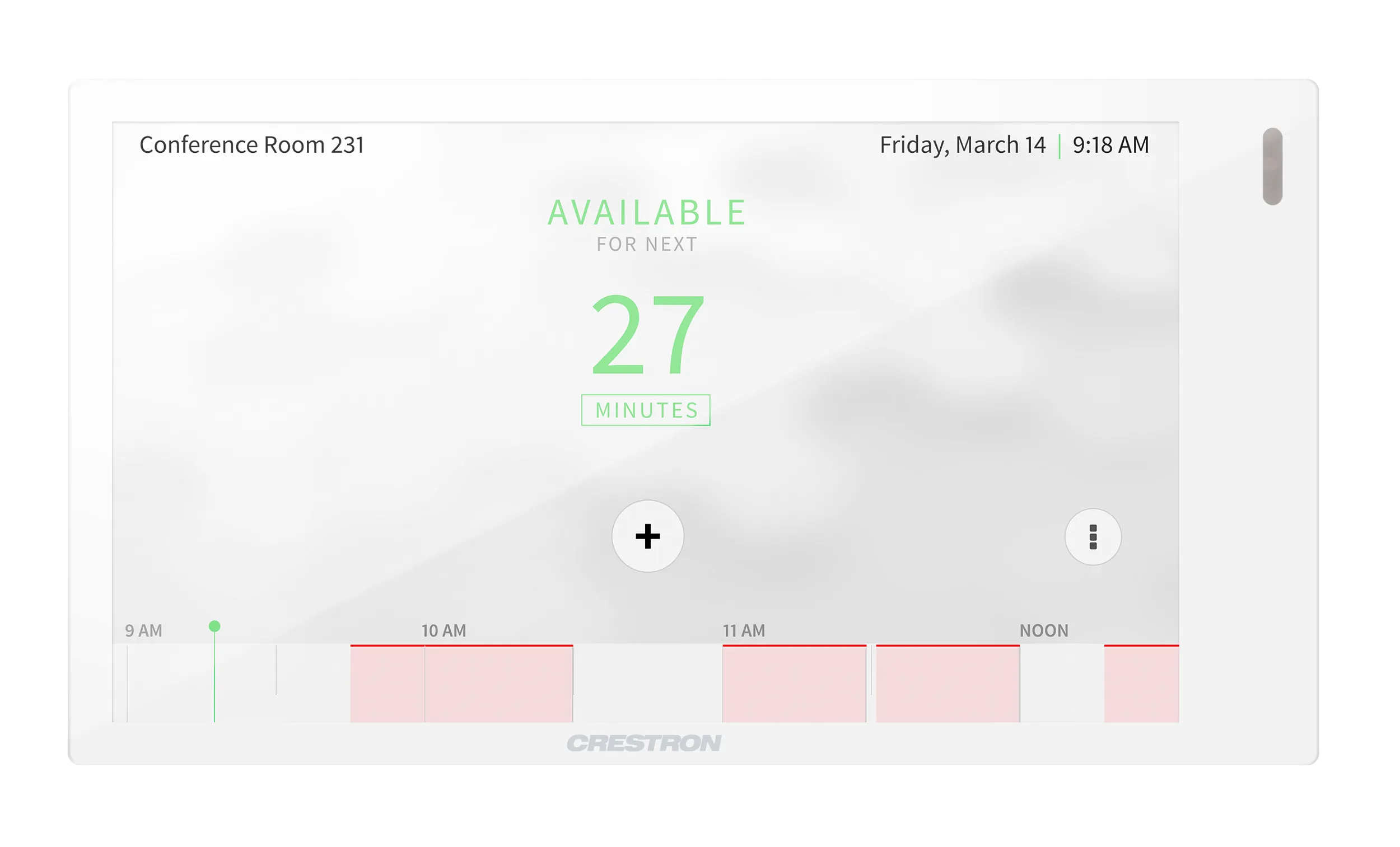

Crestron TSW-570-W-S — 5 inç Duvara Monte Dokunmatik Ekran, Beyaz Pürüzsüz

Crestron TSW-570-W-S — 5 inç Duvara Monte Dokunmatik Ekran, Beyaz Pürüzsüz

Web’de gezinme, Crestron HTML5 ve Smart Graphics® yazılım teknolojisi, özel programlanabilir simgeler, H.265/H.264 video akışı ve PoE+ (Power over Ethernet Plus) ağ gücü özelliklerine sahip şık ve çok yönlü, duvara monte dokunmatik ekran. Oda planlaması için yerel bir uygulama içerir.

Stok kodu: TSW-570-W-S Kategoriler:

Web'de gezinme, Crestron HTML5 ve Smart Graphics® yazılım teknolojisi, özel programlanabilir simgeler, H.265/H.264 video akışı ve PoE+ (Power over Ethernet Plus) ağ gücü özelliklerine sahip şık ve çok yönlü, duvara monte dokunmatik ekran. Oda planlaması için yerel bir uygulama içerir.

Öne Çıkan Özellikler

  • Yeni nesil Crestron® duvara monte dokunmatik ekran
  • 5 inç (127 mm) geniş ekran aktif matris renkli ekran ve 1280 x 720 HD 720 ekran çözünürlüğü
  • Kapasitif dokunmatik ekran
  • Özel programlanabilir sanal kontrol düğmeleri
  • Crestron HTML5 ve Smart Graphics® yazılımı özel kullanıcı projelerini destekler
  • H.265, H.264 veya MJPEG akışlı video ekranı
  • Yerel Crestron oda planlama uygulaması
  • Yerleşik web tarama
  • PoE veya PoE+ gücüyle tek kablolu Ethernet bağlantısı
  • Oda müsaitliği aksesuarları için çift USB 2.0 bağlantı noktası
  • Kurumsal düzeyde güvenlik ve kimlik doğrulama
  • Web, bulut veya cihaz tabanlı yapılandırma
  • Sağlanan montaj braketi ile duvara montaj

Teknik Özellikler

Display Type TFT active matrix color LCD
Size 5 in. (127 mm) diagonal
Aspect Ratio 16:9 HD 720
Resolution 1280 x 720 pixels
Brightness 400 nits (cd/m²)
Contrast 800:1
Color Depth 24 bit, 16.7M colors
Illumination Edgelit LED with auto brightness control
Viewing Angle ±80° horizontal, ±80° vertical
Touch Screen Projected capacitive, 5-point multitouch capable
Hard Keys (5) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, and Down, optional custom programming via control system for additional functions
Reset (1) Pin hole on rear panel for hardware reset
Crestron Scheduling App Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) 2
Smart Graphics Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
Onscreen Keyboard Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Web Browser 3 Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling 2 Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
RAM 2 GB LPDDR3
Storage Firmware/Application: 16 GB eMMC pSLC
Maximum Project Size 600 MB
Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
USB (2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories 3
Video Formats H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Bitrates Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions Up to 1920×1080@30fps
Protocol RTSP
LAN PoE (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
PoE (Power over Ethernet) IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Temperature 32 to 104°F (0 to 40°C)
Humidity 10% to 95% RH (noncondensing)
Heat Dissipation 44 BTU/hr
Housing Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
Mounting Surface mount over a 2 in. H x 3-3/4 in. W (51 mm H x 96 mm W) cutout; 2-13/16 in. (72 mm) minimum mounting depth; 1-1/4 in. (32 mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket assembly included Back box and rack mount options sold separately
Height 2.84 in. (72 mm)
Width 5.14 in. (131 mm)
Depth 1.97 in. (50 mm)

Kullanım Alanları

  • Kurumsal ve ticari projelerde dokunmatik paneller çözümü
  • Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
  • Profesyonel kurulum ve merkezi yönetim

Sıkça Sorulan Sorular

Crestron TSW-570-W-S Türkiye’de satılıyor mu?

Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.

Teknik destek ve kurulum sağlanıyor mu?

Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.

Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.

Marka

Crestron
Display Type

TFT active matrix color LCD
Size

5 in. (127 mm) diagonal
Aspect Ratio

16:9 HD 720
Resolution

1280 x 720 pixels
Brightness

400 nits (cd/m²)
Contrast

800:1
Color Depth

24 bit, 16.7M colors
Illumination

Edgelit LED with auto brightness control
Viewing Angle

±80° horizontal, ±80° vertical
Touch Screen

Projected capacitive, 5-point multitouch capable
Hard Keys

(5) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, and Down, optional custom programming via control system for additional functions
Reset

(1) Pin hole on rear panel for hardware reset
Crestron Scheduling App

Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only) 2
Smart Graphics

Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai
Onscreen Keyboard

Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish
Web Browser 3

Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese
Room Scheduling 2

Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
RAM

2 GB LPDDR3
Storage

Firmware/Application: 16 GB eMMC pSLC
Maximum Project Size

600 MB
Ethernet

100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
USB

(2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories 3
Video Formats

H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG)
Bitrates

Up to 25 Mbps (20 Mbps maximum recommended)
Input Resolutions

Up to 1920×1080@30fps
Protocol

RTSP
LAN PoE

(1) 8-pin RJ-45 connector, female, with 2 LED indicators; 100BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
PoE (Power over Ethernet)

IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
Temperature

32 to 104°F (0 to 40°C)
Humidity

10% to 95% RH (noncondensing)
