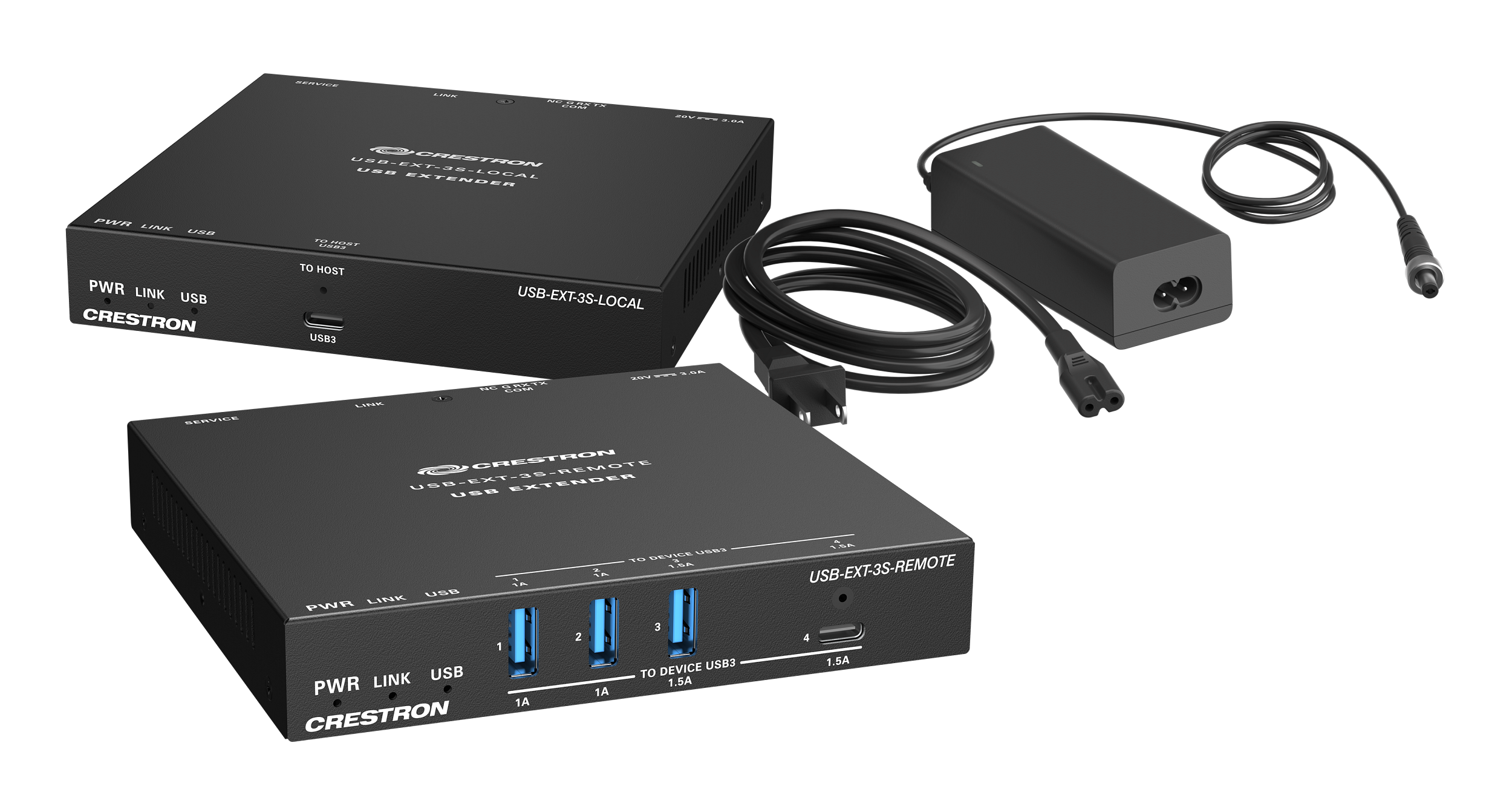

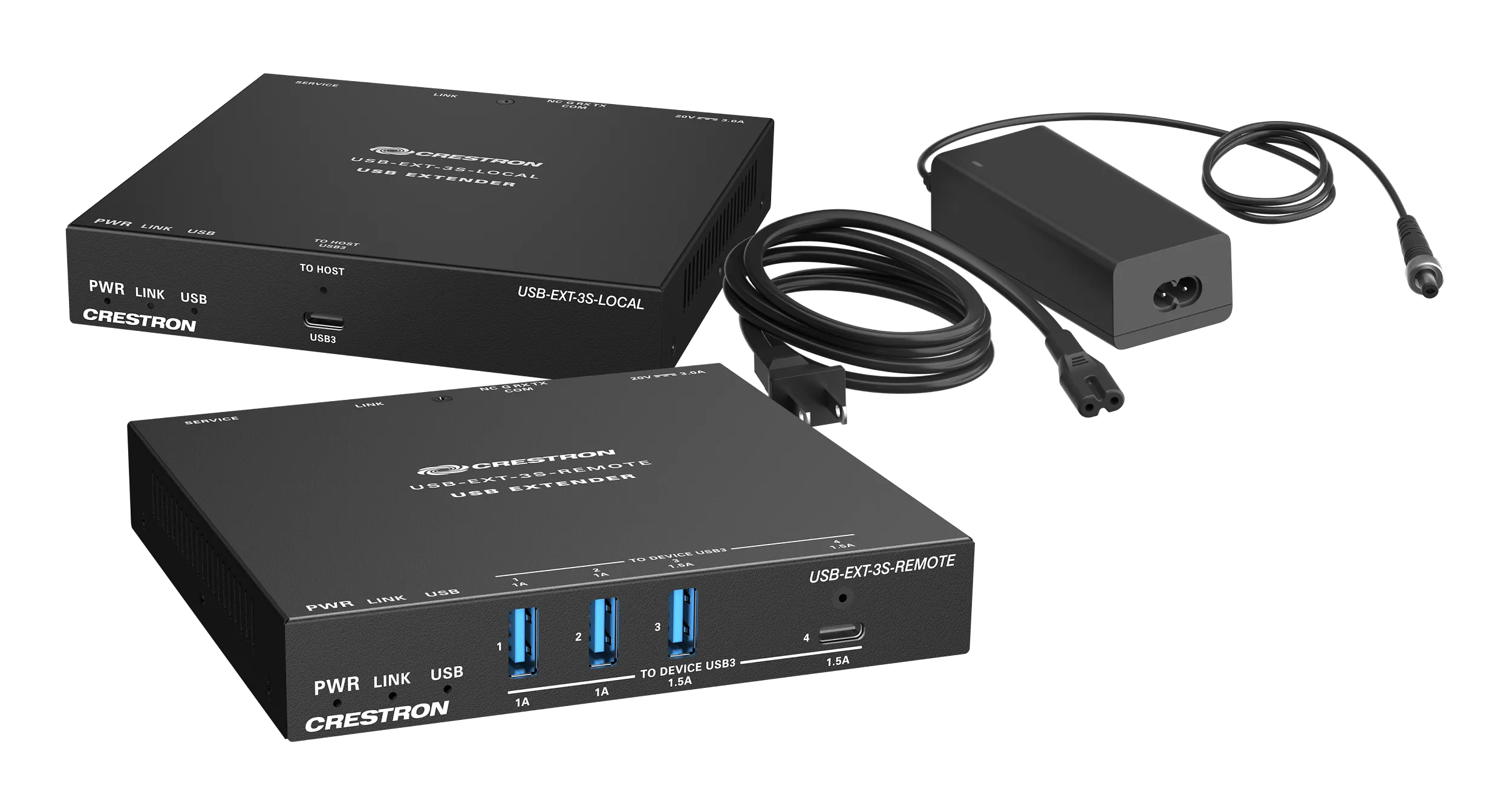

USB 3.2, 2.0 veya 1.1 aygıtlarını bir CAT6a/CAT7 (veya daha iyisi) korumalı bükümlü çift kablo üzerinden noktadan noktaya 330 ft'ye (100 m) kadar uzatır.
Teknik Özellikler
| LINK | (1) Green LED, indicates that a link is established between the local and remote endpoints |
|---|---|
| USB Speeds | USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| RS-232 | Bidirectional serial pass-through |
| 20V 3.0A | (1) locking DC power connector; 20VDC power input; PW‑2030DU power supply included 4 |
| TO HOST USB3 | (1) USB Type-C® connector, female; USB 3.2 Gen 1 host port for connection to computer, media server, game console, or other USB host; 1 Backward compatibility with USB 2.0 and USB 1.1 |
| COM | (1) 4-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; Fourth pin (labeled NC ) not used |
| SERVICE | For factory use only |
| TO DEVICE USB3 1-2 | (2) USB Type-A connectors, female; USB 3.2 Gen 1 device ports for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices; 2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1A per USB port |
| TO DEVICE USB3 3 | (1) USB Type-A connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices; 2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| TO DEVICE USB3 4 | (1) USB Type-C connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices; 2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| PWR | (1) Green LED, indicates that power is being supplied from the included power pack or over the LINK connection |
| USB | (1) Green LED; Solid indicates that only USB 3 (or greater) devices are connected and the link is active; Flashing green indicates that one or more USB 2 (or lower) devices are connected and the link is active; Off indicates that no USB devices are connected |
| Power Pack (Included) 4 | Input: 100-240VAC, 50/60 Hz; Output: 3.0A @ 20VDC; Model PW‑2030DU included |
| Power Consumption | 31.28 W total between LOCAL and REMOTE; 25 W allocated to 4 USB devices NOTE: When a remote endpoint receives power over the LINK connection from a local endpoint, the total USB power available to connected peripherals will be less than 17.5 W (3.5A). |
| Temperature | Operating: 32° to 122°F (0° to 50°C) Storage: -4° to 158°F (-20° to 70°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | Metal, black finish, vented sides |
| Mounting | Freestanding or surface mountable (mounting hardware included) |
| Height | LOCAL: 0.89 in. (23 mm); REMOTE: 0.89 in. (23 mm) |
| Width | LOCAL: 5.12 in. (130 mm); REMOTE: 5.12 in. (130 mm) |
| Depth | LOCAL: 4.90 in. (125 mm); REMOTE: 4.90 in. (125 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde extender kit çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron USB-EXT-3S-SYSTEM Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
