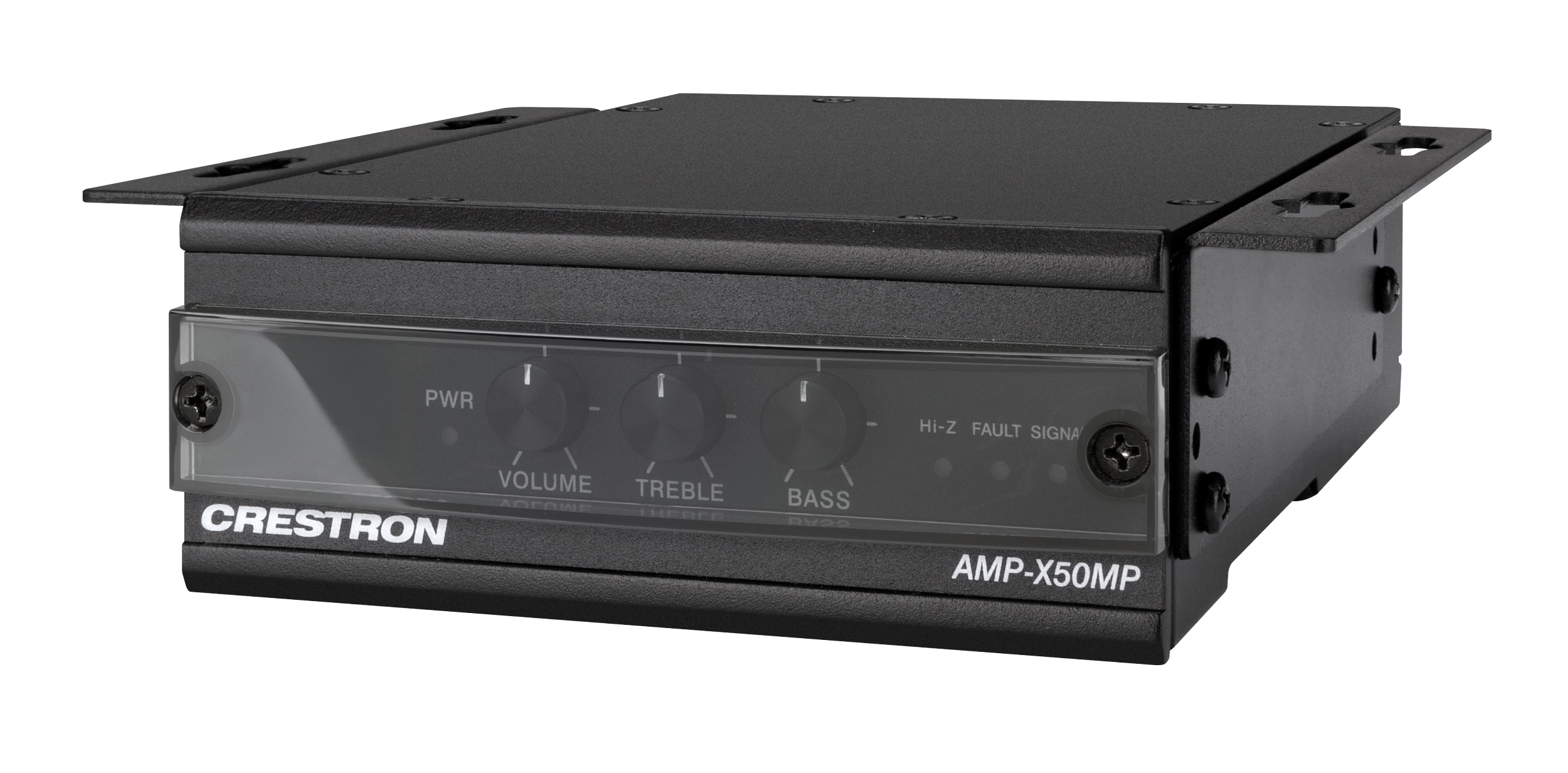

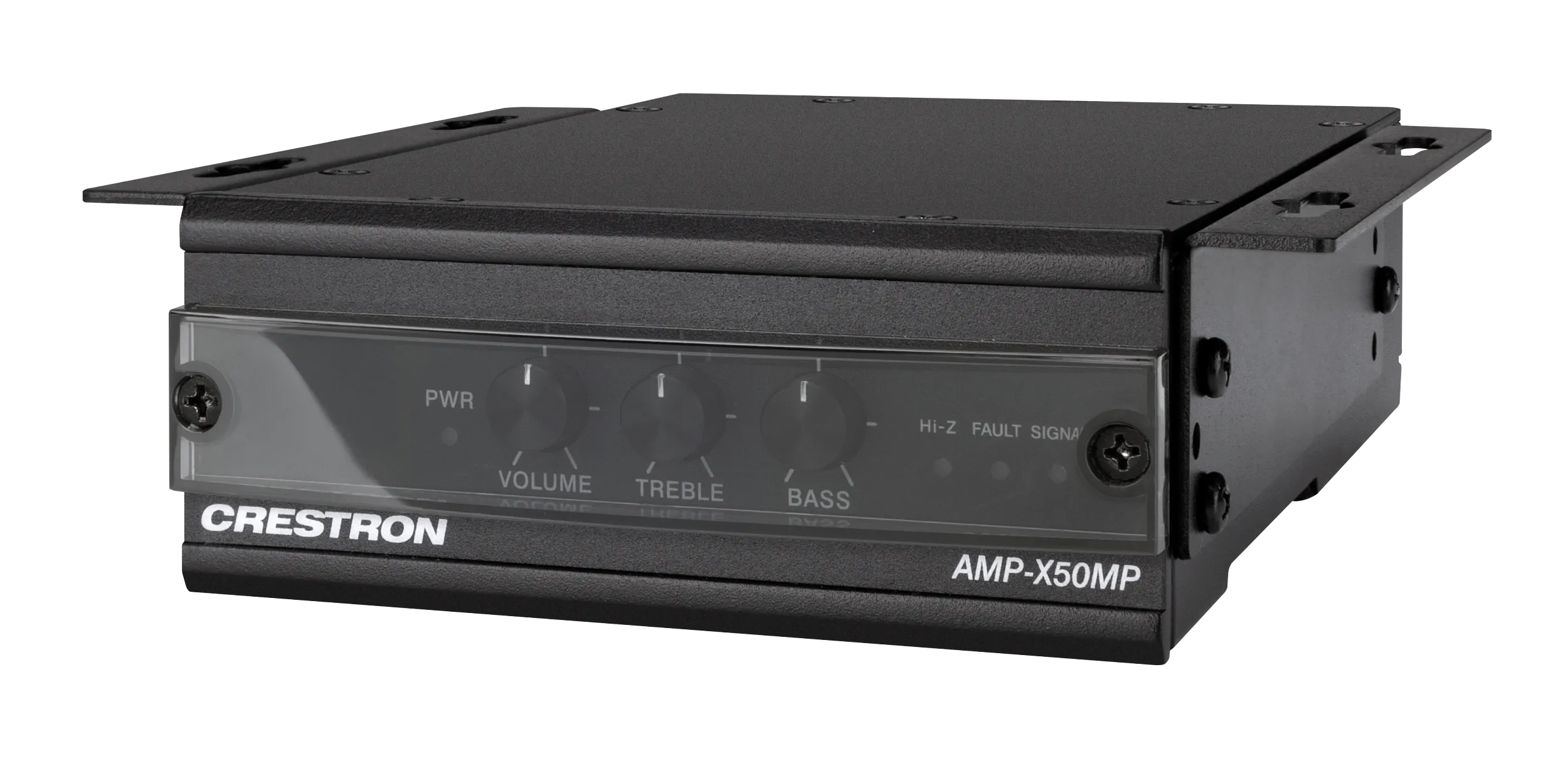

Medya sunum sistemleri için kompakt, verimli bir stereo amplifikatör.
Teknik Özellikler
| Input Signal Types | Balanced or unbalanced analog line-level |
|---|---|
| Frequency Response | LoZ (4-8 Ohms): 20 Hz to 20kHz +/-0.5 dB at 1 W; Hi-Z (70V/100V): 90 Hz to 20kHz +/-3 dB at 1 W; HPF @ 80 Hz (+/-10 Hz), -12 dB/Octave |
| THD+N | < 0.1 % at 1kHz @ -3 dB full rated output power |
| S/N Ratio | > 90 dBA, 20 Hz to 20kHz, balanced, Hi-Z |
| Crosstalk | -75 dB at 1 kHz |
| Input Sensitivity | 1.23Vrms, +4 dBu balanced; 0.316Vrms, -10 dBV unbalanced; For 25 W @ 8 Ohms 50 W @ 70V/100V |
| Gain | 21.5 dB @ 8 Ohms, Balanced |
| Wake Signal Threshold | -57 dBu (1 mV) max |
| Protection | Clip limiter, over current, under voltage, over temperature, DC offset, extreme high frequency |
| Speaker Output | (1) 6-pin, 5.08 mm pitch, 12A plug with screw locking retainers; Power amplifier outputs; Wire Size: Terminals accept up to 12AWG (3.31 mm 2 ) |
| ALS OUT | (1) 3.5 mm connector, female; Unbalanced line level audio outputs; Maximum Output Level: 2.24Vrms, +7 dBV (+9.2 dBu); Fixed audio output for assisted listening devices duplicates the summed audio input |
| AUDIO IN 1-2 (unbalanced) | (1) 3.5 mm connector, female; Unbalanced line level audio inputs; Maximum Input Level: 2.24Vrms, +7 dBV (+9.2 dBu) |
| AUDIO IN 1-2 (balanced) | (1) 5 pin 3.5 mm detachable terminal block; Balanced line level audio inputs; Maximum Input Level: 7.75Vrms, +20 dBu; Input Impedance: 20k Ohms |
| REMOTE | (1) 2 pin 3.5 mm detachable terminal block; Connect to contact closure to place amplifier in standby mode. |
| G | (1) M3 with captivated internal tooth lock washer screw; Chassis ground lug |
| 24V, 2.5A | (1) External 60 W desktop power supply (24VDC/2.5A); Mates with locking barrel connector DC cord; Power supply included. |
| PWR | (1) Bi-color white/red LED; White indicates operating power supplied; Red indicates standby mode. |
| FAULT | (1) Red LED; Indicates an over temperature or over current fault |
| SIGNAL | (1) Bi-color white/red LED; White indicates input signal presence; Red indicates input signal clipping/limiting |
| Hi-Z | (1) White LED; Indicates speaker output is in Hi-Z (70V/100V) mode |
| MONO/STEREO | (1) Slide switch to select STEREO, MONO; STEREO preserves channels; MONO creates a mono downmix of the input signals |
| Hi-Z/LoZ | (1) Slide switch to select LoZ (low impedance 4-8 ohms) or Hi-Z (high impedance 70V/100V) |
| VOLUME, BASS, TREBLE | (3) Rotary knobs adjust volume, bass (+/- 6 dB), and treble (+/- 6 dB) levels |
| Main Power | 24VDC, 2.5A; 100-240VAC, 50/60 Hz, 1.5A power supply included |
| Power Consumption | 14.6 W, 2 channels driven at 1/8th output power (4 ohms); 6 W, idle (Hi-Z mode) |
| Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Chassis | Metal, convection cooled (fanless) |
| Front Panel | Metal, black finish with polycarbonate label overlay |
| Mounting | Freestanding, surface mount, or 1/4 width 1 RU 19 in. rack mountable; Gangable with other Crestron modular and X series products (adhesive feet and surface mounting brackets included); Ganging kit and rack mounting kit optional |
| Knob Cover | Polycarbonate transparent material |
| Height | 1.74 in. (44 mm) without feet; 1.85 in. (47 mm) with surface kit |
| Width | 4.33 in. (110 mm); 5.58 in. (142 mm) with surface kit |
| Depth | 6.99 in. (178 mm) without knob cover; 7.57 in. (192 mm) with knob cover |
Kullanım Alanları
- Kurumsal ve ticari projelerde amplifikatörler çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron AMP-X50MP Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
