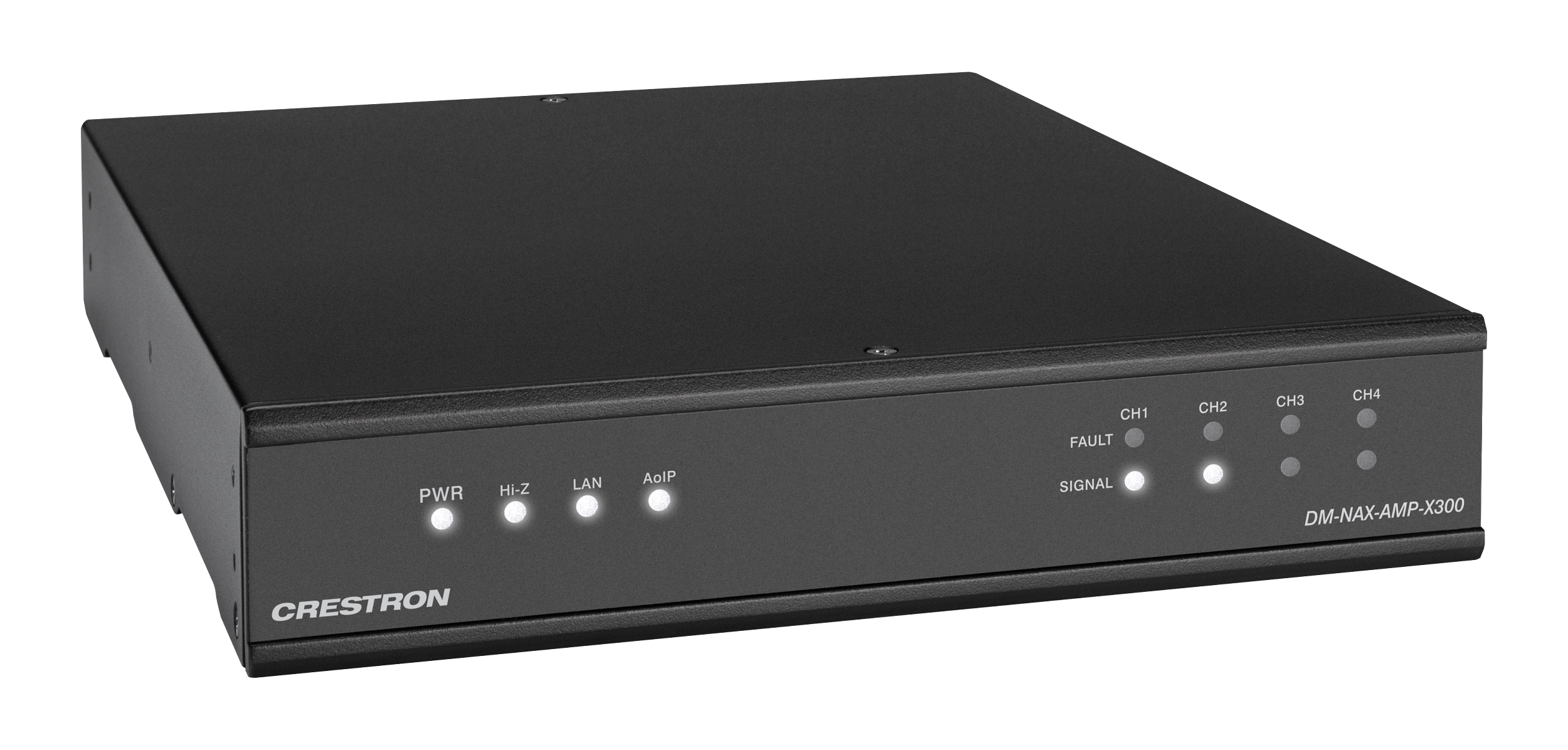

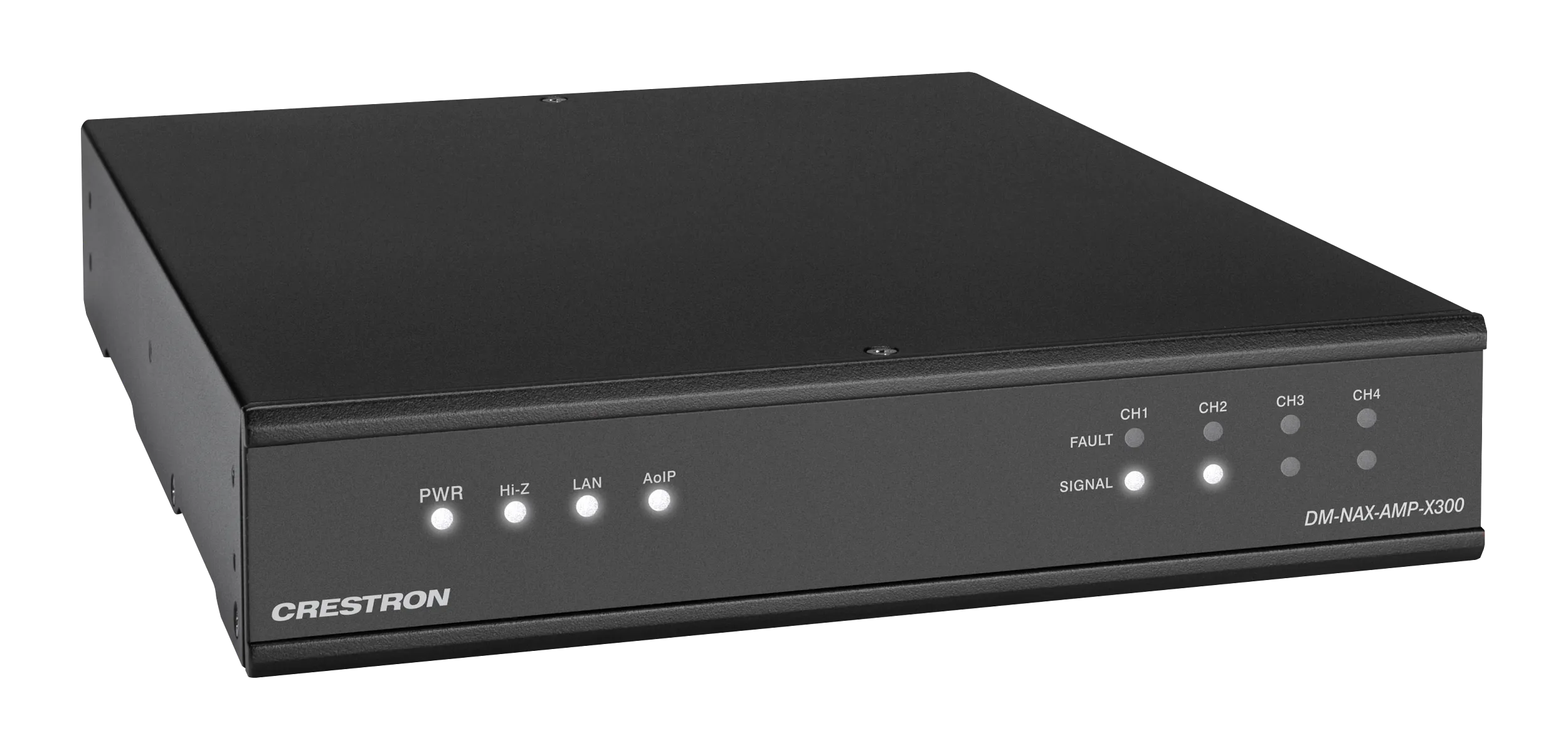

DM‑NAX‑AMP‑X300 yüksek performanslı, yerden tasarruf sağlayan, enerji açısından verimli, profesyonel kalitede IP üzerinden Ses (AoIP) amplifikatörüdür. Tamamı tam DSP özelliklerine sahip DM NAX®, Dante®, AES67 ve yerel girişleri destekleyen bu çok kanallı amplifikatör, hem konut hem de ticari yapılandırmalar için uygundur.
Teknik Özellikler
| Input Signal Types | Balanced/unbalanced analog line/mic-level and AoIP streams. |
|---|---|
| Balanced Analog Input | Maximum signal level: +21 dBu (8.7 Vrms) Impedance: >10k Ohms ƒ Response: 20 Hz to 20 kHz±0.5 dB THD+N: <0.005% @ 1 KHz S/N Ratio: 105 dB A-weight Channel Separation: 100 dB @ 1 KHz |
| Mic Input | Maximum gain: 60 dB Impedance: >10k Ohms ƒ Response: 20 Hz to 20 kHz±0.5 dB THD+N: <0.005% @ 1 KHz @ 60 dB gain S/N Ratio: 71 dB @ 60 dB gain A-weight Channel Separation: 69 dB @ 60 dB gain @ 1 KHz |
| Balanced Analog Output | Maximum signal level: +21 dBu (8.7 Vrms) Impedance: 200 Ohms ƒ Response: 20 Hz to 20 kHz ±0.5 dB THD+N: 0.005% @ 1 kHz at max output S/N Ratio: 113 dB digital in, 105 dB analog in, 20 Hz -20 kHz, A-weight Channel Separation: 100 dB @ 1 KHz |
| Speaker Output | ƒ Response: 20 Hz to 20 kHz ±0.5 dB at 1 W High-Pass Filter (70V and 100V operation only): -3 dB @ 80 Hz, -12 dB/octave THD+N: <0.1% at 1 kHz @ -3 dB full rated output power S/N Ratio: >103 dB, 20 Hz to 20 kHz, balanced Crosstalk: -75 dB at 1 kHz Gain: 29 dB @ 8 Ω Protection: Over current, under voltage, over temperature, DC offset, extreme high frequency Go to Sleep Time: 25 minutes with no signal present (when set to POWER SAVER) Wake Time: 0.5 s typical |
| CH1-CH4 | (2) 4-pin 5.08 mm pitch, 12A plug with screw locking retainers; Power amplifier output; Terminals accept up to 12 AWG (3.31 mm) NOTE: Output is direct-coupled, not transformer isolated. |
| IN1-IN4 | (4) 3-pin 3.5 mm detachable terminal block; Balanced/unbalanced line or mic-level audio inputs; Maximum Input Level: 8.7 Vrms, +21 dBu; Input Impedance: 10k Ω Wake threshold is -65 dBu; Phantom power is available when used as mic-level inputs |
| OUT1-OUT4 | (4) 3-pin 3.5 mm detachable terminal block; Balanced/unbalanced line-level audio outputs; Maximum Output Level: 8.7 Vrms, +21 dBu |
| REMOTE | (1) 2-pin 3.5 mm detachable terminal block; Connect to dry contact closure to place amplifier in standby mode |
| G | (1) 6-32 screw; Chassis ground lug |
| 100-240V~ 1.2-0.6A 50/60 Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
| Ethernet 1 | (1) 8-wire RJ45 female; 100Base-T/1000Base‑TX Ethernet port |
| Ethernet 2 | (1) 8-wire RJ45 female; 100Base-T/1000Base‑TX Ethernet port |
| PWR | (1) LED; White indicates amplifier is on and ready for use; Amber indicates the amplifier is booting; Red indicates amplifier is in standby |
| HI-Z | (1) White LED; Indicates when Hi-Z mode is enabled (70V or 100V) |
| LAN | (1) White LED; Indicates that the device has a valid IP address |
| AoIP | (1) White LED; Indicates an active AoIP stream |
| FAULT | (4) Red LEDs (one per speaker output); Indicates that the input channel has a fault or is clipping |
| SIGNAL | (4) White LEDs (one per speaker output); Indicates an active input signal |
| LOCKOUT | (1) Red LED; Indicates that rear panel slide switches are being overridden by programmatic or web UI control |
| Lo-Z MODES | (2) Slide switches, one switch controlling channels 1 and 2, and one switch controlling channels 3 and 4; Selects stereo, summed, or bridged operation: STEREO: The input signal received on each channel is sent to its respective output for use in applications where left and right channel separation is required. SUM: The input signals sent to a channel pair (1 + 2 or 3 + 4) are summed and sent to their respective individual outputs. BRIDGE: The input signals sent to a channel pair (1 + 2 or 3 + 4) are summed and sent to a bridged output (1 + 2 or 3 + 4) for use in high power applications. |
| Operations Mode | (1) Slide switch; Sets the amplifier for Lo-Z (4 or 8 Ω) or Hi-Z operation (70V or 100V) |
| Power Mode | (1) Slide switch; Selects Power Saver or Always On operation |
| SETUP | (1) Red LED and push button; Utilized in some restore procedures |
| Main Power | 1.2-0.6A @ 100-240VAC, 50/60 Hz |
| Power Consumption | 75 W (All channels driven at 1/8th power, 8 ohms) |
| Temperature | 41 to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 130 BTU/hr |
| Height | 1.74 in. (44 mm) |
| Width | 9.38 in. (238 mm) |
| Depth | 11.03 in. (280 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde amplifikatörler çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NAX-AMP-X300 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
