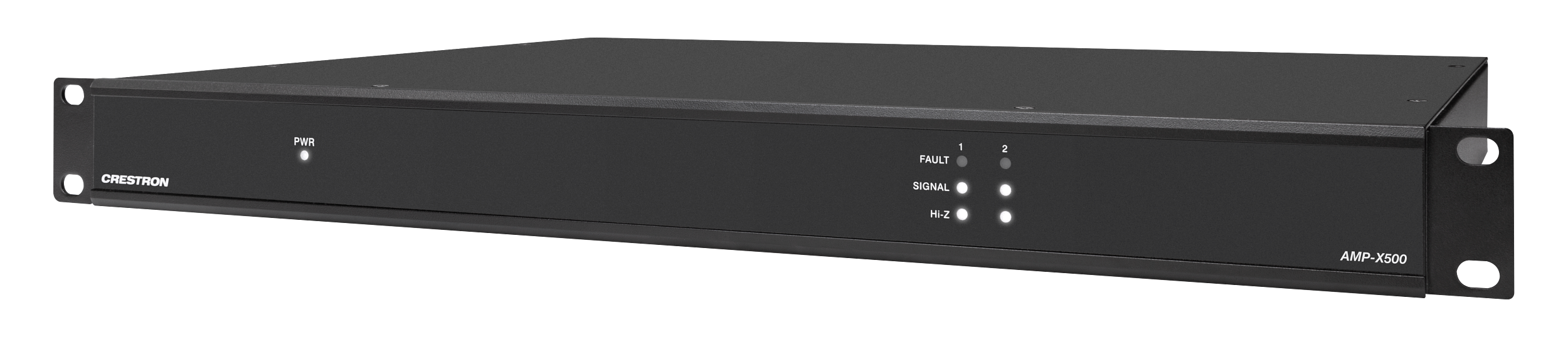

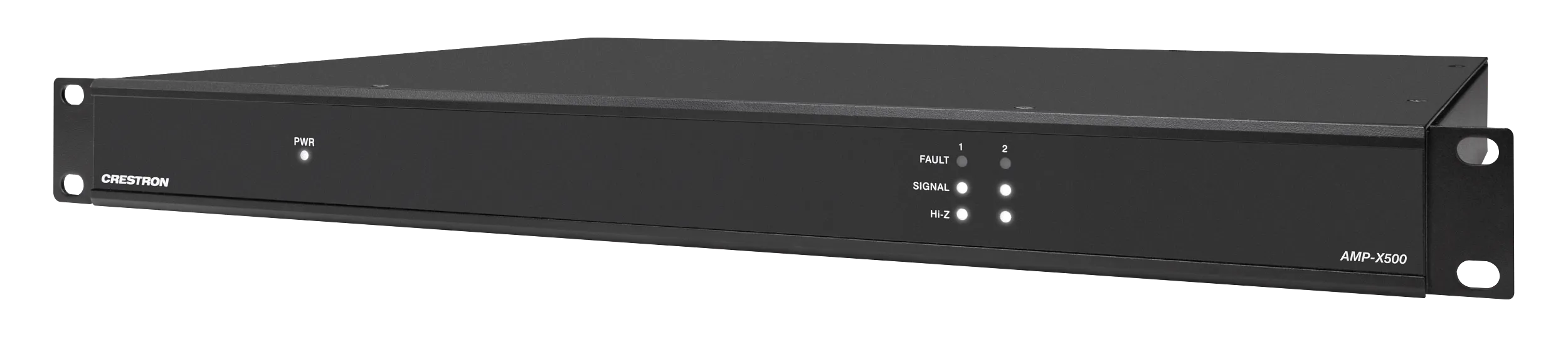

AMP-X500 yüksek performanslı, kompakt, enerji tasarruflu, profesyonel kalitede bir amplifikatördür. Lo-Z ve Hi-Z çalışmasını destekleyen bu çok kanallı amplifikatör, hem konut hem de ticari konfigürasyonlara uygundur.
Teknik Özellikler
| Input Signal Types | Balanced or unbalanced analog line-level |
|---|---|
| Output Power Per Channel (RMS, continuous up to 10 seconds) | 250 W (4 or 8 Ω), 500 W (8 Ω only), 500 W (70V/100V) NOTE: Total simultaneous output power across all channels will not exceed 500 W |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB at 1 W |
| High-Pass Filter (70V and 100V operation only) | -3 dB @ 80 Hz, -12 dB/octave |
| THD+N | <0.1% at 1 kHz @ -3 dB full rated output power |
| S/N Ratio | >103 dBA, 20 Hz to 20 kHz, balanced |
| Crosstalk | -75 dB at 1 kHz |
| Input Sensitivity | 1.23 Vrms, +4 dBu balanced; 0.316 Vrms, -10 dBV unbalanced |
| Gain | 29 dB @ 8 Ohms |
| Protection | Overcurrent, under voltage, over temperature, DC offset, extreme high frequency |
| Go to Sleep Time | 25 minutes with no signal present (when set to POWER SAVER) |
| Wake Time | 0.5 s typical |
| Wake Threshold | 0.44 mV typical |
| CH1-CH2 (OUTPUT) | (2) 2‑pin 5.08 mm pitch, 12A plug with screw locking retainers; Power amplifier output; Wire Size: Terminals accept up to 12 AWG (3.31 mm) NOTE: Output is direct‑coupled, not transformer isolated. |
| AUDIO IN (UNBALANCED) | (2) RCA connectors, female; Maximum Input Level: 2.24 Vrms, +7 dBV (+9.2 dBu) |
| AUDIO IN (BALANCED) | (2) 3-pin 3.5 mm detachable terminal block; Balanced line‑level audio inputs; Maximum Input Level: 7.75 Vrms, +20 dBu; Input Impedance: 20 kΩ |
| BUS INPUT | (2) paired RCA connectors, female; Unbalanced line-level audio inputs |
| BUS OUTPUT | (2) paired RCA connectors, female; Unbalanced line-level audio outputs, buffered |
| REMOTE | (1) 2-pin 3.5 mm detachable terminal block; Connect to dry contact closure to place amplifier in standby mode |
| Chassis Ground | (1) 6‑32 screw; Chassis ground lug |
| 100‑240V~ 1.2-0.6A 50/60 Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
| PWR | (1) White/Red LED; White indicates amplifier is on and ready for use; Red indicates amplifier is in standby |
| HI-Z | (2) White LEDs (one per output); Indicates when Hi-Z mode is enabled (70V or 100V); |
| SIGNAL | (2) White LEDs (one per output); Indicates when an audio signal is present |
| FAULT | (2) Red LEDs (one per output); Indicates that the output channel is faulted or clipping |
| GAIN 1-2 | (2) Screwdriver‑adjustable rotary controls, one per output channel; Adjusts the attenuation level for the corresponding output channel |
| INPUT SEL 1-2 | (2) Rotary controls, one per output channel; Selects input source from RCA, Balanced, BUS left/right, or BUS mono. |
| OUTPUT 1-2 | (2) Rotary controls, one per output channel; Selects 4-8 Ω 250 W, 8 Ω 500W, 70V, or 100V operation. |
| Power Mode | (1) Slide switch; Selects Power Saver or Always On operation |
| Main Power | 1.2-0.6A @ 100‑240VAC, 50/60 Hz |
| Power Consumption | 115 W, (2 channels driven at 1/8th output power, 4 Ω); 8.8 W, idle; 0.31 W, power saver (115VAC/60 Hz) |
| Temperature | 41 to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 149 BTU/hr @ 4 Ω, all channels driven at 1/8th output power; 21 BTU/hr all channels idle; 1 BTU/hr in standby |
| Chassis | Metal, convection cooled (fanless) |
| Front Panel | Metal, black finish with polycarbonate label overlay |
| Mounting | Freestanding or 1 RU 19 in. rack mountable; Stackable with other Crestron AMP series products (adhesive feet and rack mounting hardware all included) |
| Height | 1.75 in (44 mm) without feet; 1.89 in (48 mm) with feet |
| Width | 19.00 in (483 mm) |
| Depth | 14.57 in (370 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde amplifikatörler çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron AMP-X500 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
