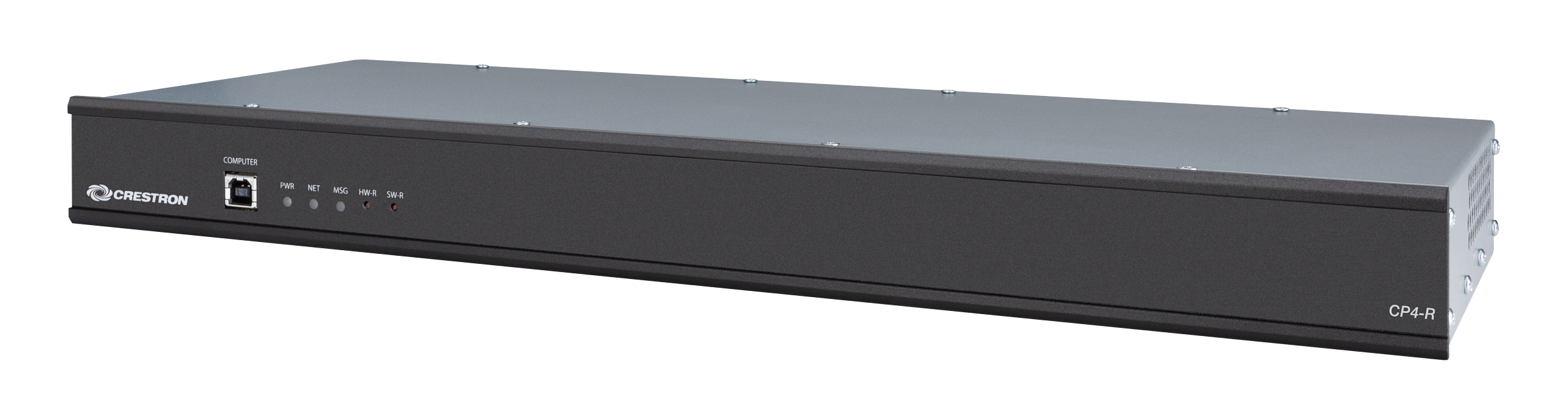

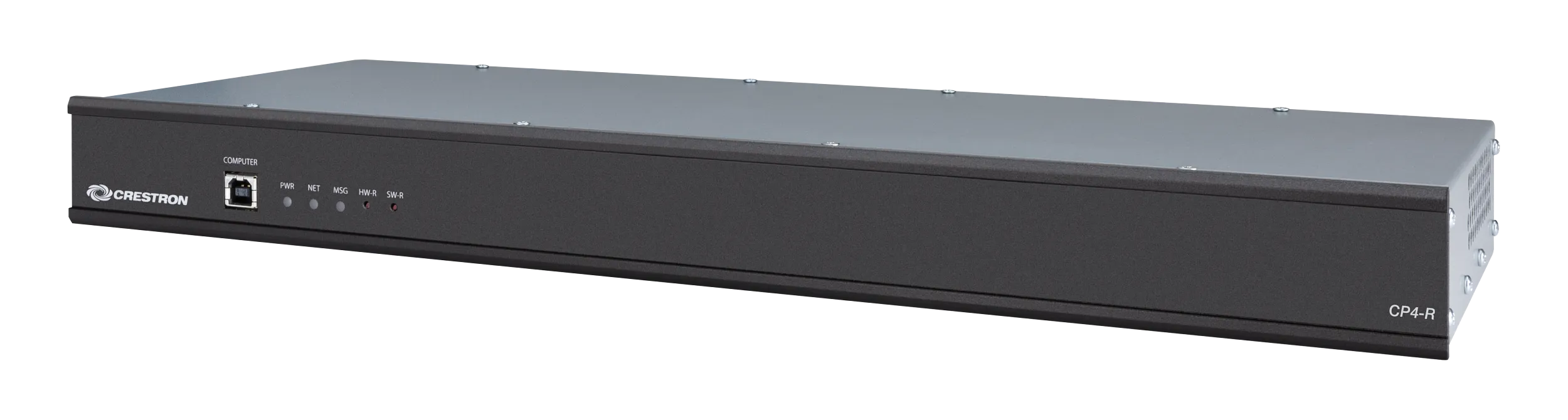

Crestron Home® İşletim Sistemi ile kullanım için güvenli, yüksek performanslı, rafa monte edilebilir bir kontrol işlemcisi ve arayüz sağlar. Daha büyük ev otomasyonu, ev sineması, çok odalı video ve MDU (çoklu konaklama birimi) uygulamalarını yönetmek için yerleşik kontrol bağlantı noktalarının tamamını içerir. 4 Series™ çok çekirdekli CPU işlemci olağanüstü hız ve performans sunar.
Teknik Özellikler
| Ethernet | 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, industry‑standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140‑2 compliant encryption, IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® software authentication, HTTPS web server, SMTP email client |
|---|---|
| Cresnet® Network | Cresnet server mode 3 |
| USB | (1) USB Type-A connector, female; USB 2.0 port for storage devices |
| RS‑232/422/485 | For 2‑way device control and monitoring, all ports support RS‑232 up to 115.2k baud with software handshaking, one port also supports RS‑422 or RS‑485 and hardware handshaking |
| IR | Supports 1‑way device control via infrared up to 1.2 MHz |
| BACnet™ network/IP | Supports up to 2000 BACnet objects 1 |
| SDRAM | 4 GB |
| Flash | 8 GB |
| Memory Card | Supports SD and SDHC cards up to 32 GB (4 GB included) |
| External Storage | Supports USB mass storage devices up to 1 TB |
| RELAY OUTPUT 1–8 | (2) 8‑pin 3.5 mm detachable terminal blocks; Comprises (8) normally open, isolated relays; Rated 1A, 30VAC/VDC; MOV arc suppression across contacts |
| I/O 1–8 | (1) 9‑pin 3.5 mm detachable terminal block; Comprises (8) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24VDC, input impedance 20k Ω, logic threshold >3.125V low/0 and <1.875V high/1; Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10VDC, protected to 24VDC maximum, input impedance 21k Ω with pull‑up resistor disabled; Programmable 5V, 2k Ω pull‑up resistor per pin |
| IR‑Serial Output 1–8 | (2) 8‑pin 3.5 mm detachable terminal blocks; Comprises (8) IR output ports; IR output up to 1.2 MHz; 4 IRP2 IR emitters included, additional emitters sold separately |
| COM 1 | (1) 5‑pin 3.5 mm detachable terminal block; Bidirectional RS‑232/422/485 port; Up to 115.2k baud; hardware and software handshaking support |
| COM 2–3 | (2) 3‑pin 3.5 mm detachable terminal blocks; Bidirectional RS‑232 ports; Up to 115.2k baud; software handshaking support |
| MEMORY | (1) SD memory card slot; Accepts one SD or SDHC card up to 32 GB for storage of log files; 4 GB SDHC card included |
| LAN | (1) 8‑pin RJ-45 connector, female; 100BASE‑TX/1000BASE-T Ethernet port |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| 24VDC 2.0A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2420RU power pack included; Passes through to the NET port to power Cresnet devices; See Power section below for additional specifications |
| G | (1) 6‑32 screw; Chassis ground lug |
| COMPUTER (front) | (1) USB Type-B connector, female; USB 2.0 computer console port (6 ft / 1.8 m cable included); For setup only |
| PWR | (1) Green LED, indicates operating power is supplied from the power pack or Cresnet power supply |
| MSG | (1) Red LED, indicates control processor has generated an error message |
| HW-R | (1) Recessed push button for hardware reset |
| SW-R | (1) Recessed push button for software reset |
| LAN (rear) | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power Source Options | Power pack or Cresnet (connect only one) |
| Power Pack (included) | Input: 100–240VAC, 50/60 Hz; Output: 2.5A @ 24VDC; |
| Cresnet Power Usage | 15 W (0.625A @ 24VDC) when powered by a Cresnet power supply only |
| Available Cresnet Power | 24 W (1A @ 24VDC) when powered by the included power pack only |
| Power Consumption | 15 W (not including any connected Cresnet devices) |
| Temperature | 41 to 113°F (5 to 45°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 50 BTU/hr |
| Chassis | Steel |
| Front Panel | Extruded metal, black finish, polycarbonate label overlay |
| Mounting | Freestanding or 1U 19 in. rack‑mountable (adhesive feet and rack ears included) |
| Height | 1.70 in. (44 mm) without feet |
| Width | 17.28 in. (439 mm), 19.00 in. (483 mm) with rack ears |
| Depth | 6.56 in. (167 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde residential çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron CP4-R Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
