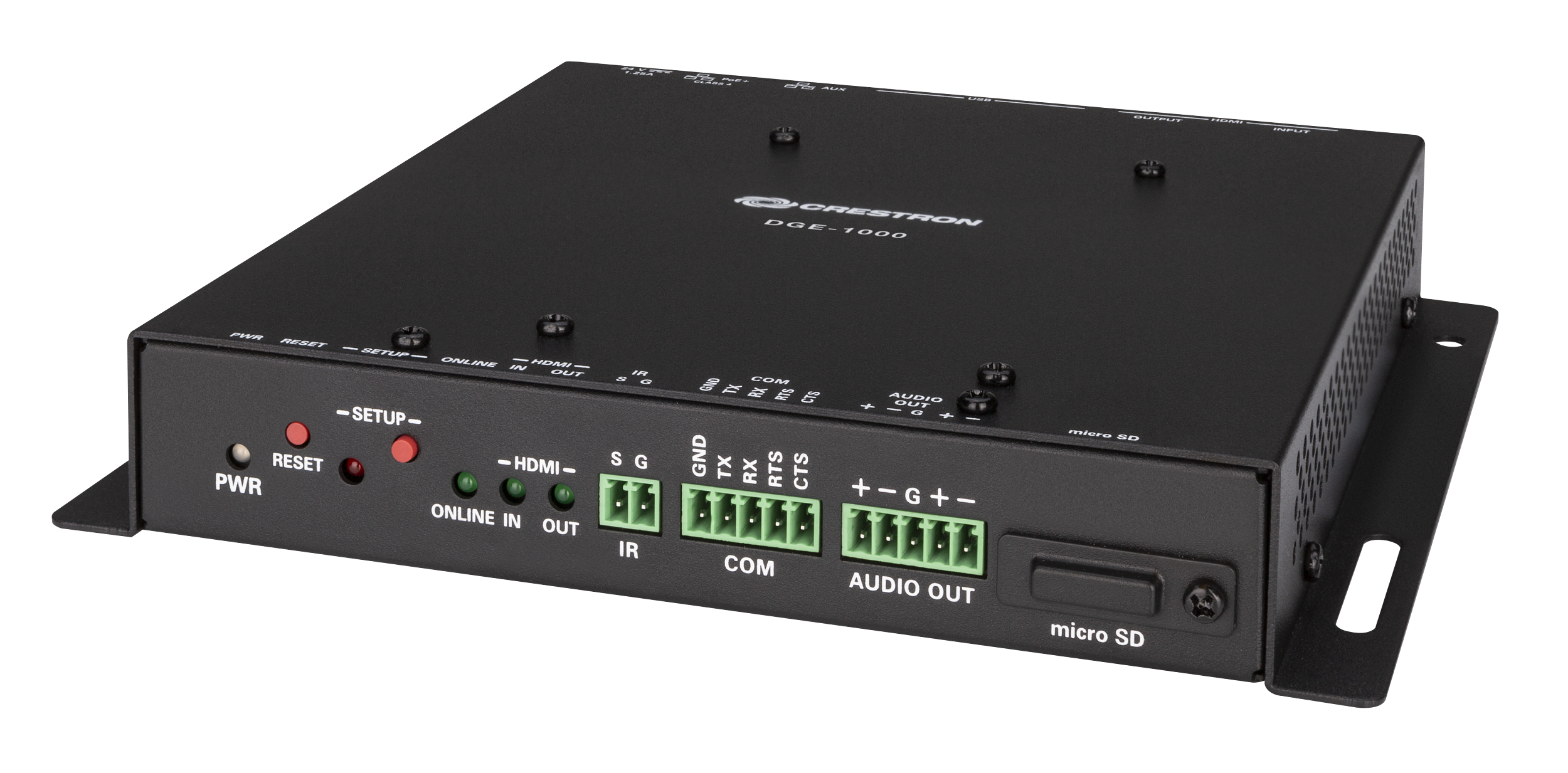

Crestron® DGE-1000 dijital grafik motoru, HD dokunmatik ekranı gelişmiş bir Crestron denetleyiciye dönüştürür. DGE-1000, ses, video, aydınlatma, gölgeler, HVAC, güvenlik ve diğer olanakları kontrol etmek için özel bir grafik ortamı oluşturmak için kullanılabilecek Crestron HTML5 teknolojisine sahiptir.
Teknik Özellikler
| On-screen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
|---|---|
| Web Browser | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brasil), Romanian, Russian, Slovak, Spanish,Swedish, Thai |
| Ethernet | 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS 5 , SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3at compliant |
| USB Host | USB 2.0 and 3.0, Supports TSD-2220 touch screen display and most third-party USB HID compliant peripherals |
| USB Device | For computer console (installer setup and firmware updates) |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system) |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0–5V) up to 19200 baud (via control system) |
| HDMI (Input) | HDCP 1.4, EDID; Supports management of HDCP and EDID |
| HDMI (Output) | HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID |
| Video Formats | H.264 and H.265 (MPEG-4 part 10 AVC, MJPEG) |
| Audio Formats | AAC stereo |
| Bitrates | Up to 20 Mbps |
| Resolutions | Up to 1080p30 |
| Input Signal Types | HDMI (DVI and dual-mode DisplayPort™ signal compatible 4 ) |
| Output Signal Types | HDMI |
| Maximum Input Resolutions | HDMI Input: 1920×1080@60Hz (HD 1080p60); |
| HDMI Output Resolutions | 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×800@60Hz 5 , 1366×768@60Hz 5 , 1440×900@60Hz 5 , 1600×900@60Hz 6 , 1600×1200@60Hz, 1680×1050@60Hz 5 , 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 3840×2160@30Hz(2160p30) 3840×2160@50Hz(2160p50) 3840×2160@60Hx(2160p) |
| Input Signal Types | HDMI (dual-mode DisplayPort compatible 4 ) |
| Input/Output Format | 2 channel LPCM |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port for display device control; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5V) up to 19200 baud |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port for display device control; Up to 115.2k baud, hardware and software handshaking support |
| AUDIO OUT | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 ohms balanced, 100 ohms unbalanced |
| HDMI Input | (1) HDMI Type A connector; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible) |
| HDMI Output | (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible2) |
| USB | (2) USB Type A connectors; USB 2.0 host port for USB conferencing peripheral; USB 3.0 host port for USB conferencing peripheral; (1) USB Type B connector; USB 3.0 device port for computer console |
| LAN PoE+ | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| 24 V 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2412WU power pack sold separately |
| PWR | (1) Green LED, indicates operating power supplied via the local power pack or PoE+ |
| RESET | (1) Recessed push button for hardware reset |
| SETUP | (1) Red LED and (1) recessed push button for onscreen IP address display |
| ONLINE | (1) Green LED, indicates control system connection |
| HDMI IN/OUT | (2) Green LEDs, indicate HDMI signal presence at the HDMI input/output |
| Power over Ethernet | IEEE 802.3at Class 4 Powered Device |
| Power Pack (Sold Separately) | Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW-2412WU |
| Power Consumption | 14 W (typical) |
| Temperature | 32° to 104°F (-0° to 40° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Heat Dissipation | 47.8 BTU/hr |
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Height | 1.26 in. (33 mm) |
| Width | 7.40 in. (188 mm) |
| Depth | 6.54 in. (166 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde graphics engine çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
