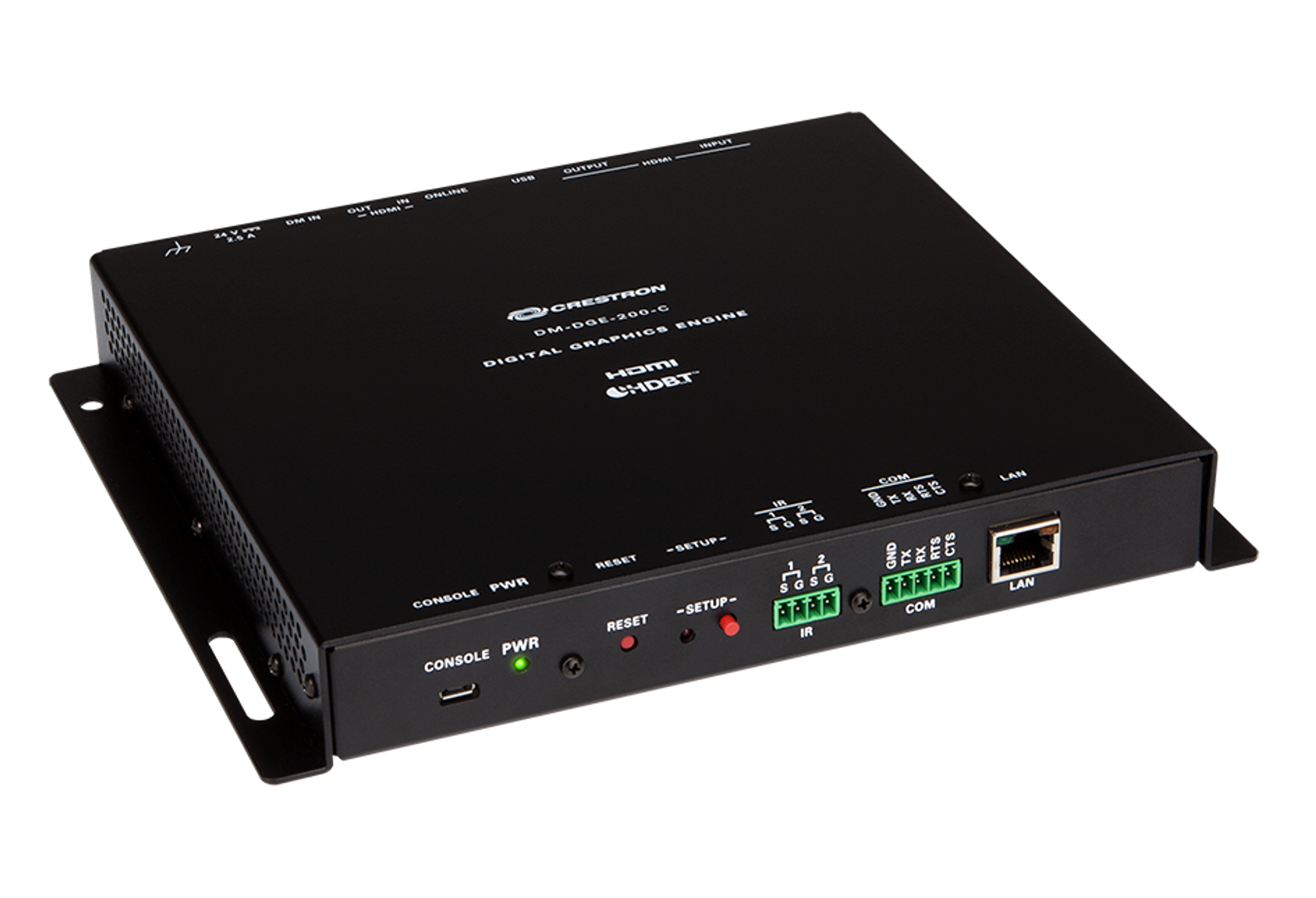

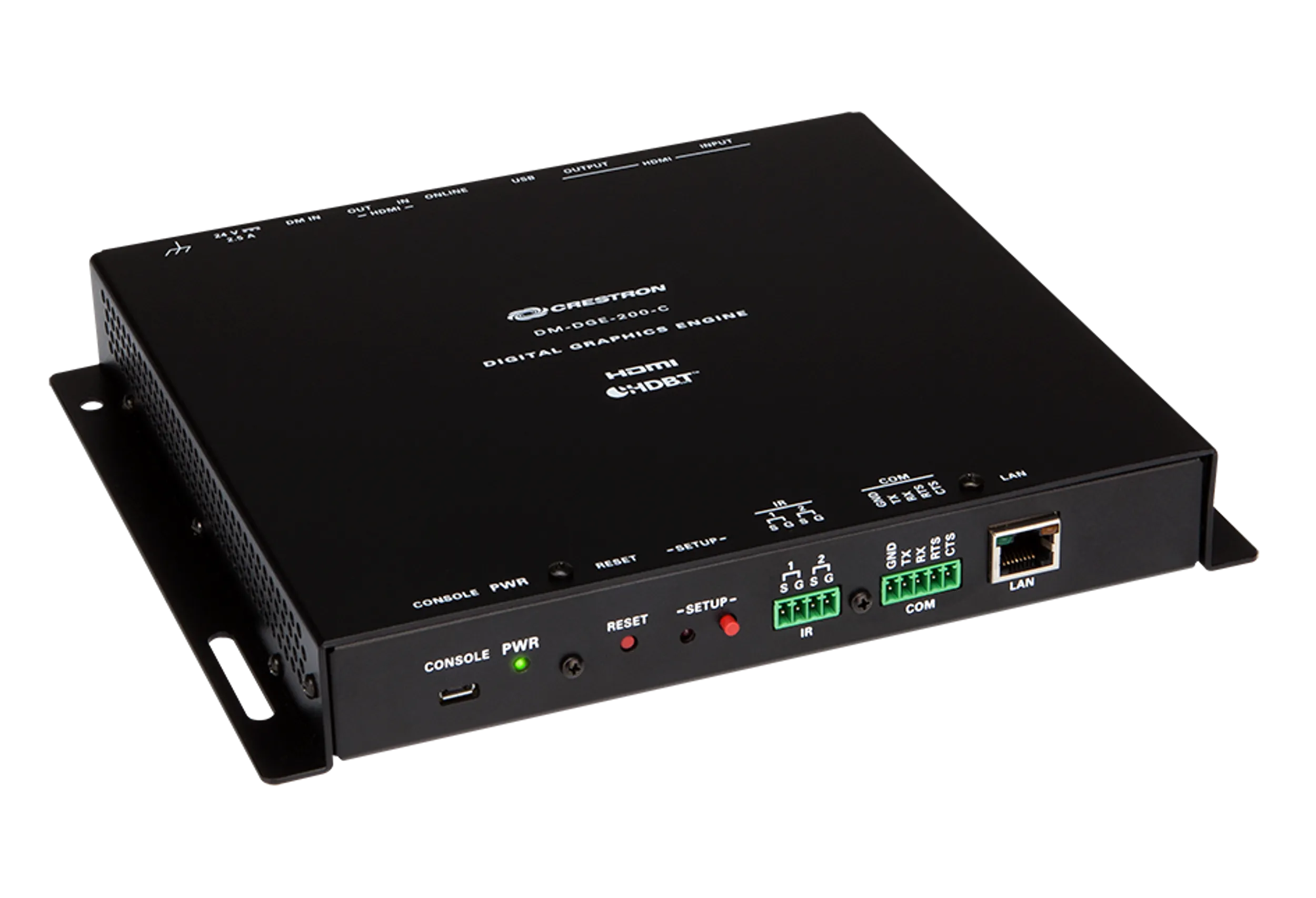

Crestron® TSD 2220 veya üçüncü taraf dokunmatik ekran için yüksek performanslı bir grafik motoru sağlar. HDMI®, DM® ve akış kaynaklarından çift pencereli HD video ile gelişmiş Smart Graphics® teknolojisini destekler. Kompakt, yüzeye monte edilebilir form faktörü çok sayıda kurulum seçeneğine olanak tanır.
Teknik Özellikler
| Smart Graphics Technology | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), English (US), Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Romanian, Russian, Slovak, Spanish, Swedish, Thai |
|---|---|
| On-screen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Web Browser | Arabic, Bulgarian, Catalan, Chinese, Croatian, Czech, Danish, Dutch, English, Filipino, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian Bokmal, Pashto, Persian, Polish, Portuguese, Romanian, Romansh, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese |
| RAM | 2 GB DDR3-SDRAM |
| Flash | 4 GB |
| Maximum Project Size | 1 GB |
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SNMP, IPv4 or IPv6, Active Directory® authentication, HTTPS web browser setup, XiO Cloud® client, Crestron control system integration 5 |
| USB Host | Supports TSD‑2220 touch screen display and most third-party USB HID compliant peripherals |
| USB Device | For computer console (installer setup and firmware update) |
| RS-232 | 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking 1 |
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0–5V) up to 19200 baud 1 |
| DigitalMedia™ Technology | DM 8G+, HDCP 2.2, EDID, Ethernet, PoDM (Power over DM®) sourcing |
| HDMI, Input | HDCP 1.4, EDID, CEC 2 |
| HDMI, Output | HDCP 2.2, EDID, CEC 2 |
| Video Formats | H.264 (MPEG-4 part 10 AVC), MJPEG |
| Audio Formats | AAC stereo |
| Bitrates | Up to 25 Mbps 4 |
| Resolutions | Up to 1080p60 |
| Input Signal Types | DM 8G+, HDMI (dual-mode DisplayPort compatible 11 ) 9 |
| Output Signal Types | HDMI |
| Output Resolutions | 1920×1080@60Hz (1080p60), 3840×2160@30Hz (4K UHD) |
| DM Input Formats | Up to 8 channel LPCM |
| HDMI Input Formats | 2 channel LPCM |
| HDMI Output Formats | Up to 8 channel LPCM |
| Audio Feedback Formats | MP3 |
| CONSOLE (USB) | (1) USB Micro A connector, female; USB computer console port; Type A to Micro A USB cable included |
| IR 1–2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR/serial ports 1 ; IR output to 1.1 MHz; 1-way serial TTL/RS-232 (0–5V) up to 19200 baud |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port 1 ; Up to 115.2k baud, hardware and software handshaking support |
| LAN | (1) Green LED and (1) amber LED; Green LED indicates the Ethernet link status; Amber LED indicates Ethernet activity |
| HDMI INPUT | (1) HDMI Type A connector, female; HDMI digital video/audio input 9 ; DVI and dual-mode DisplayPort signal compatible 11 |
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output 9 ; DVI compatible 11 |
| USB | (1) USB Type A connector, female; USB 2.0 host port for connecting a USB HID compliant touch screen, mouse, or keyboard |
| DM IN | (1) Green LED and (1) amber LED; Green LED indicates the DM link status; Amber LED indicates video and HDCP signal presence |
| 24VDC 2.0A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included |
| G | (1) 6-32 screw; Chassis ground lug |
| PWR | (1) Green LED, indicates operating power is present via the local power pack; Flashes while the device is booting |
| RESET | (1) Recessed pushbutton for hardware reset |
| SETUP | (1) Red LED and (1) recessed push button for Ethernet setup |
| ONLINE | (1) Green LED, indicates a connection is established to a control system via Ethernet |
| HDMI IN/OUT | (2) Green LEDs, indicate the presence of an HDMI signal at the HDMI input or output, respectively |
| Power Pack (included) | Input: 1.5A (maximum) @ 100–240VAC, 50/60 Hz; Output: 2A @ 24VDC; Model: PW-2420RU |
| Power Consumption | 24 W (typical, without a PoDM PD connected) |
| PoDM (Power over DM) Sourcing | IEEE 802.3at Type 1 compliant PoDM PSE (Power Sourcing Equipment), supplies up to 15.4 W (Class 0–3) to power one PoDM PD (Powered Device) |
| Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 81.9 BTU/hr |
| Chassis | Metal, black finish, (2) integral mounting flanges, vented sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Height | 7.93 in. (203 mm) |
| Width | 9.29 in. (236 mm) |
| Depth | 1.36 in. (35 mm) |
| Resolution | Cable Type |
Kullanım Alanları
- Kurumsal ve ticari projelerde graphics engine çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-DGE-200-C Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
