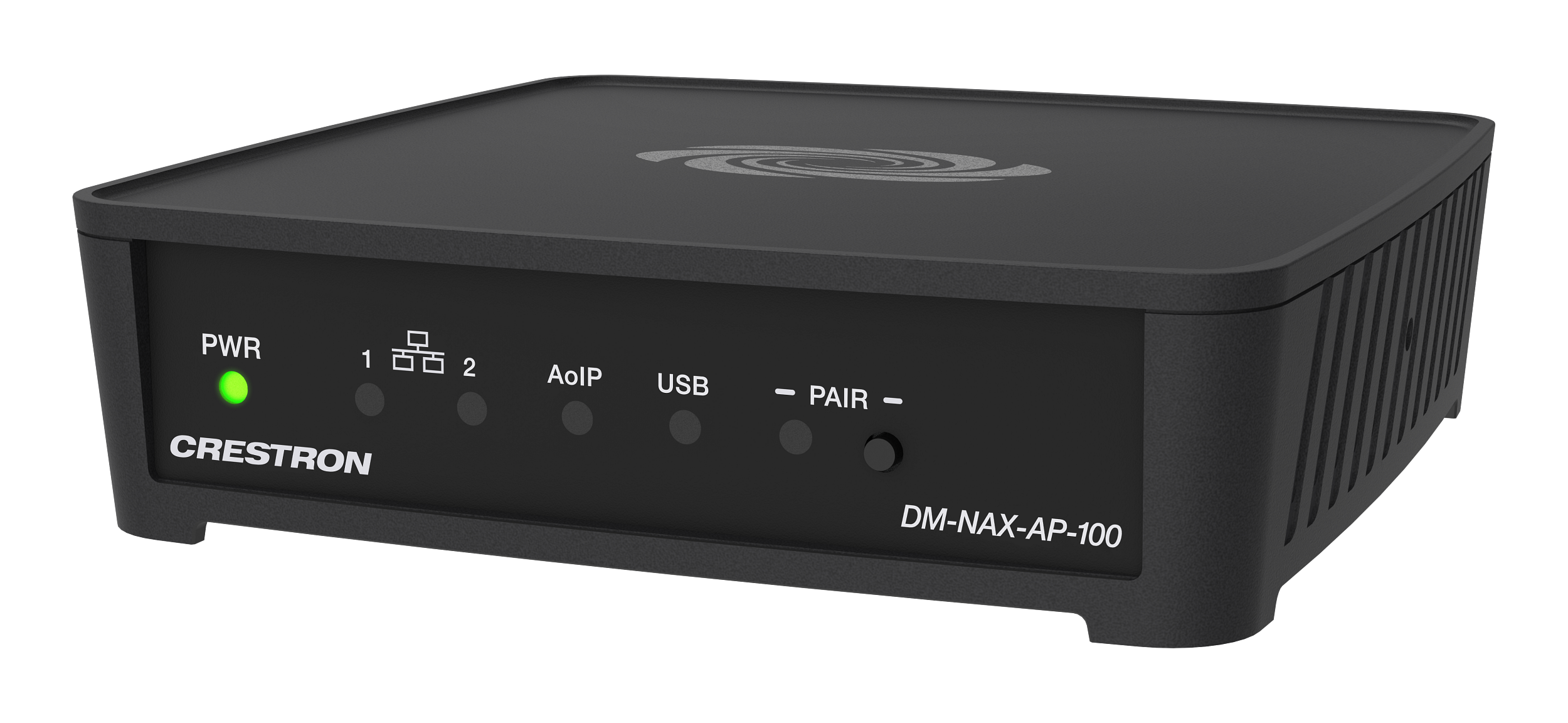

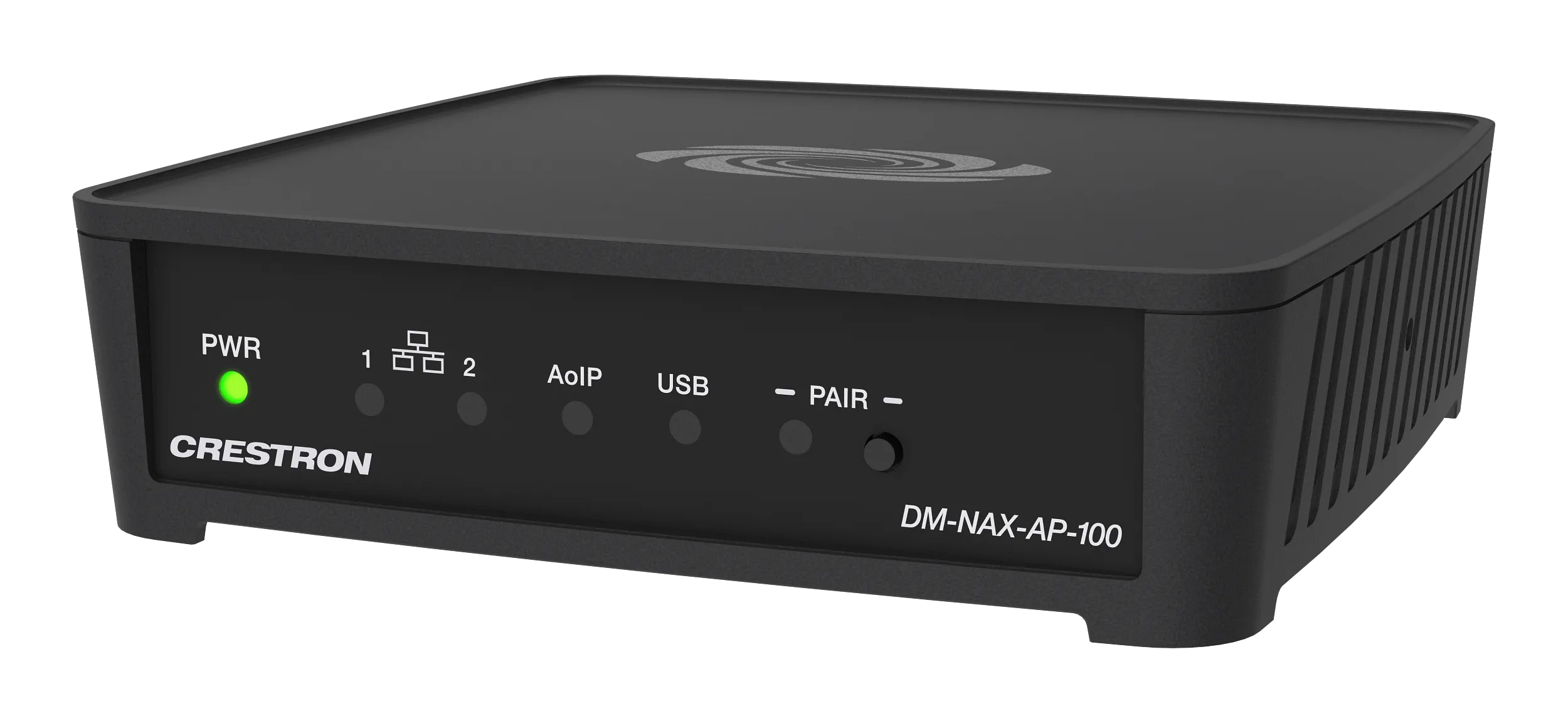

DM-NAX-AP-100, DM NAX Akıllı Sesli konferans çözümleri için merkez görevi gören bir ses işlemcisidir. Uyumlu mikrofonlar ve hoparlörlerle eşleştirildiğinde Microsoft Teams® sertifikalı yankı önleyici hoparlör olarak çalışır.
Teknik Özellikler
| Ethernet | For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
|---|---|
| USB | (1) LED; Solid green indicates that a connection to a USB host is established; Blinks teal in sequence with the other front panel LEDs to indicate that firmware is upgrading; Blinks blue in sequence with the other front panel LEDs to indicate that a connected speaker's firmware is upgrading |
| DSP | Acoustic echo cancellation, automatic gain control, and dynamic noise suppression |
| Input Signal Types | USB stereo; DM NAX/AES67 audio-over-IP |
| Output Signal Types | USB stereo; DM NAX/AES67 audio-over-IP |
| 24VDC 0.75A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2407WU power pack (sold separately) |
| LAN 1 (PoE) | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; Dedicated for control traffic and Power over Ethernet only; PoE PD (powered device) port; IEEE 802.3af Type 1 PoE Class 0 (12.95 W) compliant; Compatible with PoE compliant Ethernet switch or third-party PoE PSE; Dedicated for Audio-over-IP traffic only |
| LAN 2 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
| G | (1) 6-32 screw; Chassis ground lug |
| PWR | (1) Green LED; Indicates that the device is connected to power and fully booted |
| LAN 1-2 | (2) LEDs; Solid green indicates that the indicated network port has established a network link and is ready for pairing; Blinks teal in sequence with the other front panel LEDs to indicate that firmware is upgrading; Blinks blue in sequence with the other front panel LEDs to indicate that a connected speaker's firmware is upgrading |
| AoIP | (1) LED; Solid green indicates that audio-over-IP traffic is passing in or out of the device; Solid yellow indicates that one or more paired devices are offline; Solid red indicates that all paired devices are offline; Blinks teal in sequence with the other front panel LEDs to indicate that firmware is upgrading; Blinks blue in sequence with the other front panel LEDs to indicate that a connected speaker's firmware is upgrading |
| PAIR | (1) LED; Blinks blue to indicate that pairing is in process; Blinks teal in sequence with the other front panel LEDs to indicate that firmware is upgrading; Blinks blue in sequence with the other front panel LEDs to indicate that a connected speaker's firmware is upgrading |
| SETUP | (1) Push button: Pressing and holding the SETUP button for 15 seconds with power supplied clears network settings and restores the default DHCP mode; To perform a factory restore, press and hold the SETUP button with power disconnected, then connect the power supply and continue to hold the SETUP button for 30 seconds; (1) LED, illuminates red when the button is pressed, flashes red when reset has been initiated |
| PoE | IEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE |
| Power Supply (optional) | Input: 100-240VAC, 50/60 Hz; Output: 0.75A @ 24VDC; Model: PW‑2407WU (sold separately) |
| Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Enclosure | Lightly textured black finish, plastic housing |
| Mounting | Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic) |
| Height | 1.35 in. (34 mm); 1.77 in. (45 mm) with mounting bracket |
| Width | 5.04 in. (128 mm); 5.36 in. (137 mm) with mounting bracket |
| Depth | 5.04 in. (128 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde dm nax intelligent audio çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NAX-AP-100 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
