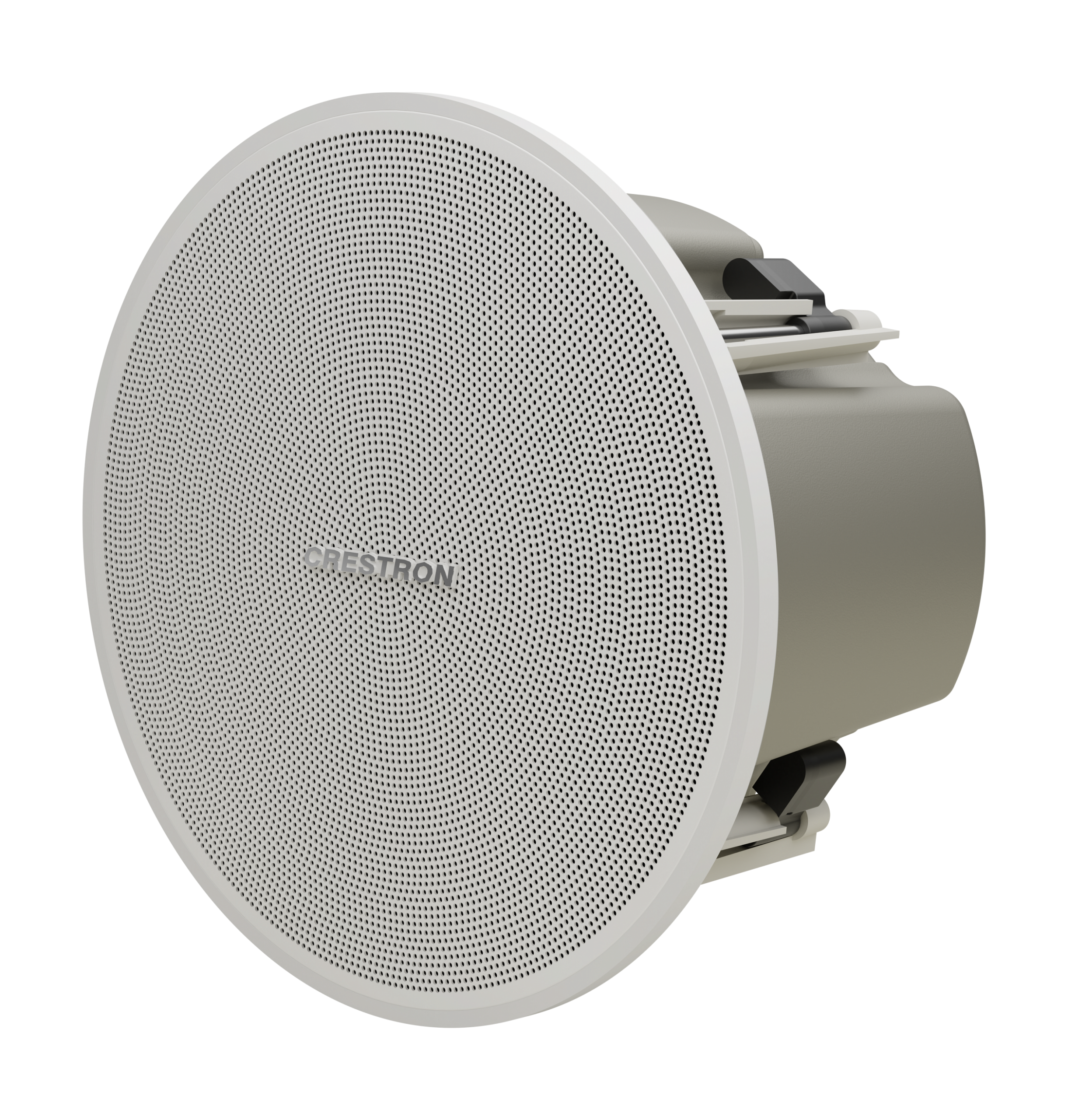

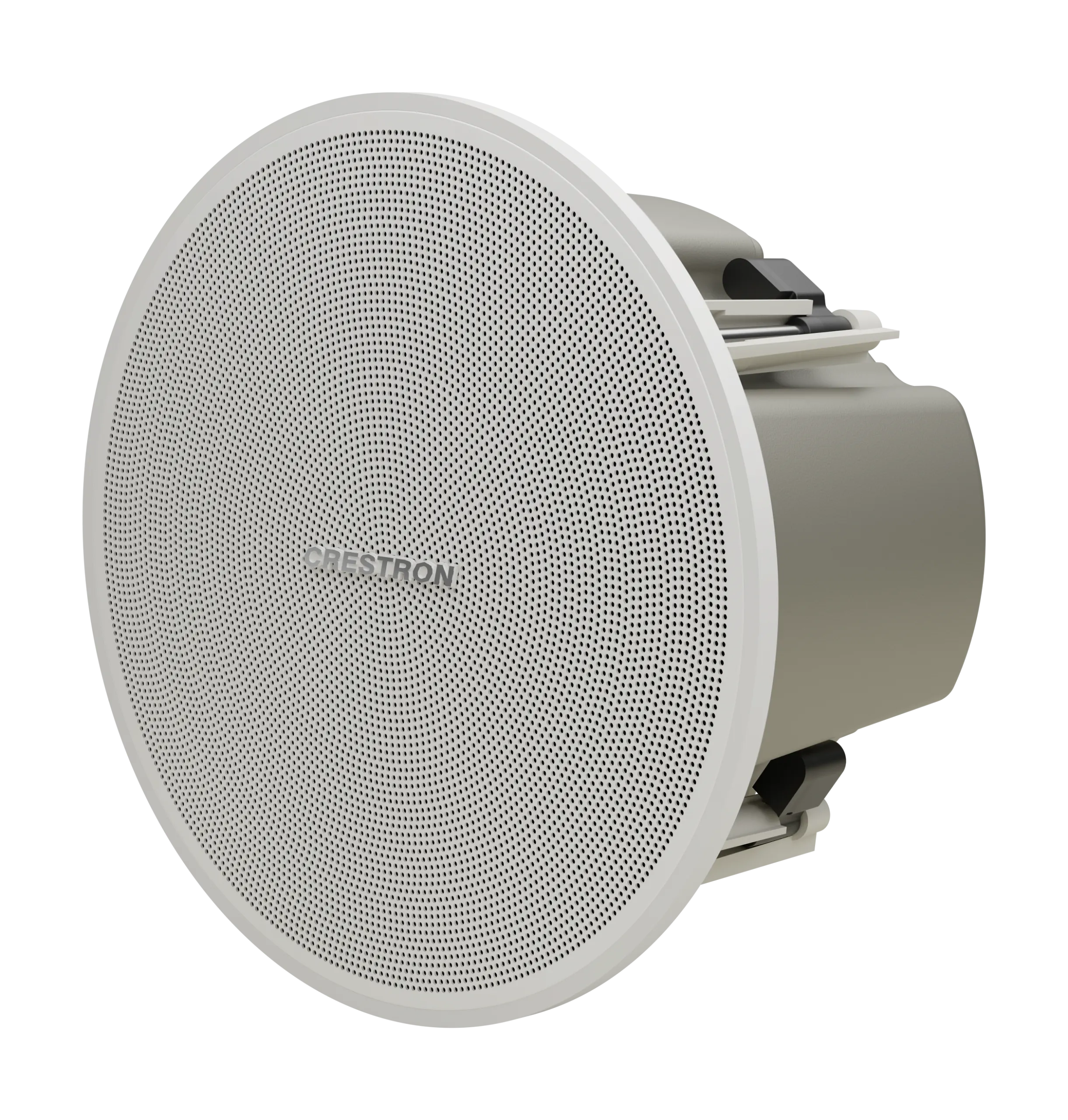

Kurulumunuzu Crestron hoparlörlerle tamamlayın. SAROS DM-NAX-IC4A-W, geniş kapsama açıları ve basit kurulum sunan, Dengeli Mod Radyatör (BMR) dönüştürücüye sahip tavan içi, PoE+, IP üzerinden Ses hoparlörüdür.
Teknik Özellikler
| Transducer | 2.83 in. (72 mm) Balanced Mode Radiator (BMR) |
|---|---|
| Frequency Response | 80 Hz to 24 kHz (±3 dB) |
| Sensitivity | 86 dB @ -18 dBFS/1 m |
| Maximum SPL | 96 dB |
| Coverage | 170° conical (speech, up to 4 kHz); 140° conical (music, up to 8 kHz) |
| BMR Power Handling | 25 W |
| BMR Power Output | Up to 21 W |
| EQ Filter Types | EQ, High Pass, Low Pass, Treble Shelf, Bass Shelf, Notch |
| EQ Center Frequency | 10 to 20,000 Hz per band |
| EQ Gain | +20/-40 dB per band |
| EQ Bandwidth | 0.1 to 4.0 octaves per band |
| SPEAKER-LEVEL OUTPUTS 1-3 | (3) 8-pin RJ-45 connector, female; Speaker-level audio output; For use with SAROS IC4P‑W only; For plenum rated patch cable, use CBL‑ZUMLINK‑P‑25 (sold separately) or third-party Cat5 cable 32 ft. (10 m) or shorter 1 |
| Network/PoE+ | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; PoE+ PD (powered device) port; IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant; Receives up to two stereo DM NAX AoIP streams or two stereo AES67 streams |
| Ethernet | (2) Bi-color green/amber LEDs; Left LED indicates Ethernet link status; RIght LED indicates Ethernet activity |
| Power | (1) Bi-color white/red LED behavior determined via web UI configuration; White indicates that the device is powered on with audio passing or that signal is present; Red indicates that the device is in standby mode, that a fault is present, or that SETUP is pressed; Off indicates no power from the power supply or that the LED has been disabled from the web UI |
| SETUP | (1) Recessed push button; Pressing and holding the SETUP button for 15 seconds with power supplied clears network settings and restores the default DHCP mode; Pressing and holding the SETUP button with power disconnected, then connecting the power supply and continuing to hold SETUP for 30 seconds will perform a factory restore |
| PoE+ | IEEE 802.3at Type 2 Class 4 (25.5 W) compliant |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Enclosure | Painted steel, plenum-rated; 0.75 in. (19 mm) conduit knockout on top and sides; (1) cable clamp included |
| Baffle | ABS UL® 94V‑0 plastic |
| Grille | Steel with white textured finish; Magnetically held; Safety tether included |
| Mounting | Flush ceiling mount using 4 integral 2-step toggle clamps; 2.36 in. (60 mm) maximum clamping thickness; 6.5 in. (165 mm) recommended cutout diameter; Tile bridge included |
| Baffle Diameter | 7.49 in. (191 mm) not including mounting clamps |
| Back Can Diameter | 6.33 in. (161 mm) not including mounting clamps |
| Depth | 4.28 in. (109 mm) mounting depth; 4.50 in. (115 mm) including grille |
Kullanım Alanları
- Kurumsal ve ticari projelerde dm nax intelligent audio çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron SAROS-DM-NAX-IC4A-W Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
