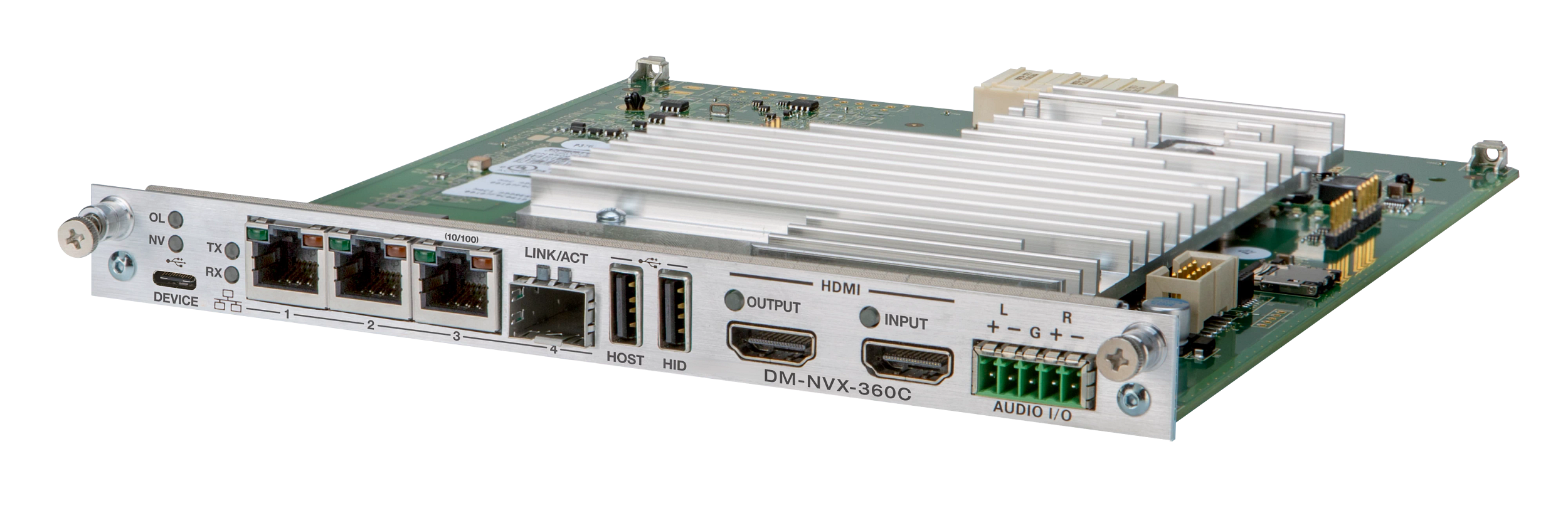

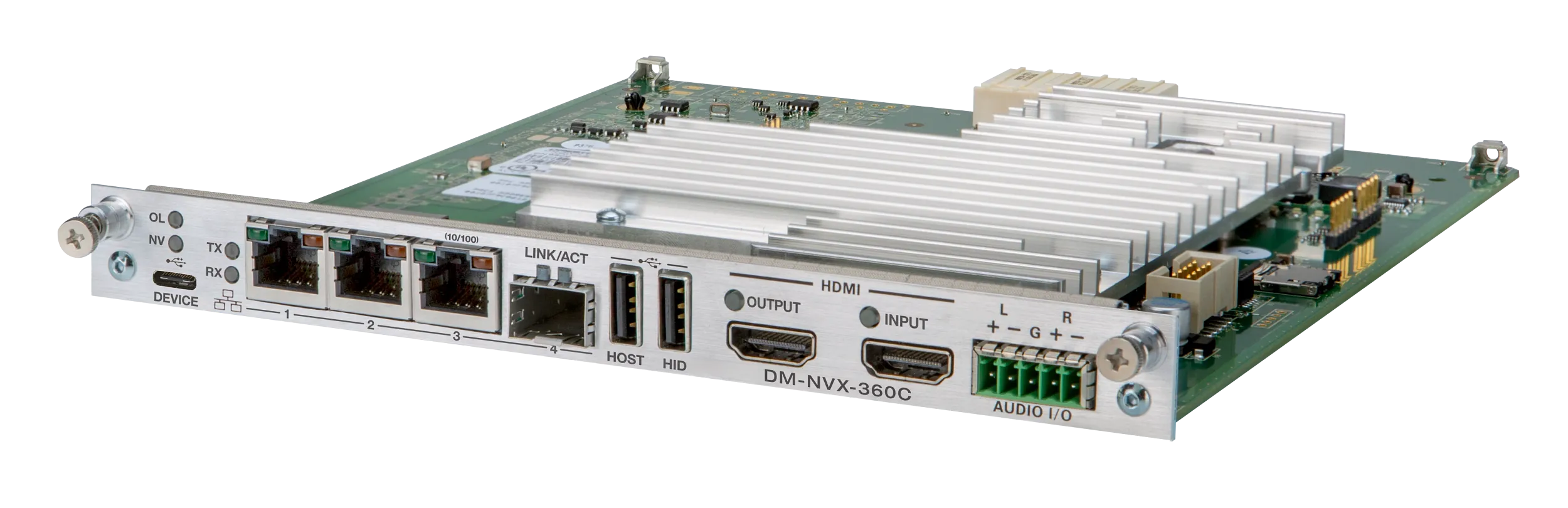

4K60 4:4:4 videoyu standart Gigabit Ethernet üzerinden algılanabilir bir gecikme veya kalite kaybı olmadan aktaran güvenilir, yüksek performanslı IP üzerinden AV kodlayıcı veya kod çözücü. Rafa monte edilebilir bir kart çerçevesini kaplar. Dahili ölçeklendirme ve video duvarı işleme, uyarlanabilir bit hızı, AES67 iletim ve alma özelliği, USB ve KVM yönlendirme ve fiber bağlantı özellikleriyle HDR (Yüksek Dinamik Aralık) ve HDCP 2.3'ü destekler. Kurumsal ve kampüs çapındaki içerik dağıtım uygulamaları için güvenli, ölçeklenebilir bir 4K sinyal yönlendirme çözümü sağlar.
Teknik Özellikler
| Stream Type | Encoder: Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series 10 Decoder: Pixel Perfect Processing or DM-NVX-E10/E20 Series 10 |
|---|---|
| Video Resolutions | Up to 4096×2160@60Hz (DCI 4K60); 4:4:4 color sampling; HDR10, HDR10+, Dolby Vision, and Deep Color support |
| Audio Formats | Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), 2-channel LPCM 11 |
| Bit Rates | Encoder: Fixed (200 to 950 Mbps – user specified), 5 Adaptive (dependent on input resolution of the stream), or Variable (less than 150 Mbps to maximum of 750 Mbps, dependent on content and input resolution of the stream) Decoder: Based on the stream received from the encoder |
| Streaming Protocols | RTP, SDP |
| Container | MPEG-2 transport stream (.ts) |
| Session Initiation | Multicast via secure RTSP |
| Copy Protection | HDCP 2.3 |
| Output Signal Types | HDMI, analog stereo 6 |
| Switcher | 2×1 in decoder mode (HDMI, Stream), manual or auto-switching, breakaway audio 7 , Crestron QuickSwitch HD™ technology |
| Scaler (Decoder Mode Only) | 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, HDR10, HDR10+, and Dolby Vision support, widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1), video wall processing up to 8 wide x 8 high |
| Resolutions | Common resolutions are listed in the following table. |
| Input Signal Types | HDMI (Dual-Mode DisplayPort interface compatible 13 ), analog stereo 6 |
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels |
| Analog Formats | Stereo 2-channel |
| Analog-To-Digital Conversion | 24-bit 48 kHz |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| AES67 | 24-bit 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >90 dB |
| Analog Output Volume Adjustment | −80 to +20 dB |
| Ethernet | Auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, IPv4 only or both IPv4 and IPv6, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron 3-Series or later control system integration |
| USB | USB 2.0 host or device signal extension and routing, Layer 2 or Layer 3 |
| HDMI | HDCP 2.3, EDID, CEC |
| DM NVX (via Ethernet) | HDCP 2.3, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction) |
| USB DEVICE | (1) USB 2.0 Type-C™ connector, female; USB 2.0 device port; USB signal extender port for connection to a computer or other USB 2.0 host 8,9 |
| USB HOST | (1) USB Type-A connector, female; USB 2.0 host port; USB signal extender port for connection to a mouse, keyboard, or other USB 2.0 device; 8 Available Power: 500 mA at 5 VDC |
| USB HID | 1) USB Type-A connector, female; USB 2.0 host port; USB signal extender port for connection to a mouse, keyboard, or other USB 2.0 device; Available Power: 500 mA at 5 VDC |
| Ethernet 1 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port 2 |
| Ethernet 2 | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port 2 |
| Ethernet 3 (10/100) | (1) 8-pin RJ-45 connector, female; 100BASE-TX Ethernet port |
| Ethernet 4 | (1) SFP port; Accepts one Crestron SFP-1G Series transceiver module 3 |
| HDMI OUTPUT | (1) Green LED, indicates video signal transmission at the HDMI output |
| HDMI INPUT | (1) Green LED, indicates sync detection at the HDMI input |
| AUDIO I/O | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio input or output ;6 Input Impedance: 24k Ohms balanced/unbalanced; Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
| OL | (1) Green LED, indicates an online connection to a control system via Ethernet |
| NV | (1) Green LED, indicates unit is encoding (transmitting) or decoding (receiving) network video |
| TX | (1) Green LED, indicates unit is in encoder (transmitter) mode |
| RX | (1) Green LED, indicates unit is in decoder (receiver) mode |
| Ethernet 1-2 | (2) LEDs per port, green indicates Ethernet link status, amber indicates Ethernet activity |
| Ethernet 3 | (2) LEDs, amber indicates Ethernet link status, green indicates Ethernet activity |
| Ethernet 4 LNK | (1) Green LED, indicates Ethernet link status |
| Ethernet 4 ACT | (1) Green LED, indicates Ethernet activity |
Kullanım Alanları
- Kurumsal ve ticari projelerde video endpoint çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron DM-NVX-360C Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
