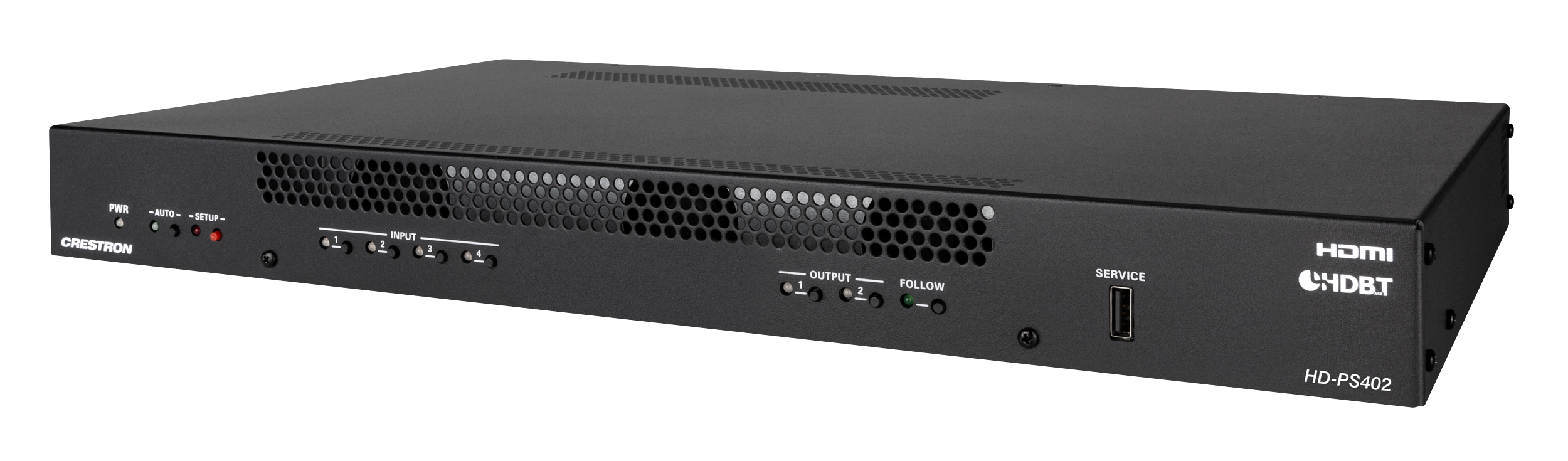

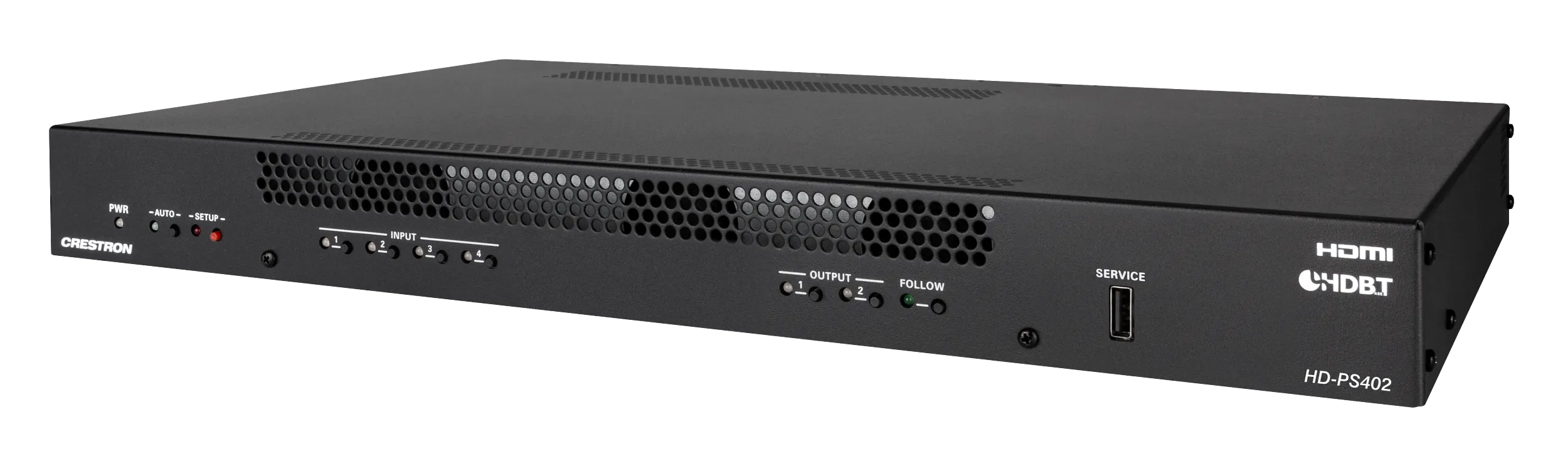

Matris değiştirme ve kullanıma hazır işlevselliğe sahip, yüksek performanslı, rafa monte edilebilir 4K60 4:4:4 sunum sistemi. Dört HDMI® girişi ve 4K60 ölçekleyicili iki çift yansıtılmış HDMI ve DM® Essentials çıkışı ve analog ses girişleri ve çıkışları sağlar. HDR (Yüksek Dinamik Aralık) ve Dolby Vision® video formatları, ses karıştırma, gelişmiş EDID yönetimi, XiO Cloud® bağlantısı ve kurumsal düzeyde güvenlik desteğini içerir.
Teknik Özellikler
| Switcher | 4×2 auto-switching or manual, audio‑follows‑video, Crestron Auto-Locking® and QuickSwitch HD™ technologies |
|---|---|
| Scaler (mirrored HDMI and DM Essentials outputs) | 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion; Deep Color support; HDR10, HDR10+, and Dolby Vision support; content‑adaptive noise reduction; and 3:2/2:2 pull‑down detection and recovery |
| Input Signal Types | Mono analog, balanced or unbalanced line-level audio |
| Output Signal Types | HDMI, DM Essentials, and HDBaseT with HDR10, HDR10+, and Dolby Vision pass-through support, Deep Color support, and 4K60 4:4:4 support (DVI compatible 4 ) |
| Copy Protection | HDCP 2.3 |
| Maximum Resolutions | Common resolutions are listed in the following table. |
| Audio Inputs | (2) mono, balanced analog MIC/LINE inputs; (2) mono, balanced analog LINE inputs; (1) stereo, digital LPCM audio extracted from the selected HDMI input source |
| Audio Outputs | (1) mirrored HDMI 1 and DM 1 audio output; (1) mirrored HDMI 2 and DM 2 audio output; (2) stereo, balanced analog AUX outputs |
| Analog-to-Digital Conversion | 24-bit, 48 kHz |
| Digital-to-Analog Conversion | 24-bit, 48 kHz |
| Formats | Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS HD High Res, DTSHD Master Audio, DTS:X, LPCM up to 8 channels |
| Gain Range | -10 dB to +10 dB in 1 dB increments |
| Phantom Power | +48VDC, 12mA, enabled or disabled per channel |
| Mute | Enabled or disabled per channel |
| Balanced Line Input Level | 4Vrms |
| Unbalanced Line Input Level | 2Vrms |
| Line Input Impedance | >10 kΩ |
| Output Signal Type | Stereo analog, balanced or unbalanced, line-level audio |
| Source Gain | -80 dB to +20 dB adjustment range, plus mute |
| Volume Control | -80 dB to +20 dB adjustment range, plus mute, mono sum, or stereo output |
| Delay | 0 to 150 ms adjustment range |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB |
| THD+N | <0.005%, 1 kHz, 4Vrms |
| S/N Ratio | >95 dB, 4Vrms, 20 Hz to 20 kHz, A-weighted |
| Crosstalk | >90 dB, 1 kHz |
| Stereo Separation | >80 dB, 20 Hz to 20 kHz |
| Ethernet | (2) LEDs on RJ-45 LAN connector; Link status LED: Green indicates that a 100BASE-TX link is established, amber indicates that a 1000BASE-T link is established; Ethernet activity LED: Flashing amber indicates Ethernet activity |
| USB | For firmware loading and configuration management and to power a USB-powered device |
| HDMI | HDCP 2.3, EDID, CEC |
| HDBaseT | HDCP 2.3 |
| MIC/LINE CH 1-2 | (2) 3-pin 3.5 mm detachable terminal blocks; Balanced mono microphone-level or line-level analog audio inputs |
| LINE INPUT CH 3-4 | (2) 3-pin 3.5 mm detachable terminal blocks; Balanced mono line-level analog audio inputs |
| AUX OUT 1-2 | (2) 5-pin 3.5 mm detachable terminal blocks; Balanced stereo line-level audio outputs; Output Impedance: <200 Ω; Maximum Output Level: 4Vrms balanced |
| HDMI INPUTS 1-4 | (4) HDMI Type A connectors, female; HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface compatible 3 ) |
| DM 1 | (1) 8-pin RJ-45 blue connector, female, shielded; DM Essentials output port (HDBaseT standard compliant) for connection to a DM Essentials receiver, DMPS Essentials switcher, or HDBaseT device; Mirrored with HDMI OUTPUT 1 |
| HDMI OUTPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio output(DVI compatible 4 ); Mirrored with DM 1 |
| DM 2 | (1) 8-pin RJ-45 blue connector, female, shielded; DM Essentials output port (HDBaseT standard compliant) for connection to a DM Essentials receiver, DMPS Essentials switcher, or HDBaseT device; Mirrored with HDMI OUTPUT 2 |
| HDMI OUTPUT 2 | (1) HDMI Type A connector, female; HDMI digital video/audio output(DVI compatible 4 ); Mirrored with DM 2 |
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
| 100-240VAC 1.1-0.4A 50/60 Hz | (1) IEC 60320 C14 mains power inlet; Removable power cord included NOTE: This power connection powers both the HD‑PS402 and the connected DM Essentials receivers. When connected to the HD‑PS402 , the DM Essentials receivers must not be connected to power. 5 |
| G | (1) 6-32 screw, chassis ground lug |
| SERVICE | (1) USB 2.0 Type A connector, female; For firmware loading and configuration management; Can also provide up to 5V, 500mA power to a USB-powered device |
| PWR | (1) Bicolor amber/green LED; Amber indicates that the device is booting; Green indicates that the device is operational |
| AUTO | (1) Push button to enable or disable automatic switching and (1) green LED to indicate that automatic switching is enabled |
| SETUP | (1) Push button and (1) red LED for display or IP address on connected HDMI and DM Essentials outputs |
| INPUT 1-4 | (4) Push buttons for manual input selection and (4) bicolor amber/green LEDs; Amber indicates that a source is detected at the corresponding input but is not routed to an output; Green indicates that the corresponding input is routed to an output |
| OUTPUT 1-2 | (2) Push buttons for manual output selection and (2) bicolor amber/green LEDs; Amber indicates that a display or other destrination device is detected but no video source is routed to the output; Green indicates that the corresponding output is transmitting video to a detected display or other destination device |
| FOLLOW | (1) Push button to enable or disable Follow Output mode and (1) green LED; LED indicates that Follow Output mode is enabled, which causes a selected HDMI input to be routed to HDMI and DM Essentials outputs 1 and 2 simultaneously |
| DM Essentials | (2) LEDs on RJ-45 DM Essentials connectors; Green indicates that a DM Essentials link is established; Flashing amber indicates non‑HDCP video and solid amber indicates HDCP video |
| Main Power | 100-240VAC, 1.1-0.4A, 50/60 Hz NOTE: The AC main power connection powers both the HD‑PS402 and connected DM Essentials receivers. When connected to the HD‑PS402 , the DM Essentials receivers must not be connected to power. 5 |
| Power Consumption | 52 W typical |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 123 BTU/hr typical |
| Acoustic Noise | 32 dBA typical |
| Chassis | Metal, black finish, vented sides |
| Mounting | 1 RU 19 in. rack-mountable (rack ears included) |
| Height | 1.72 in. (44 mm) |
| Width | 17.33 in. (441 mm) without rack ears; 19.00 in. (483 mm) with rack ears (included) |
| Depth | 10.82 in. (275 mm) |
| DM-CBL-ULTRA DM® Ultra Cable | DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher |
Kullanım Alanları
- Kurumsal ve ticari projelerde switcher (matris) çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HD-PS402 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
