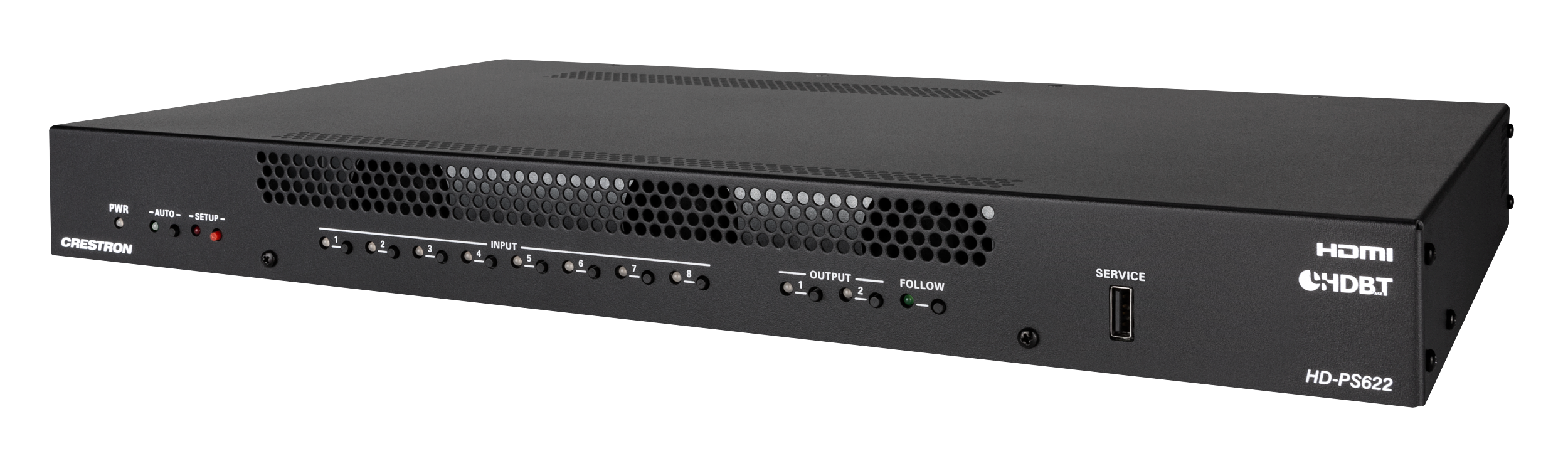

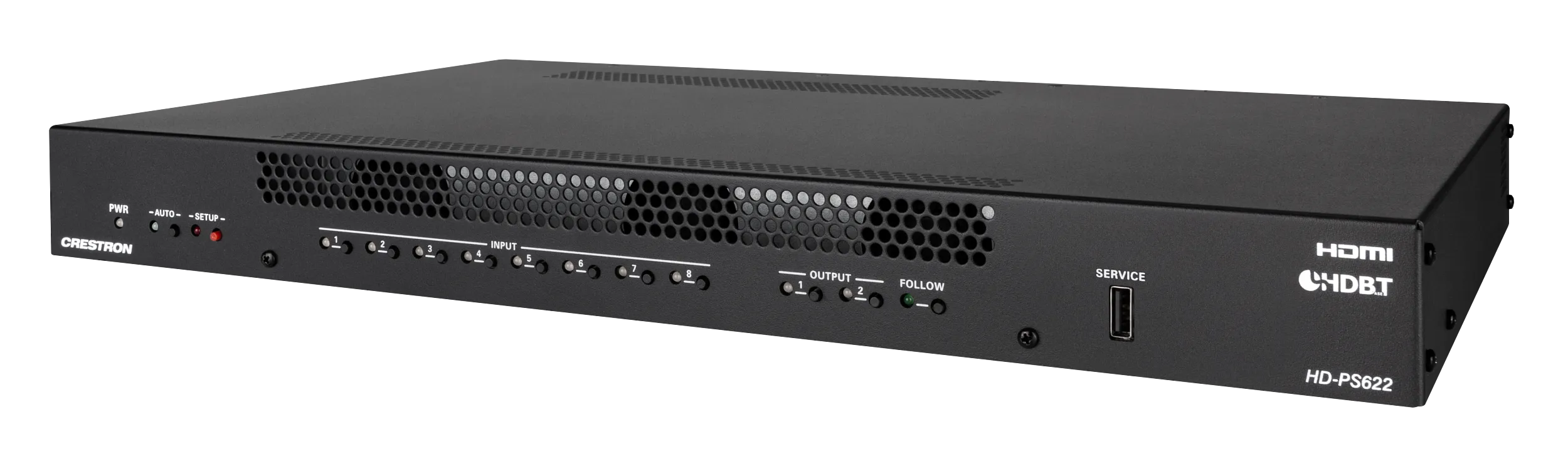

Matris değiştirme ve kullanıma hazır işlevselliğe sahip, yüksek performanslı, rafa monte edilebilir 4K60 4:4:4 sunum sistemi. Altı HDMI® ve iki DM® Essentials girişi, 4K60 ölçekleyicili iki çift yansıtılmış HDMI ve DM Essentials çıkışı ve analog ses girişleri ve çıkışları sağlar. HDR (Yüksek Dinamik Aralık) ve Dolby Vision® video formatları, ses karıştırma, gelişmiş EDID yönetimi, XiO Cloud® bağlantısı ve kurumsal düzeyde güvenlik desteğini içerir.
Teknik Özellikler
| Switcher | 8×2 auto-switching or manual, audio-follows-video, Crestron Auto-Locking® and QuickSwitch HD™ technologies |
|---|---|
| Scaler (mirrored HDMI and DM Essentials outputs) | 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion; Deep Color support; HDR10, HDR10+, and Dolby Vision support; content-adaptive noise reduction; and 3:2/2:2 pull-down detection and recovery |
| Input Signal Types | HDMI (Dual-Mode DisplayPort interface compatible 3 ), DM Essentials |
| Output Signal Types | HDMI, DM Essentials, and HDBaseT with HDR10, HDR10+, and Dolby Vision pass-through support, Deep Color support, and 4K60 4:4:4 support (DVI compatible 4 ) |
| Copy Protection | HDCP 2.3 |
| Audio Inputs | Two mono 1-channel MIC/LINE inputs Six mono 1-channel LINE inputs One stereo 2-channel LPCM audio extracted from the selected HDMI or DM Essentials input source |
| Audio Outputs | One mirrored HDMI 1 and DM Essentials 1 audio output One mirrored HDMI 2 and DM Essentials 2 audio output One AUX 1 output, stereo 2-channel One AUX 2 output, stereo 2-channel |
| Analog-to-Digital Conversion | 24-bit 48 kHz |
| Digital-to-Analog Conversion | 24-bit 48 kHz |
| Formats | Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels |
| Input Signal Type | Mono analog |
| Gain Range | -10 dB to +10 dB in 1 dB increments |
| Phantom Power | +48 VDC, 12 mA, enable or disable per channel |
| Mute | Enable or disable per channel |
| Balanced Line Input Level | 4 Vrms |
| Unbalanced Line Input Level | 2 Vrms |
| Line Input Impedance | >10k ohms |
| Output Signal Type | HDMI |
| Source Gain | -80 dB to +20 dB adjustment range, plus Mute |
| Volume Control | -80 dB to +20 dB adjustment range, plus Mute, Mono, and Stereo |
| Delay | 0 to 150 ms adjustment range |
| Output Signal Type/Format | Stereo 2-channel |
| Frequency Response | ±0.5 dB, 20 Hz to 20 kHz |
| THD+N | <0.005%, 1 kHz, 4 Vrms |
| S/N Ratio | >95 dB, 4 Vrms, 20 Hz to 20 KHz, A‑weighted |
| Crosstalk | >90 dB, 1 KHz, for multiple inputs only |
| Stereo Separation | >80 dB, 20 Hz to 20 kHz |
| Ethernet | (2) LEDs on RJ-45 LAN connector. Link status LED: Green indicates that a 100BASE-TX link is established. Amber indicates that a 1000BASE-T link is established. Ethernet activity LED: Flashing amber indicates Ethernet activity. |
| USB | For firmware loading and configuration management and to power a USB powered device |
| HDMI | HDCP 2.3, EDID, CEC |
| DM Essentials | (2) LEDs on RJ-45 DM Essentials connectors. Green indicates that a DM Essentials link is established. Flashing amber indicates non-HDCP video and solid amber indicates HDCP video. |
| HDBaseT | HDCP 2.3 |
| MIC/LINE CH1-CH2 | (2) 3-pin 3.5 mm detachable terminal blocks; Balanced mono microphone/line audio inputs |
| LINE INPUT CH3-CH8 | (6) 3-pin 3.5 mm detachable terminal blocks; Balanced mono line-level audio inputs |
| AUX OUT 1-2 | (2) 5-pin 3.5 mm detachable terminal blocks; Balanced stereo line-level audio outputs; Output Impedance: <200 Ohms; Maximum Output Level: 4 Vrms balanced |
| HDMI INPUTS 1-6 | (6) 19-pin Type A connector, female; HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface compatible 3 ) |
| DM INPUTS 7-8 | (2) 8-pin RJ-45 yellow connectors, female, shielded; DM Essentials input ports for connection to DM Essentials transmitters 5 |
| DM OUTPUT 1 | (1) 8-pin RJ-45 blue connector, female, shielded; DM Essentials output port (HDBaseT standard compliant) for connection to a DM Essentials receiver, DMPS Essentials switcher, or HDBaseT device 6 ; Mirrored with HDMI OUTPUT 1 |
| HDMI OUTPUT 1 | (1) 19-pin Type A connector, female; HDMI digital video/audio output (DVI compatible 4 ); Mirrored with DM OUTPUT 1 |
| DM OUTPUT 2 | (1) 8-pin RJ-45 blue connector, female, shielded; DM Essentials output port (HDBaseT standard compliant) for connection to a DM Essentials receiver, DMPS Essentials switcher, or HDBaseT device; 6 Mirrored with HDMI OUTPUT 2 |
| HDMI OUTPUT 2 | (1) 19-pin Type A connector, female; HDMI digital video/audio output (DVI compatible 4 ); Mirrored with DM OUTPUT 2 |
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
| 100-240VAC 1.8-0.7A 50/60 Hz | (1) IEC 60320 C14 mains power inlet; Mates with removable power cord, included |
| G | (1) 6-32 screw, chassis ground lug |
| SERVICE | (1) USB 2.0 Type A connector, female; For firmware loading and configuration management; Can also provide up to 5 V 500 mA power to a USB powered device |
| PWR | (1) LED. Amber indicates that the device is booting. Green indicates that the device is operational. |
| AUTO | (1) Push button to enable or disable automatic switching and (1) green LED to indicate that automatic switching is enabled. |
| SETUP | (1) Red LED and (1) push button for display of IP address on connected HDMI and DM Essentials outputs |
| INPUT 1-8 | (8) Push buttons for manual input selection and (8) LEDs. Green indicates that the corresponding input is routed to an output. Amber indicates that a source is detected at the corresponding input but is not routed to an output. |
| OUTPUT 1-2 | (2) Push buttons for manual output selection and (2) LEDs. Green indicates that a display or other destination device is detected and the corresponding output is transmitting video. Amber indicates that a display or other destination device is detected but no video is routed to the corresponding output. |
| FOLLOW | (1) Push button to enable or disable Follow Output mode and (1) LED. Green indicates that Follow Output mode is enabled, which causes the selected HDMI or DM Essentials input to be routed to HDMI and DM Essentials outputs 1 and 2 simultaneously. |
| Mains Power | 100-240VAC 1.8-0.7A 50/60 Hz |
| Power Consumption | 72 W typical |
| Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 164 BTU/hr typical |
| Acoustic Noise | 32 dBA typical |
| Chassis | Metal, black finish, vented sides |
| Mounting | 1 RU 19-inch rack-mountable (rack ears included) |
| Height | 1.72 in. (44 mm) |
| Width | 17.33 in. (441 mm) without rack ears 19.00 in. (483 mm) with rack ears (included) |
| Depth | 10.82 in. (275 mm) |
| Regulatory Model | M202004002 |
| DM-CBL-ULTRA DM® Ultra Cable | DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher |
Kullanım Alanları
- Kurumsal ve ticari projelerde switcher (matris) çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HD-PS622 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
