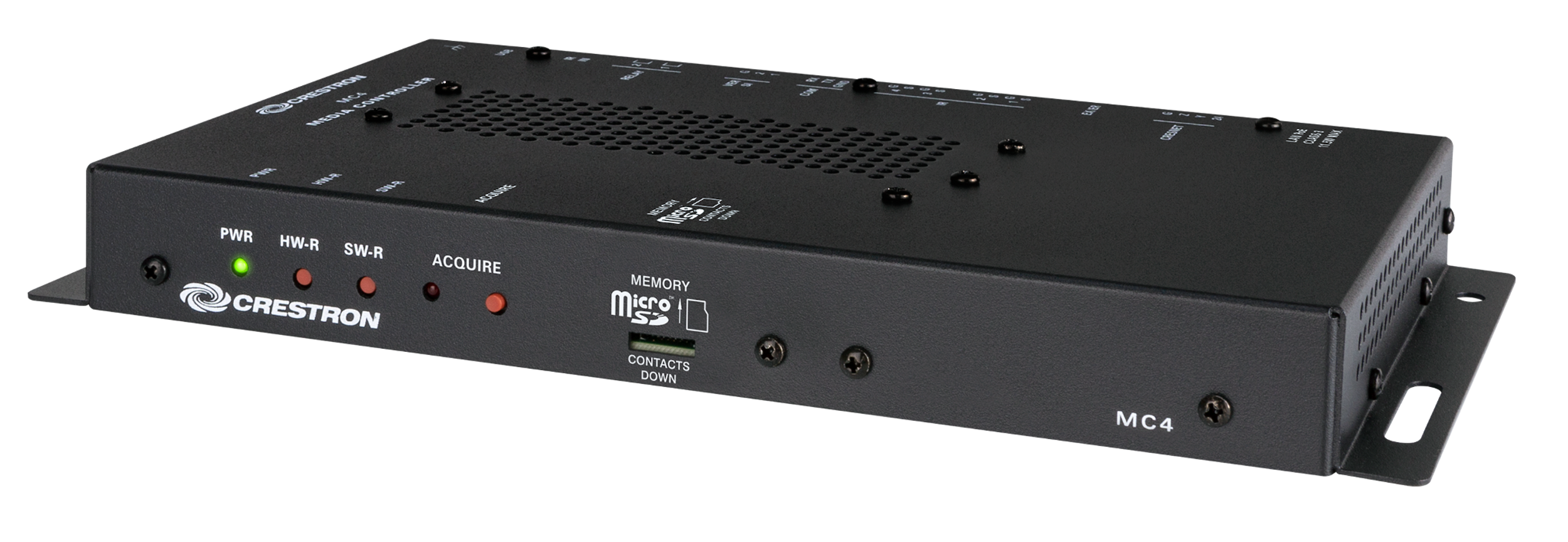

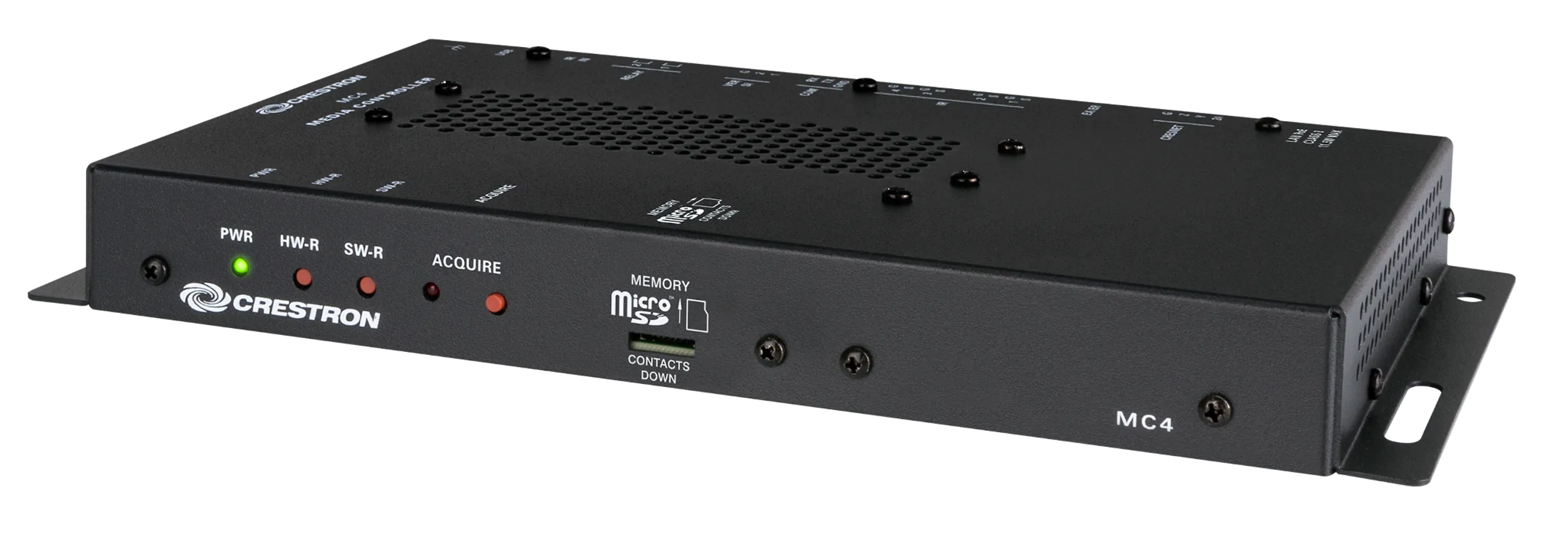

Güvenli, yüksek performanslı, uygun maliyetli bir kontrol işlemcisi ve arayüzü sağlar. Küçük faktör ve düşük profilli kurulumu, onu tek odalı sistemlerde, küçük ve orta büyüklükteki evlerde ve ofislerde ve MDU'larda (çoklu konaklama birimleri) kullanım için mükemmel kılar. infiNET EX® ve ER kablosuz cihazlarını eşleştirmek için yerleşik bir ağ geçidi sağlar.
Teknik Özellikler
| Ethernet | 100/1000 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet™ and IP 3 , IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and Crestron XiO Cloud™ client, SMTP email client |
|---|---|
| Cresnet® Network | Cresnet master mode |
| USB | (1) USB Type A connector, female; USB 2.0 port for storage devices |
| RS-232 | For 2-way device control and monitoring, COM port supports RS 232 up to 115.2k baud with software handshaking |
| IR | Supports 1 way device control via infrared up to 1.2 MHz |
| RF Transceiver | infiNET EX® network 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant |
| Range | 50 ft (15 m) to nearest mesh network device(s), subject to site-specific conditions and individual device capabilities, range between floors or ceilings is limited to one level 2 |
| SDRAM | 1 GB |
| Flash | 8 GB |
| Memory Card | Supports microSD cards up to 32 GB |
| External Storage | Supports USB mass storage devices up to 1 TB |
| MEMORY | (1) microSD memory card slot; Accepts one microSD card up to 32 GB for storage of log files |
| G | (1) 6-32 screw; Chassis ground lug |
| IR IN | (1) 3.5 mm TRS mini phone jack; For connecting CNXRMIRD IR receiver; Allows IR wireless control from Crestron and third‑party remotes using RC‑5 IR commands |
| RELAY (1–2) | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 A, 30 VAC/VDC; MOV arc suppression across contacts |
| VER SI (1–2) | (1) 3-pin 3.5 mm detachable terminal block; Comprises (2) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125 V low/0 and <1.875 V high/1; Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5 V, 2k Ω pull-up resistor per pin |
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; software handshaking support |
| IR (1–4) | (2) 4-pin 3.5 mm detachable terminal blocks; Comprises (4) IR output ports; IR output up to 1.2 MHz; 1-way Serial TTL/RS-232 (0–5 V) up to 115.2k baud IRP2 IR emitters sold separately |
| EX/ER | ( 1) Connection for supplied antenna |
| CRESNET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet master port 1 ; Outputs power to Cresnet devices; See "Power" section below for additional details |
| LAN | (1) Bicolor green/amber and (1) Amber LEDs; Green/amber LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| PWR | (1) Bicolor green/amber LED, indicates operating power is present; Amber indicates that the device is booting and is not yet ready to operate; Green indicates that the device is ready to operate |
| HW-R | (1) Push button, initiates hardware reset |
| SW-R | (1) Push button, initiates software reset |
| ACQUIRE | (1) Recessed push button with red LED, used to set up connections with wireless devices |
| Power Source Options | PoE (Power over Ethernet) |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Available Cresnet Power | 2.5 W |
| Power Consumption | 7 W typical |
| Temperature | 41 to 113 °F (5 to 45 °C) |
| Humidity | 10 to 90% (noncondensing) |
| Heat Dissipation | 24 BTU/hr |
| Chassis | Metal, black finish, with (2) integral mounting flanges; vented top, sides, and bottom |
| Mounting | Freestanding, surface mount, attach to a single rack rail, or 1 RU 19‑in. rack mountable (rack ears included) |
| Height | 1.07 in. (27 mm) |
| Width | 10.15 in. (258 mm) |
| Depth | 5.11 in. (130 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde wall mount çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron MC4 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
