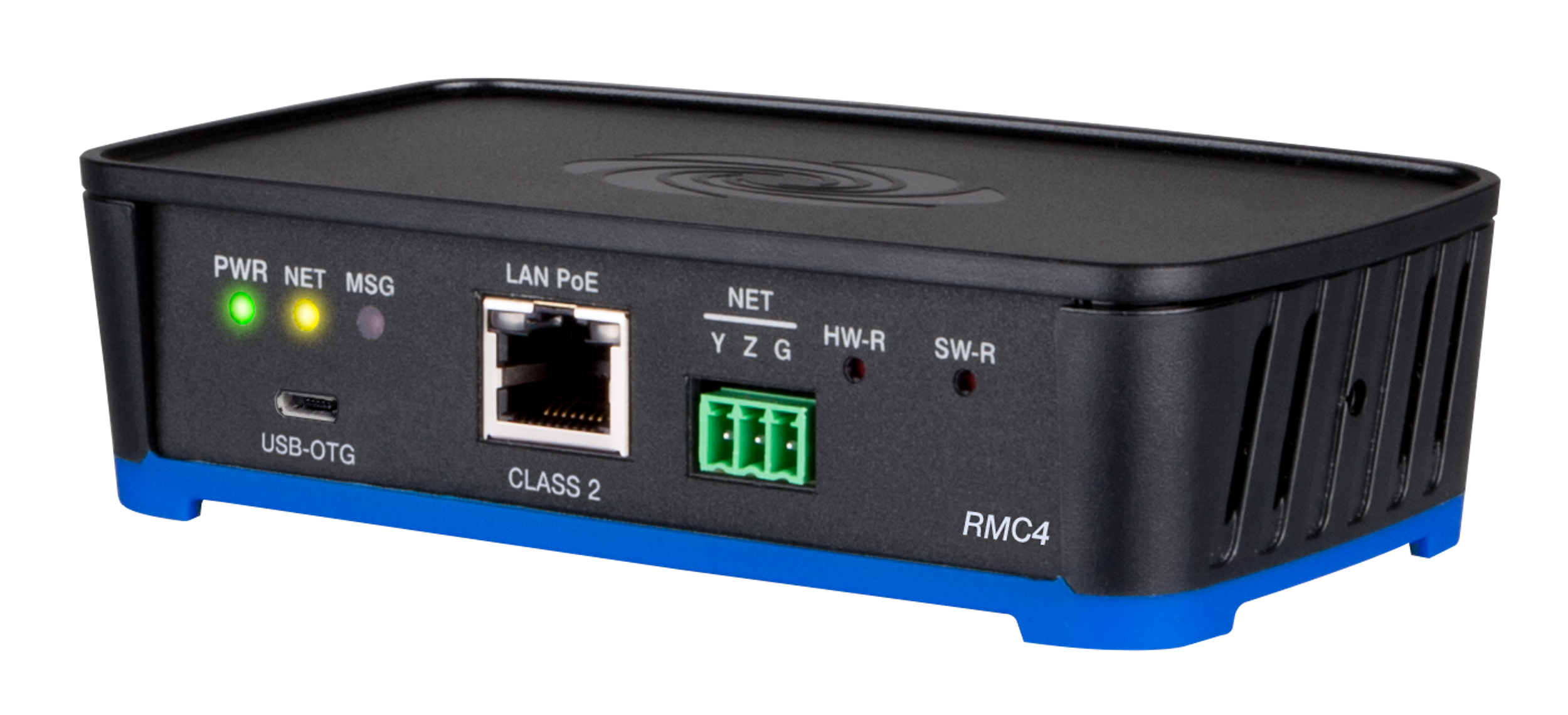

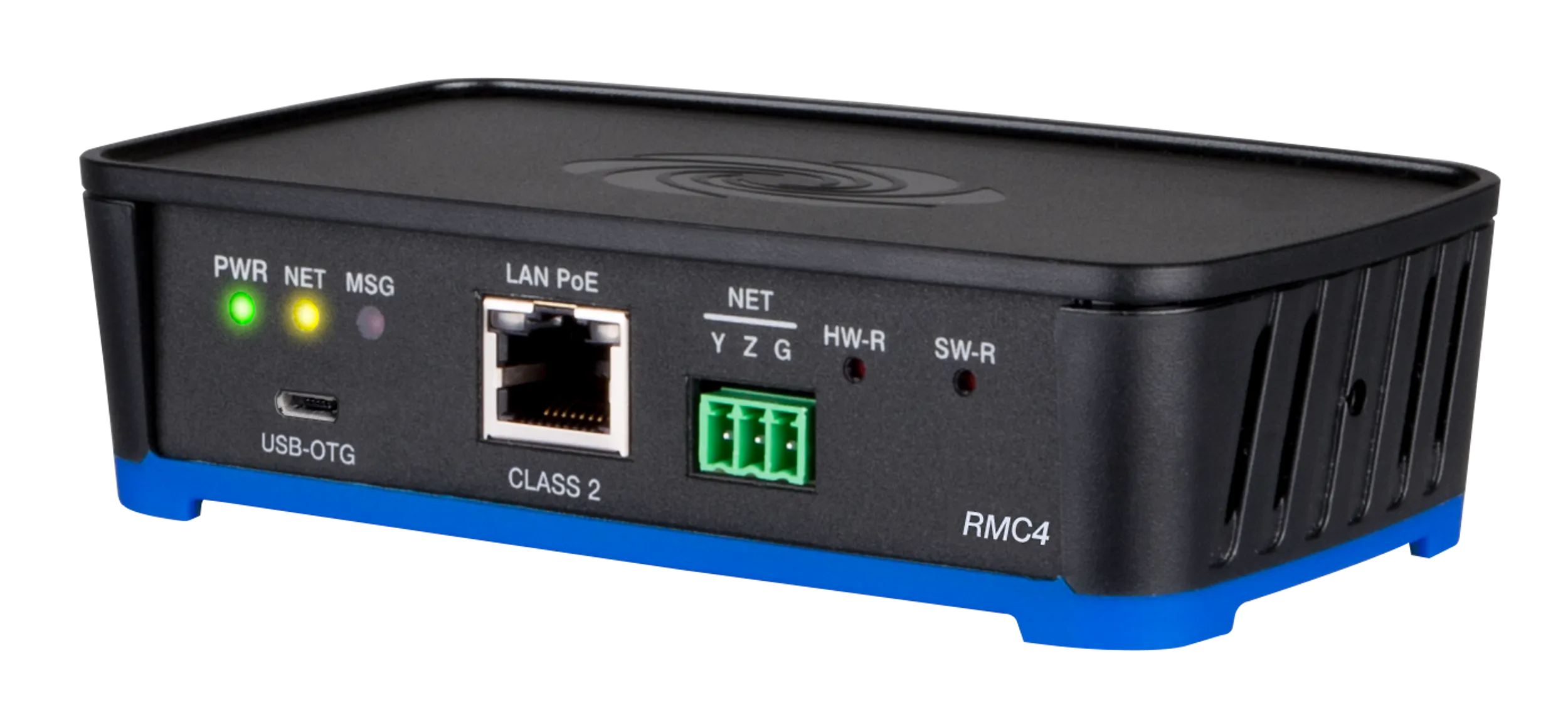

Crestron IFE mikro form faktörünü içeren kompakt bir 4-Serisi™ kontrol sistemi sağlar. PoE aracılığıyla rahatlıkla çalıştırılır ve çeşitli özel uygulamalara uyacak şekilde hemen hemen her yere sığar.
Teknik Özellikler
| Ethernet | 100 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP 3 , IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client |
|---|---|
| Cresnet | Cresnet master mode |
| USB | Supports computer console and USB mass storage class devices via the front panel USB OTG (On‑the‑Go) device port |
| RS-232/422/485 | For 2-way device control and monitoring, supports RS-232, RS-422, or RS-485 up to 115.2k baud with hardware and software handshaking |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud |
| SDRAM | 1 GB |
| Flash | 8 GB |
| External Storage | Supports USB mass storage devices up to 1 TB |
| USB-OTG | (1) USB Type Micro-AB female; USB OTG port for computer console and USB mass storage devices |
| LAN PoE | (1) Green and (1) Amber LEDs; Green LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| DIGITAL IN 1–2 | (1) 3-pin 3.5 mm detachable terminal block; Comprises (2) digital inputs (referenced to GND); Voltage Range: Rated for 0–24 VDC; Input Impedance: 2.2k Ω pulled up to 5 V; Logic Threshold: >2.0 V low/0 and <1.1 V high/1 |
| RELAY 1–2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 A, 30 VAC/VDC; MOV arc suppression across contacts |
| IR 1–2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5 V) up to 115.2k baud; IRP2 IR emitters sold separately |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS‑232/422/485 port; Up to 115.2k baud; Hardware and software handshaking support |
| G | (1) 6-32 screw; Chassis ground lug |
| PWR | (1) Bicolor green/amber LED, indicates operating power is present; Amber indicates that the device is booting and is not yet ready to operate; Green indicates that the device is ready to operate |
| MSG | (1) Red LED, indicates processor has generated an error message |
| HW-R | (1) Recessed push button, initiates hardware reset |
| SW-R | (1) Recessed push button, initiates software reset |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Power Consumption | 6.5 W |
| Temperature | 32 to 104 °F (0 to 40 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 22 BTU/hr |
| Enclosure | IFE micro form factor, black and blue plastic |
| Mounting | Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount; Occupies 8 DIN module spaces (144 mm); Surface/DIN rail mounting bracket included, optional rack mount and pole mount kits sold separately |
| Height | 1.35 in (35 mm); 1.77 in (45 mm) with bracket |
| Width | 5.04 in (128 mm); 5.36 in (137 mm) with bracket |
| Depth | 2.86 in (73 mm) |
Kullanım Alanları
- Kurumsal ve ticari projelerde wall mount çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron RMC4 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
Avelkon, Crestron Türkiye yetkili distribütörüdür. Fiyat ve proje teklifi için iletişime geçin.
