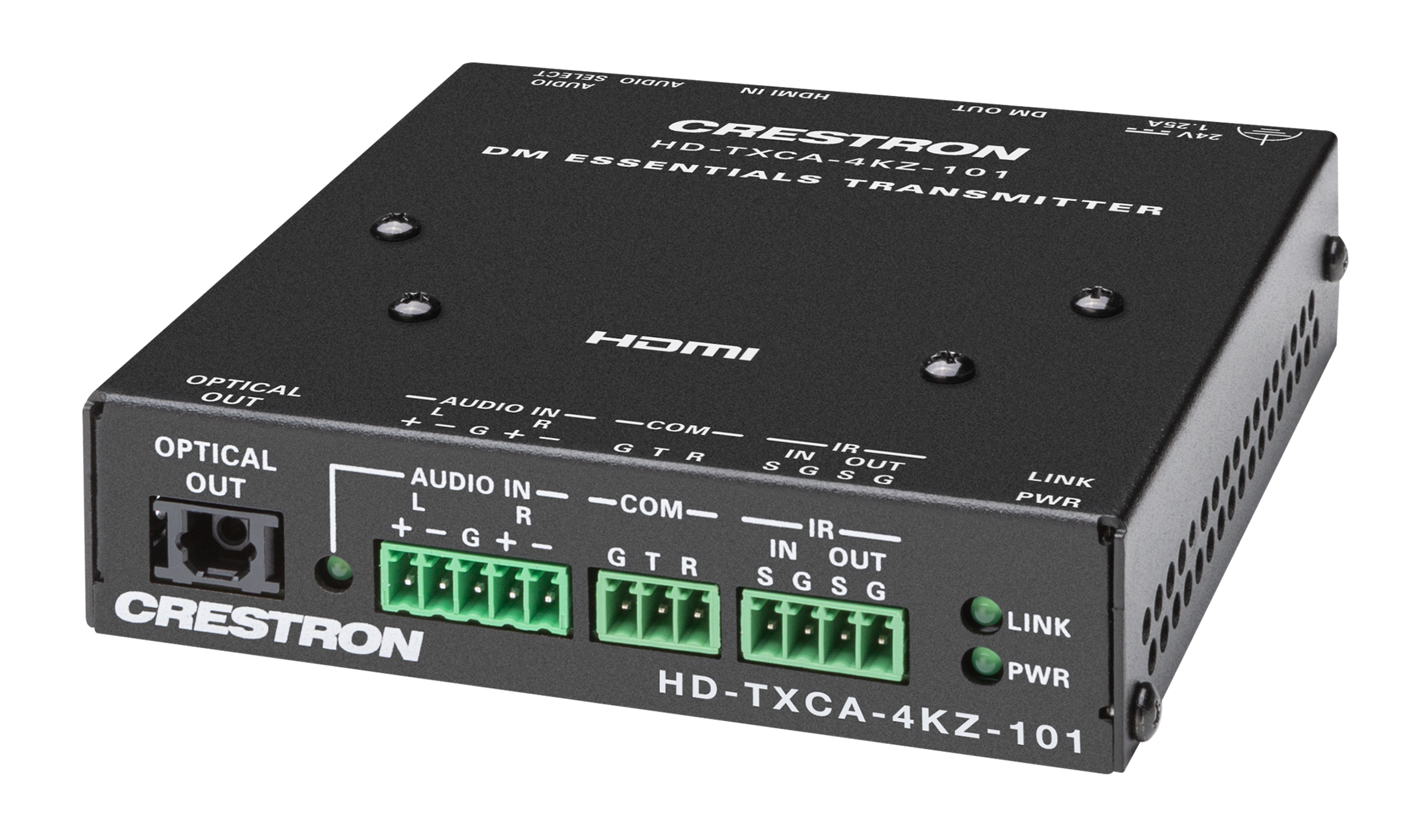

Bir CATx kablosu üzerinden HDMI®, RS-232, IR ve analog ses sinyallerinin noktadan noktaya genişletilmesini sağlamak için DM® Essentials alıcısı veya DMPS Essentials değiştiriciyle birlikte çalışabilirlik. 4K60 4:4:4 videoyu, HDR10+ ve HDCP 2.3'ü destekler.
Teknik Özellikler
| Input Signal Type | HDMI, analog stereo |
|---|---|
| Output Signal Type | DM Essentials, digital S/PDIF optical (TOSLINK® connector) |
| Copy Protection | HDCP 2.3 |
| Resolutions | Common resolutions are listed in the following table. |
| Digital Formats, HDMI | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels |
| Digital Formats, S/PDIF | Dolby Digital, Dolby Digital EX, DTS, DTS‑ES, LPCM up to 6 channels |
| Analog Format | Stereo 2-channel |
| Analog-to-Digital Conversion | 24-bit 48 kHz |
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A‑weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: ≤80 dB |
| HDMI | HDCP 2.3, EDID, CEC pass-through |
| DM Essentials | HDCP 2.3, EDID pass-through |
| RS-232 | 2-way serial pass-through up to 115.2k baud (TD/RD only) |
| IR | Bidirectional IR signal pass-through up to 60 kHz |
| IR IN/OUT | (1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port; IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the DM Essentials receiver; IR OUT is for connection to an IR emitter ( IRP2 , sold separately) and transmits the IR signal from the IR IN port on the DM Essentials receiver; Supports IR up to 60 kHz |
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Passes RS-232 TD/RD data to/from the COM port on a DM Essentials receiver; Supports up to 115.2k baud |
| HDMI IN | (1) Green LED, indicates that the device is receiving an HDMI signal |
| DM OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Essentials link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
| 24V 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included 3 |
| OPTICAL OUT | (1) JIS F05 female (TOSLINK) optical fiber connector; S/PDIF optical digital audio output |
| AUDIO IN | (1) Green LED, indicates that analog audio is selected |
| LINK | (1) Green LED, indicates that a DM Essentials link is established. |
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. |
| AUDIO SELECT | (1) Push button, enables selection of HDMI or analog audio |
| AUDIO, HDMI IN | (1) Green LED, indicates that HDMI audio is selected |
| Power Pack (Included) | Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU 3 |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 20% to 90% RH (non-condensing) |
| Chassis | Metal, black finish, vented sides, 2 mounting brackets included |
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail |
| Height | 4.13 in. (105 mm) |
| Width | 4.18 in. (106 mm) |
| Depth | 1.08 in. (27 mm) |
| DM-CBL-ULTRA DM® Ultra Cable | DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher |
Kullanım Alanları
- Kurumsal ve ticari projelerde transmitter çözümü
- Toplantı odaları, akıllı binalar ve otomasyon sistemlerine entegrasyon
- Profesyonel kurulum ve merkezi yönetim
Sıkça Sorulan Sorular
Crestron HD-TXCA-4KZ-101 Türkiye’de satılıyor mu?
Evet. Avelkon, Crestron Türkiye yetkili distribütörüdür. Stok, fiyat ve proje teklifi için bizimle iletişime geçebilirsiniz.
Teknik destek ve kurulum sağlanıyor mu?
Evet, yetkili distribütör olarak ürün seçimi, kurulum ve satış sonrası destek sunuyoruz.
